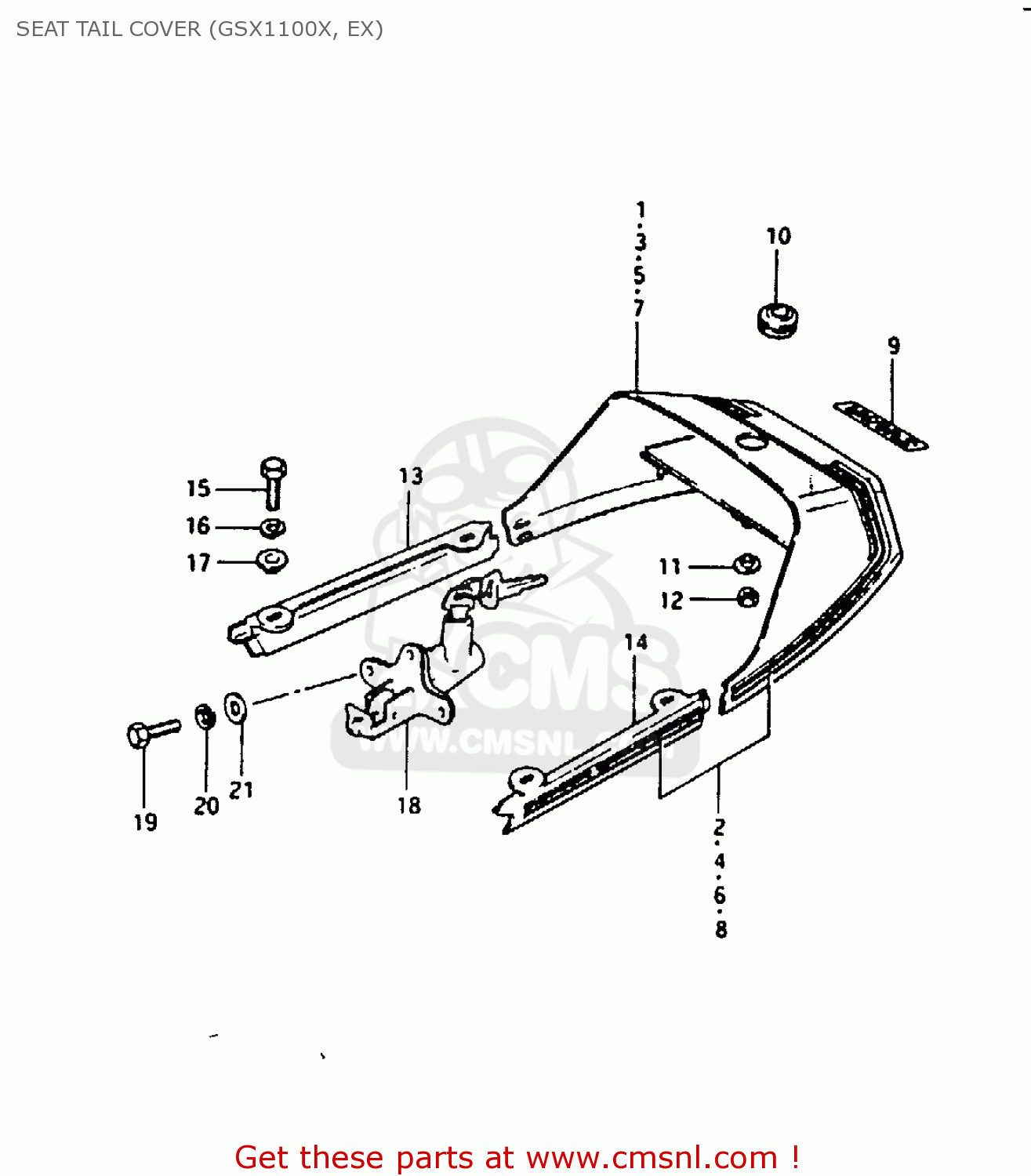

SEAT TAIL COVER (GSX1100X, EX)

ref

part #

description

quantity

1

455004924008E
ref: 1

COVER, SEAT TAIL (BLACK)

€ 149.50

2

681604924076Z
ref: 2

TAPE SET

€ 44.50

3

455004924005H
ref: 3

COVER, SEAT TAIL (BLUE)

€ 149.50

4

681604924076Z
ref: 4

TAPE SET

€ 44.50

5

455004924007P
ref: 5

COVER, SEAT TAIL (RED)

€ 149.50

6

681604924077A
ref: 6

TAPE SET

€ 0.00

7

4550049240737
ref: 7

COVER, SEAT TAIL (SILVER)

€ 149.50

8

681604924076Z
ref: 8

TAPE SET

€ 44.50

9

6816649200998
ref: 9

EMBLEM (GOLD/BLACK)

€ 3.00

10

4552249200
ref: 10

GROMMET,SEAT LOCK HOLE

€ 5.50

11

0916906016
ref: 11

WASHER

€ 1.50

12

0831921068
ref: 12

NUT 6MM

€ 2.00

13-1

451914920008E
ref: 13-1

MOULDING, SEAT RH (BLACK)

€ 38.00

13-2

451914920005H
ref: 13-2

MOULDING, SEAT RH (BLUE)

€ 38.00

13-3

451914920007P
ref: 13-3

MOULDING, SEAT RH (RED)

€ 38.00

13-4

4519149200737
ref: 13-4

MOLDING,SEAT

€ 38.00

14-1

451924920008E
ref: 14-1

MOULDING, SEAT LH (BLACK)

€ 49.00

14-2

451924920005H
ref: 14-2

MOULDING, SEAT LH (BLUE)

€ 49.00

14-3

451924920007P
ref: 14-3

MOULDING, SEAT LH (RED)

€ 49.00

14-4

4519249200737
ref: 14-4

MOLDING,SEAT

€ 49.00

15

0110706128
ref: 15

BOLT

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0916906016
ref: 17

WASHER

€ 1.50

18

9570049830
ref: 18

LOCK SET,SEAT

€ 81.50

19

0110706128
ref: 19

BOLT

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0832211068
ref: 21

WASHER 6MM

€ 2.00

all assemblies
