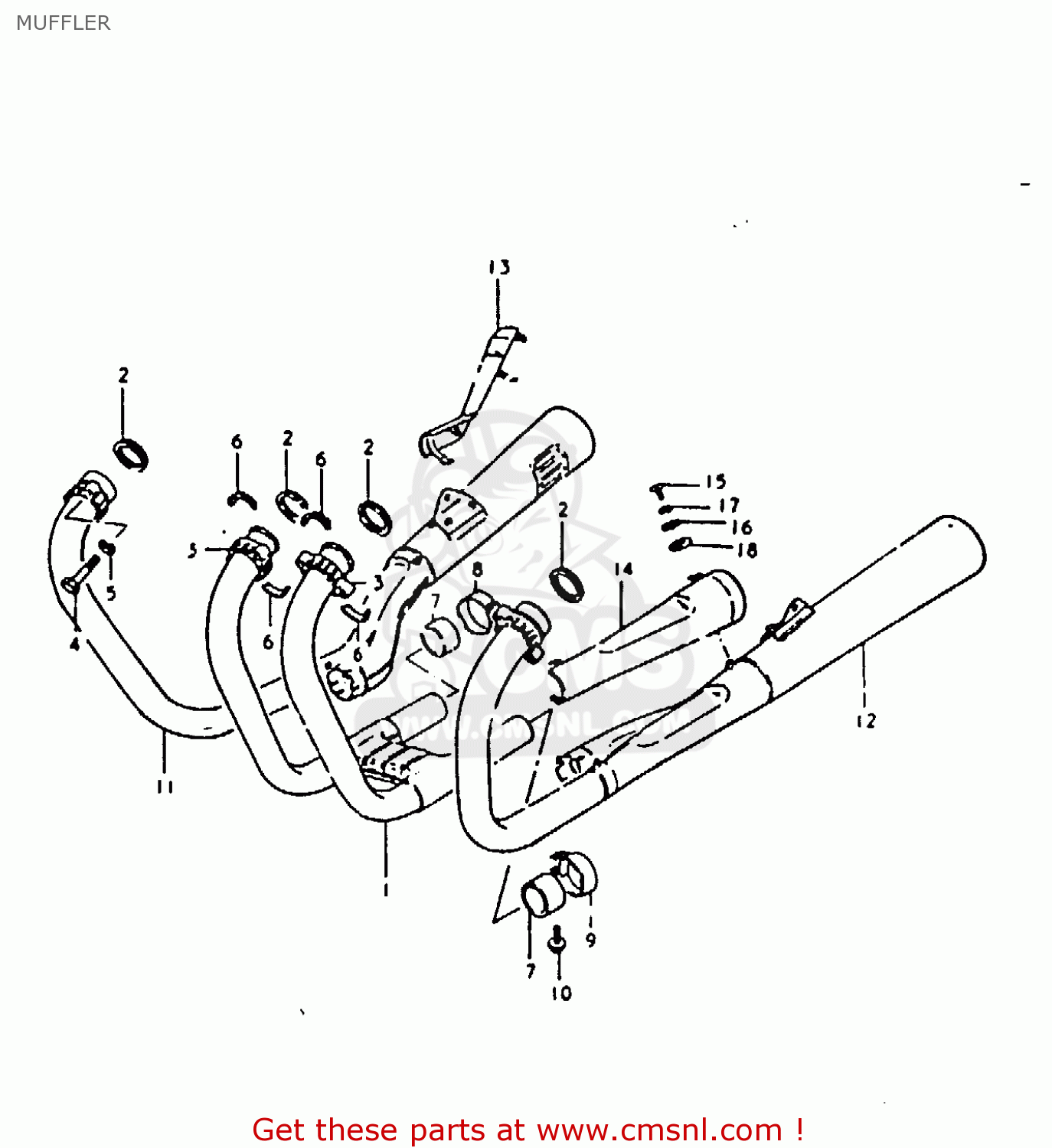

MUFFLER

ref

part #

description

quantity

1

1410049200
ref: 1

PIPE,EXHAUST,CENTER

€ 240.50

2

1418111010
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

1418249000
ref: 3

CLAMP,EXHAUST PIPE

€ 94.50

4

0110708358
ref: 4

BOLT

€ 3.50

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

1415549000A
ref: 6

PLATE,EXHAUST P

€ 9.50

7

1477149001
ref: 7

CONNECTOR,MUFFLER

€ 26.00

8

1445949000
ref: 8

CLAMP,MUFFLER CONNECTOR,R

€ 25.50

9

1446949000
ref: 9

CLAMP,MUFFLER CONNECTOR,L

€ 25.50

10

0151708258
ref: 10

BOLT

€ 2.50

11-1

1430149200
ref: 11-1

MUFFLER, RH

€ 546.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-3

NOTUSED
ref: 11-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-1

1430249200
ref: 12-1

MUFFLER, LH

€ 469.50

12-2

NOTUSED
ref: 12-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-3

NOTUSED
ref: 12-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13-1

1478049200
ref: 13-1
MODEL T, TO 14780-49

COVER,MUFFLER

€ 74.50

13-2

1478049201
ref: 13-2
MODEL T, X

COVER,MUFFLER

€ 74.50

14-1

1479049200
ref: 14-1
MODEL T, TO 14790-49

COVER,MUFFLER

€ 60.00

14-2

1479049201
ref: 14-2
MODEL T, X

COVER,MUFFLER

€ 60.00

15

0211205108
ref: 15

SCREW

€ 2.00

16

0832221058
ref: 16

WASHER

€ 2.50

17

0832121058
ref: 17

LOCK WASHER

€ 2.00

18

0916806005
ref: 18

GASKET 6.2X12X1.5 (MCA)

€ 2.00
