FRAME COVER (GSX1100X, EX)

GSX1100 1981 (X) GENERAL EXPORT (E01)

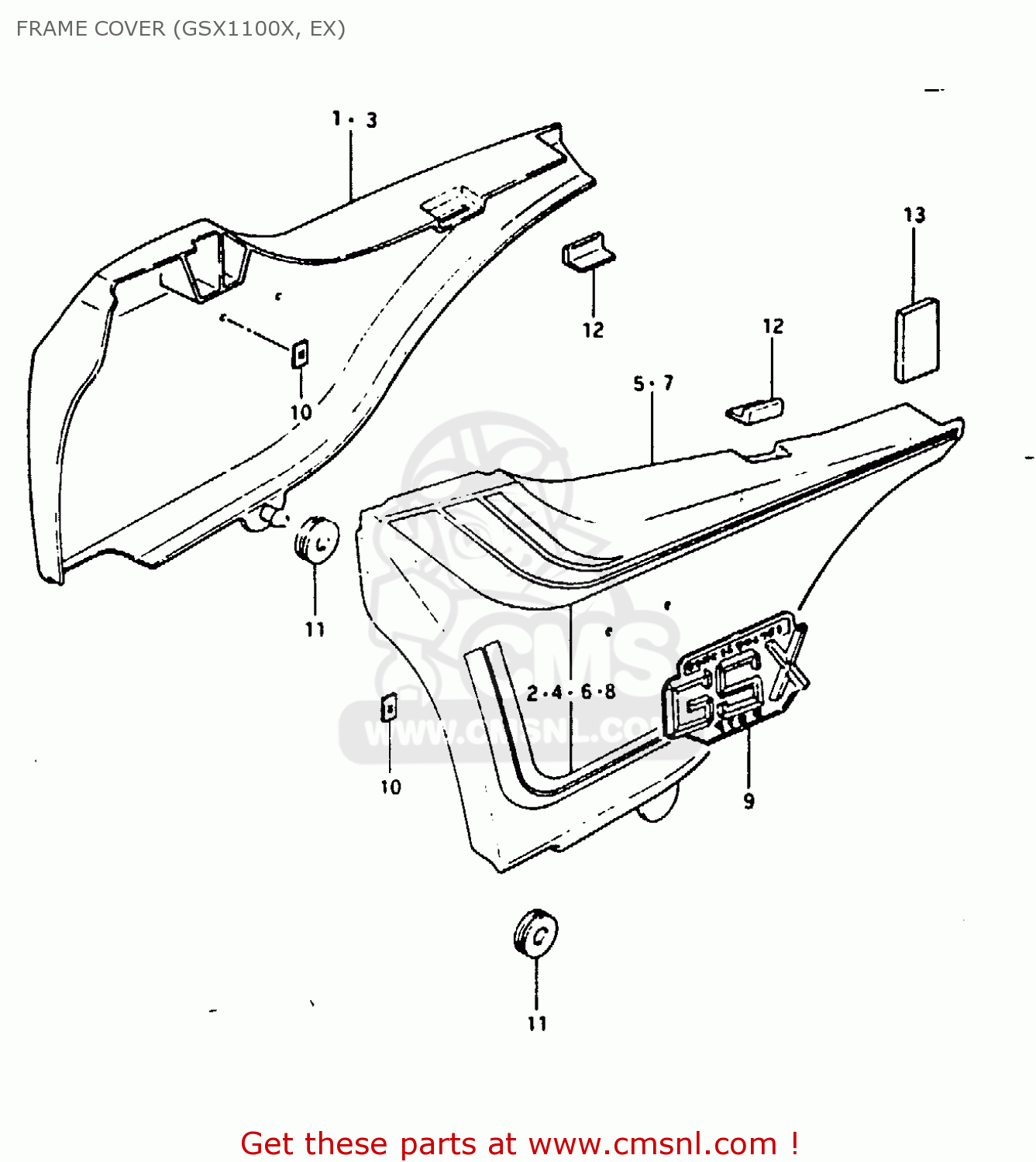

Frame cover (gsx1100x, ex) diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

FRAME COVER (GSX1100X, EX) GSX1100 1981 (X) GENERAL EXPORT (E01)

FRAME COVER (GSX1100X, EX) GSX1100 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

471004989008E
ref: 1-1

COVER, FRAME RH (BLACK)

€ 94.00

1-2

4710049890737
ref: 1-2

COVER, FRAME RH (SILVER)

€ 94.00

1-3

471004989005H
ref: 1-3

COVER, FRAME RH (RED)

€ 94.00

2

681304924076Z
ref: 2

TAPE SET, RH

€ 23.00

3

471004989007P
ref: 3

COVER, FRAME RH (RED)

€ 94.00

4

681304924077A
ref: 4

TAPE, RH

€ 0.00

5-1

472004989008E
ref: 5-1

COVER, FRAME LH (BLACK)

€ 69.50

5-2

4720049890737
ref: 5-2

COVER, FRAME LH (SILVER)

€ 69.50

5-3

472004989005H
ref: 5-3

COVER, FRAME LH (BLUE)

€ 69.50

6

681404924076Z
ref: 6

TAPE SET, LH

€ 22.50

7

472004989007P
ref: 7

COVER, FRAME LH (RED)

€ 69.50

8

681404924077A
ref: 8

TAPE, LH

€ 0.00

9

6813149210
ref: 9

EMBLEM,FRAME COVER

€ 22.00

10

0914803002
ref: 10

NUT

€ 3.00

11

0932008018
ref: 11

CUSHION

€ 4.00

12

4711702400
ref: 12

CUSHION,FRAME COVER

€ 2.00

13

4711349200
ref: 13

RUBBER,FRAME COVER

€ 2.50
