CAM SHAFT - VALVE

GSX1100 1981 (X) GENERAL EXPORT (E01)

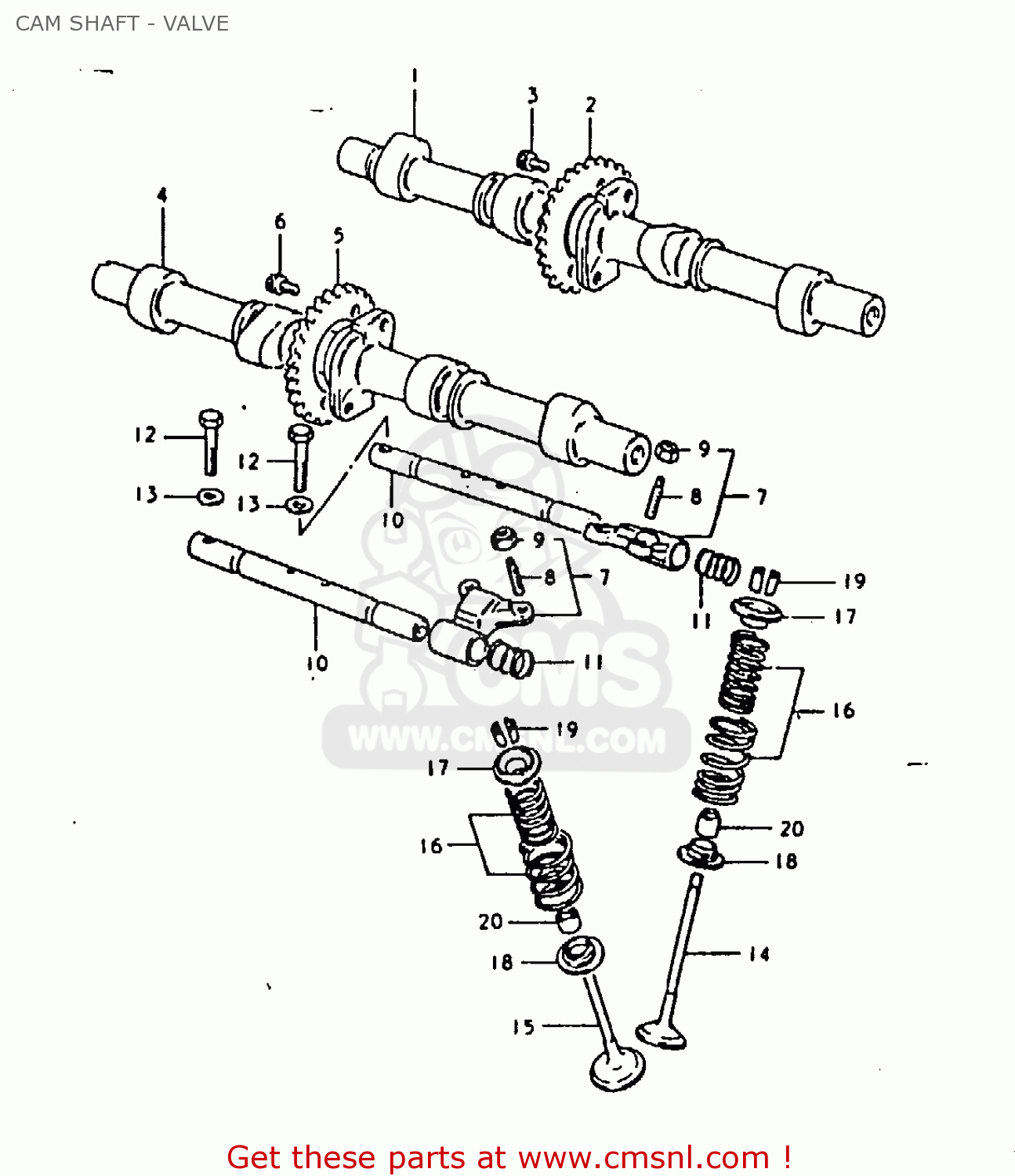

Cam shaft - valve diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX1100 1981 (X) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX1100 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1271149200
ref: 1

CAMSHAFT

€ 228.50

2

1274145110
ref: 2

SPROCKET,CAMSHAFT

€ 0.00

3

0910606024
ref: 3

BOLT 6X11

€ 2.50

4

1272149200
ref: 4

CAMSHAFT,EXHAUST

€ 268.50

5

1275147001
ref: 5

SPROCKET,EXHAUST CAMSHAFT

€ 24.50

6

0910606024
ref: 6

BOLT 6X11

€ 2.50

7

1284049200
ref: 7

ARM,VALVE ROCKER

€ 77.00

8

1284249210
ref: 8
FROM 12842-49200

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284349210
ref: 9
FROM 12843-49200

NUT,ADJUSTING

€ 3.00

10

1286049200
ref: 10

SHAFT,VALVE ROCKER

€ 33.50

11

0944013014
ref: 11

SPRING

€ 2.50

12-1

0910006093
ref: 12-1
MODEL T

BOLT

€ 2.50

12-2

0110706308
ref: 12-2
MODEL X

BOLT

€ 2.50

13

0832221068
ref: 13

WASHER

€ 2.00

14

1291149220
ref: 14

VALVE,INTAKE

€ 27.50

15

1291249220
ref: 15

VALVE,EXHAUST

€ 48.00

16

1290049810
ref: 16

SHIM,TAPPET

€ 16.00

17

1293149200
ref: 17

RETAINER,VALVE SPRING

€ 5.50

18

1293349200
ref: 18

SEAT,VALVE SPRING

€ 4.50

19

1293249200
ref: 19

COTTER VALVE

€ 2.50

20

0928905003
ref: 20

OIL SEAL

€ 6.50
