Buy Suzuki GSX Parts Online


CHAIN CASE - REAR SHOCK ABSORBER

GSX1100 1981 (X) GENERAL EXPORT (E01)

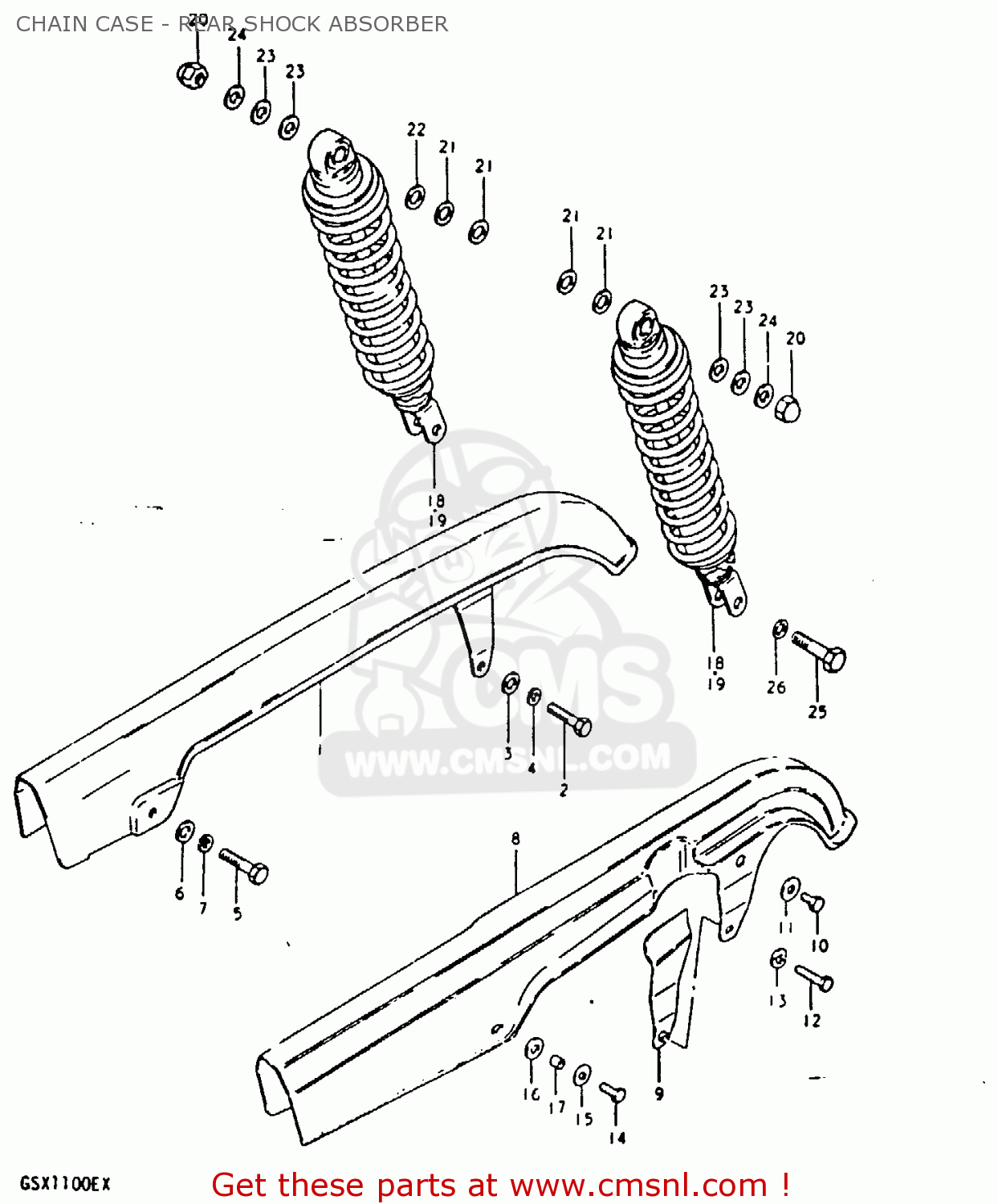

Chain case - rear shock absorber diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

CHAIN CASE - REAR SHOCK ABSORBER GSX1100 1981 (X) GENERAL EXPORT (E01)
CHAIN CASE - REAR SHOCK ABSORBER GSX1100 1981 (X) GENERAL EXPORT (E01)
CHAIN CASE - REAR SHOCK ABSORBER GSX1100 1981 (X) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6131049200
ref: 1
GSX1100ET, EX
CHAIN CASE
6131049200
€ 103.50
2
0110706258
ref: 2
GSX1100ET, EX
BOLT
€ 2.00
3
0832221068
ref: 3
GSX1100ET, EX
WASHER
0832221068
€ 2.00
4
0832121068
ref: 4
GSX1100ET, EX
LOCK WASHER
0832121068
€ 2.50
5
0110706128
ref: 5
GSX1100ET, EX
BOLT
0110706128
€ 2.00
6
0916006007
ref: 6
GSX1100ET, EX
WASHER
0916006007
€ 2.00
7
0832121068
ref: 7
GSX1100ET, EX
LOCK WASHER
0832121068
€ 2.50
8-1
6131149001019
ref: 8-1
GSX1100T, X MODEL T
CASE,CHAIN
€ 121.00
8-2
6131149002019
ref: 8-2
GSX1100T, X MODEL X
CASE,CHAIN
6131149002019
€ 121.00
9
6138145000
ref: 9
GSX1100T, X
REINFORCEMENT,CHAIN CASE
6138145000
€ 42.00
10
0910006011
ref: 10
GSX1100T, X
BOLT(6X8)
0910006011
€ 2.50
11
0916906010
ref: 11
GSX1100T, X
WASHER
0916906010
€ 3.00
12
0110706258
ref: 12
GSX1100T, X
BOLT
€ 2.00
13
0832121068
ref: 13
GSX1100T, X
LOCK WASHER
0832121068
€ 2.50
14
0110706108
ref: 14
GSX1100T, X
BOLT
€ 2.00
15
0916006028
ref: 15
GSX1100T, X
WASHER(6.5X18X1)
0916006028
€ 1.50
16
0932008005
ref: 16
GSX1100T, X
CUSHION
€ 2.00
17
0918006032
ref: 17
GSX1100T, X
SPACER (6.1X8X5.2)
0918006032
€ 2.50
18-1
6210049200
ref: 18-1
MODEL T
SHOCK ABSORBER, REAR
€ 148.50
18-2
6210049211
ref: 18-2
MODEL X
SHOCK ABSORBER, REAR
€ 0.00
19-1
6210049210
ref: 19-1
GSX1100ET ~F.NO.5051
SHOCK ABSORBER, REAR
6210049210
€ 148.50
19-2
6210049211
ref: 19-2
GSX1100ET F.NO. 5051
SHOCK ABSORBER, REAR
€ 0.00
20
0831311108
ref: 20
NUT, LOWER LH
0831311108
€ 2.50
21
0832211128
ref: 21
WASHER
0832211128
€ 2.00
22
0916012012
ref: 22
12.5*24*3.2
WASHER (12.5X24X3.2)
0916012012
€ 2.50
23
0916010001
ref: 23
WASHER
0916010001
€ 2.00
24
0916010033
ref: 24
WASHER(10.5X24X3.2)
0916010033
€ 2.00
25
0910410002
ref: 25
BOLT(10X36)
0910410002
€ 4.50
26
0832211108
ref: 26
WASHER
€ 2.50
