CYLINDER

GSX1100 1981 (X) GENERAL EXPORT (E01)

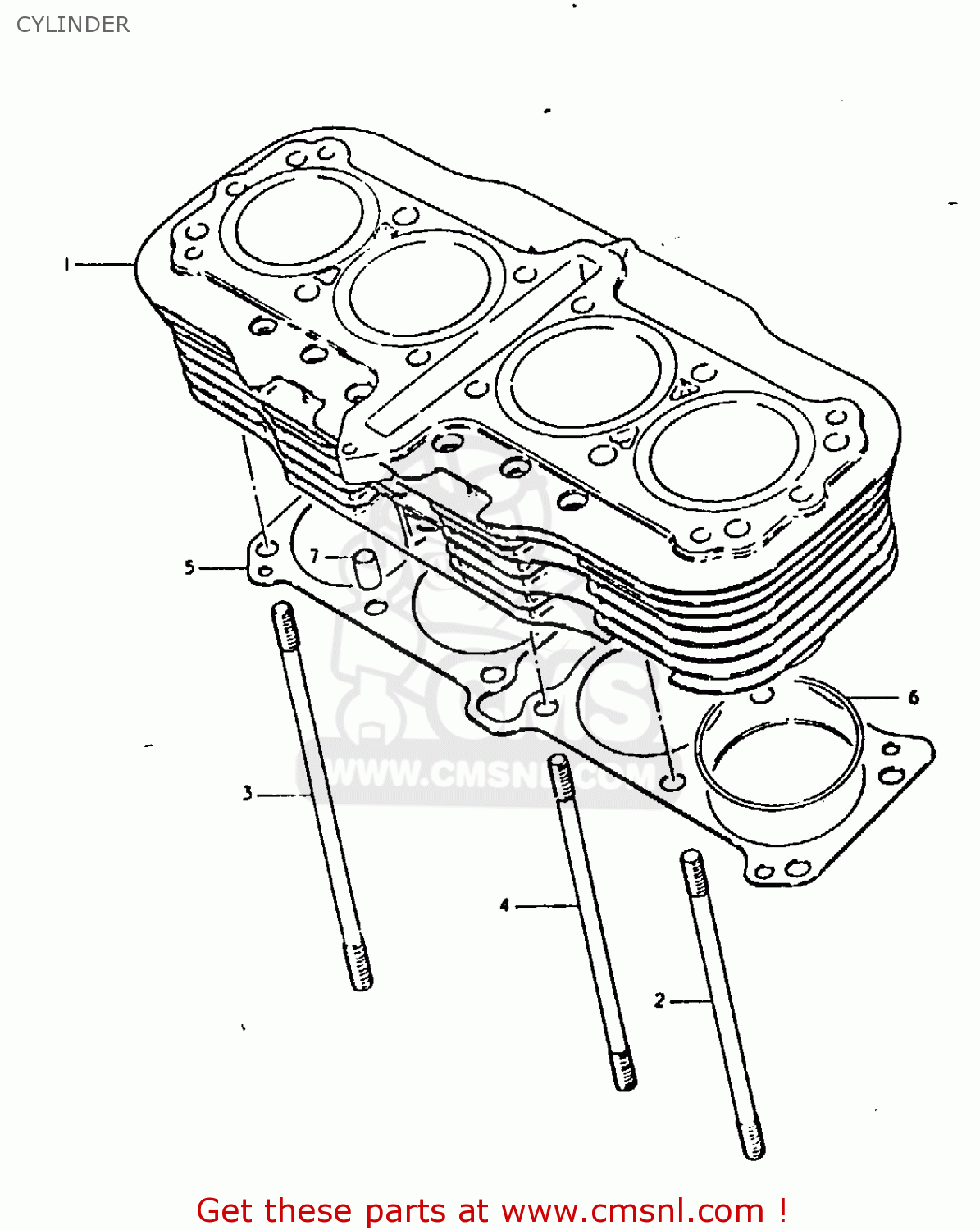

Cylinder diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

CYLINDER GSX1100 1981 (X) GENERAL EXPORT (E01)

CYLINDER GSX1100 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121049200
ref: 1

CYLINDER

€ 974.50

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

0910810030
ref: 4

BOLT,STUD

€ 7.50

5

1124149200
ref: 5

GASKET,CYLINDER (MCA)

€ 39.00

6

0928074002
ref: 6

O RING(D:2,ID:74)

€ 6.00

7-1

0920613006
ref: 7-1
MODEL T

PIN

€ 9.00

7-2

0920613008
ref: 7-2
MODEL X

PIN

€ 9.00
