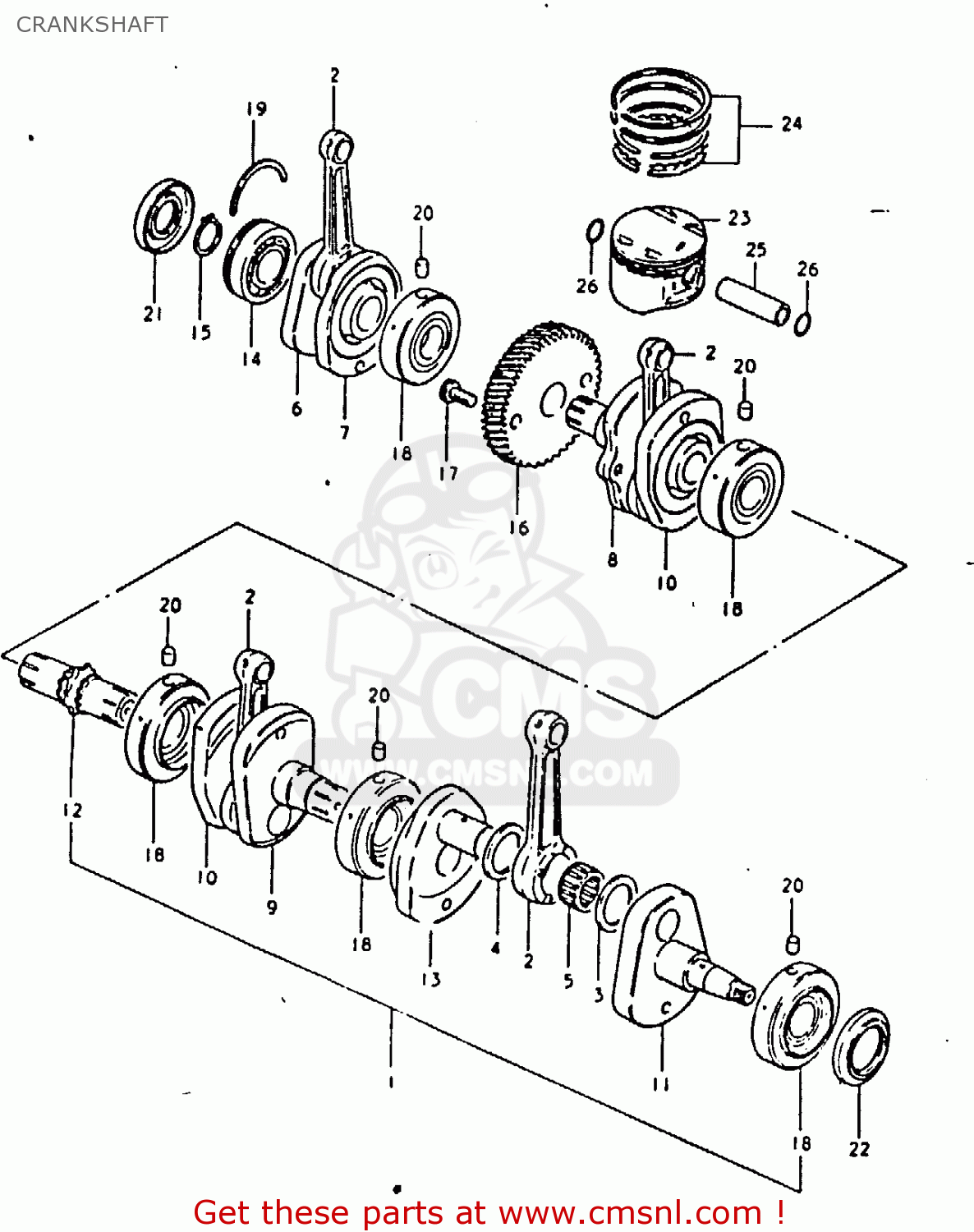

CRANKSHAFT

ref

part #

description

quantity

1-1

1220049201
ref: 1-1

CRANKSHAFT ASSEMBLY

€ 3,492.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

1216149201
ref: 2

CONNECTING ROD

€ 184.50

3

0916031002
ref: 3

WASHER(31X48.5X1)

€ 7.00

4

0916031003
ref: 4

WASHER(31X48.5X2)

€ 11.50

5

0926331004
ref: 5

BEARING(31X39X21)

€ 53.00

6

1222049202
ref: 6

CRANKSHAFT,RIGHT

€ 153.00

7

1223049201
ref: 7

WEB,CRANK

€ 218.00

8

1224149202
ref: 8

CRANKSHAFT

€ 153.00

9

1227149202
ref: 9

CRANKSHAFT,MIDDLE,LEFT

€ 89.50

10

1225049201
ref: 10

WEB,CRANK,MIDDLE

€ 153.00

11-1

1226149203
ref: 11-1

CRANKSHAFT,LEFT

€ 216.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

1228149200
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 93.50

13

1229049201
ref: 13

WEB,CRANK,LEFT

€ 228.50

14

0926230033
ref: 14

BEARING(30X72X19)

€ 47.00

15

0833111308
ref: 15

CIRCLIP,30MM

€ 3.00

16

2111149002
ref: 16

GEAR,PRIMARY DRIVE

€ 56.50

17

0910608006
ref: 17

BOLT

€ 3.00

18

0926432005
ref: 18

BEARING

€ 138.00

19

0939072004
ref: 19

C RING

€ 3.00

20

0422107129
ref: 20

PIN

€ 1.50

21

0928330021
ref: 21

SEAL,OIL(30X72X11)

€ 22.00

22

0928948002
ref: 22

SEAL,OIL(47.3X60X6.5)

€ 12.00

23-1

1211149201
ref: 23-1
MODEL T

PISTON

€ 1,114.50

23-2

1211149202
ref: 23-2
MODEL X

PISTON

€ 1,114.50

23-3

1211149201050
ref: 23-3
MODEL T

PISTON

€ 640.00

23-4

1211149202050
ref: 23-4
MODEL X

PISTON

€ 640.00

23-5

1211149201100
ref: 23-5
MODEL T

PISTON

€ 104.00

23-6

1211149202100
ref: 23-6
MODEL X

PISTON

€ 104.00

24-1

1214049220
ref: 24-1

RING SET,PISTON

€ 67.00

24-2

1214049220050
ref: 24-2

RING SET,PISTON (OS:0.5)

€ 59.00

24-3

1214049220100
ref: 24-3

RING SET,PISTON (OS:1.0)

€ 38.50

25

1215149202
ref: 25

PIN,PISTON

€ 15.00

26

0938118002A
ref: 26

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
