HEADLAMP (E2)

GSX1100 1981 (X) GENERAL EXPORT (E01)

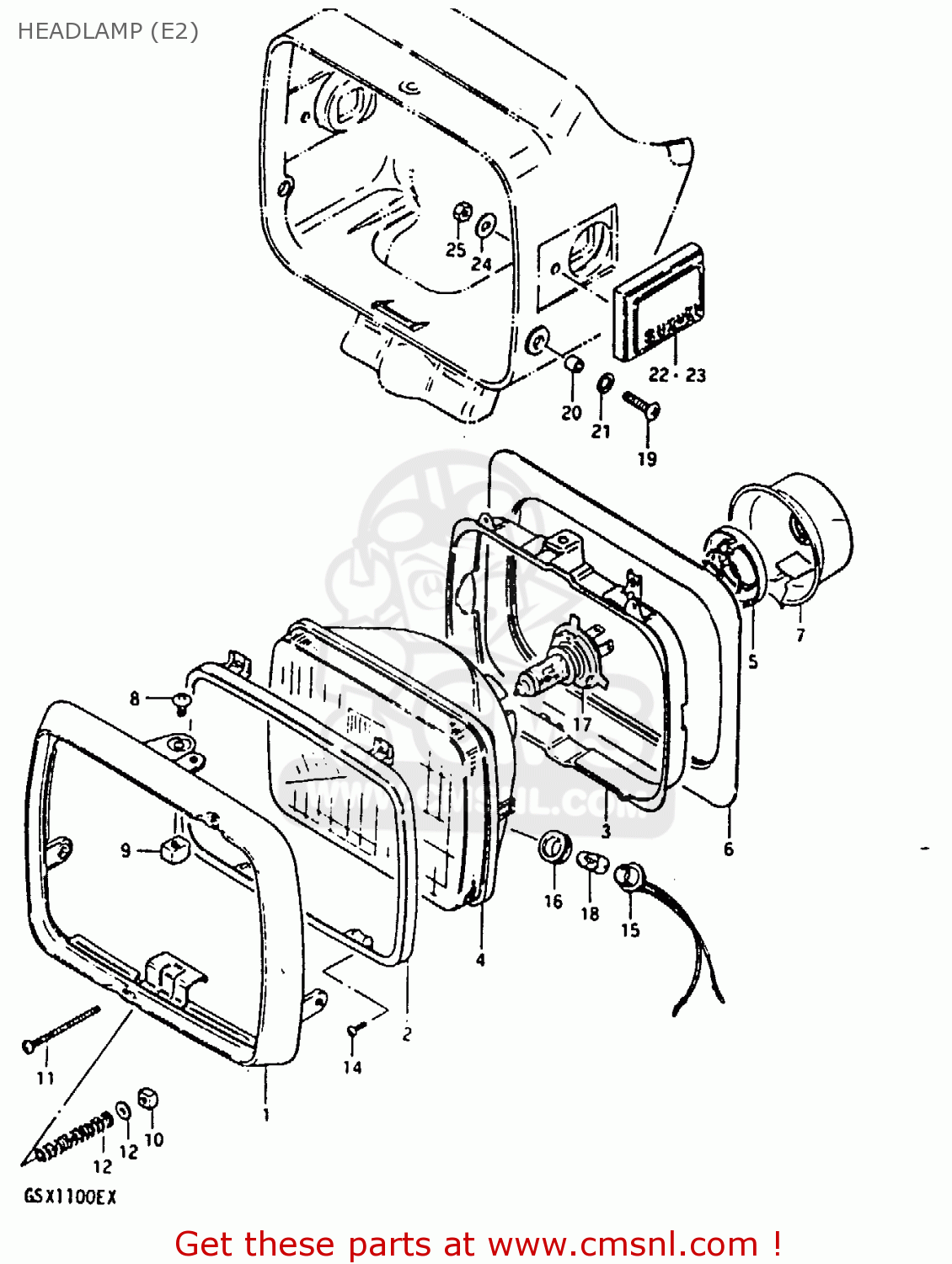

Headlamp (e2) diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

HEADLAMP (E2) GSX1100 1981 (X) GENERAL EXPORT (E01)

HEADLAMP (E2) GSX1100 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

3510049220999
ref: 0

HEADLAMP ASSY

€ 0.00

1

3511149200
ref: 1

RIM

€ 83.00

2

3512749200
ref: 2

RETAINER,HEADLAMP

€ 20.00

3

3513049200
ref: 3

RING,HEADLAMP UNIT

€ 31.50

4

3512149220
ref: 4

UNIT

€ 175.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3512949200
ref: 6

SHADE

€ 20.50

7

3517349200
ref: 7

COVER,HEADLAMP SOCKET

€ 12.50

8

0211205128
ref: 8

SCREW

€ 2.50

9

3515249200
ref: 9

NUT,HEADLAMP ADJUSTER

€ 3.00

10

3513545600
ref: 10

NUT

€ 3.00

11

3515149200
ref: 11

SCREW,HEADLAMP ADJUST

€ 4.00

12

3515748510
ref: 12

WASHER

€ 2.50

13

3515449200
ref: 13

SPRING

€ 3.50

14

0211203088
ref: 14

SCREW

€ 1.50

15

3611830691
ref: 15

SOCKET

€ 12.00

16

3611622630
ref: 16

JOINT,RUBBER

€ 5.00

17

0947112060
ref: 17
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0214205167
ref: 19

SCREW

€ 1.50

20

0918005012
ref: 20

SPACER (5.2X8X7.5)

€ 2.50

21

0916808011
ref: 21

GASKET(8.2X12X0.8) (NAS)

€ 2.00

22

3599349200
ref: 22

EMBLEM, FRONT SIDE RH

€ 28.50

23

3599449200
ref: 23

EMBLEM, FRONT SIDE LH

€ 22.50

24

0916005013
ref: 24

WASHER(5.2X16X1)

€ 1.50

25

0831011058
ref: 25

NUT

€ 2.50
