BATTERY

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

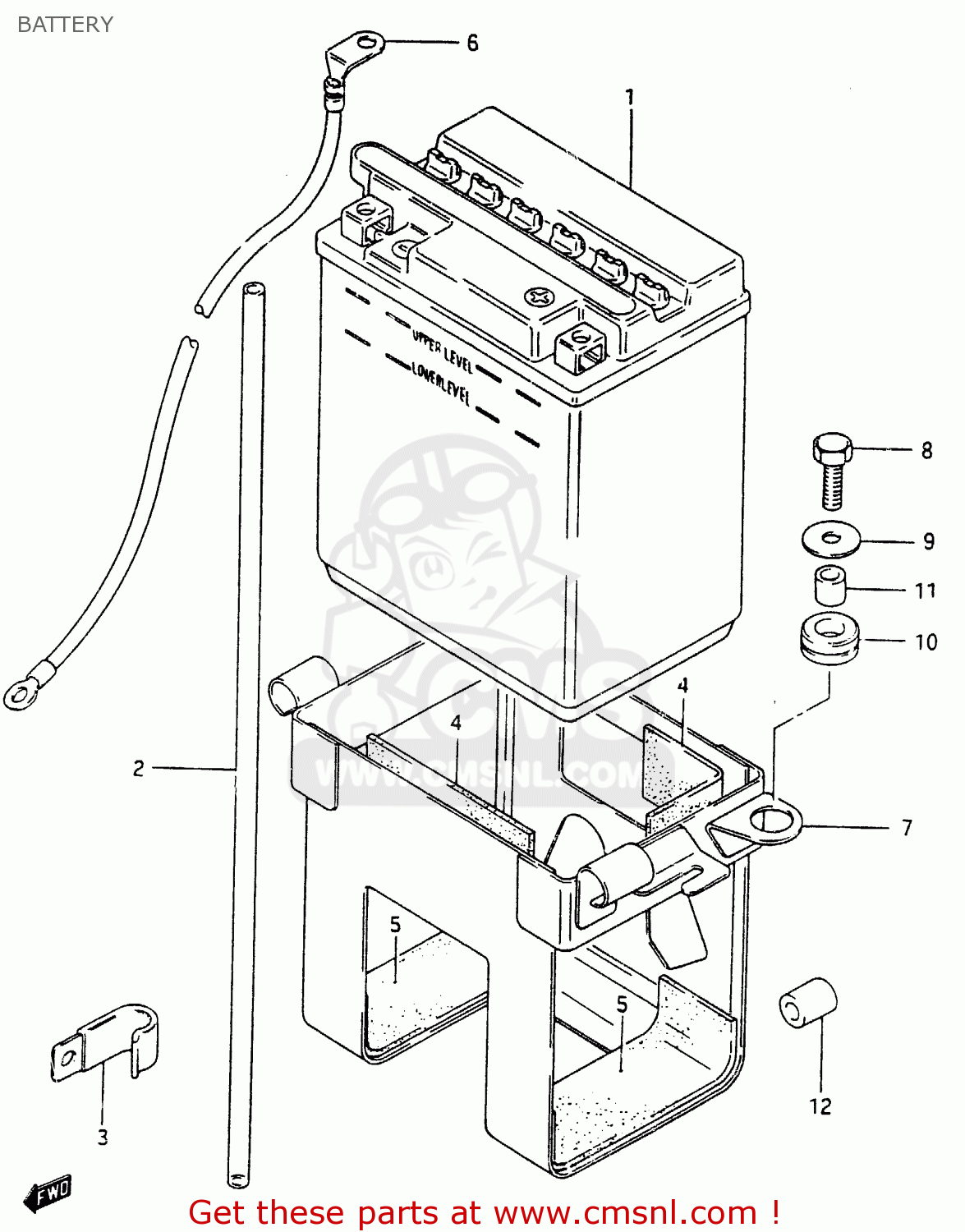

Battery diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

0940309303
ref: 3

CLAMP

€ 5.50

3365234000
ref: 4

PROTECTOR(30X80X2)

€ 4.50

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3385031300
ref: 6
TO 33850-38420

WIRE,STARTER MOTOR LEAD

€ 15.00

4154031300
ref: 7

HOLDER,BATTERY

€ 33.50

0912806005
ref: 8

SCREW

€ 2.50

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

0932905006
ref: 12

CUSHION

€ 2.00
