SIGNAL GENERATOR

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

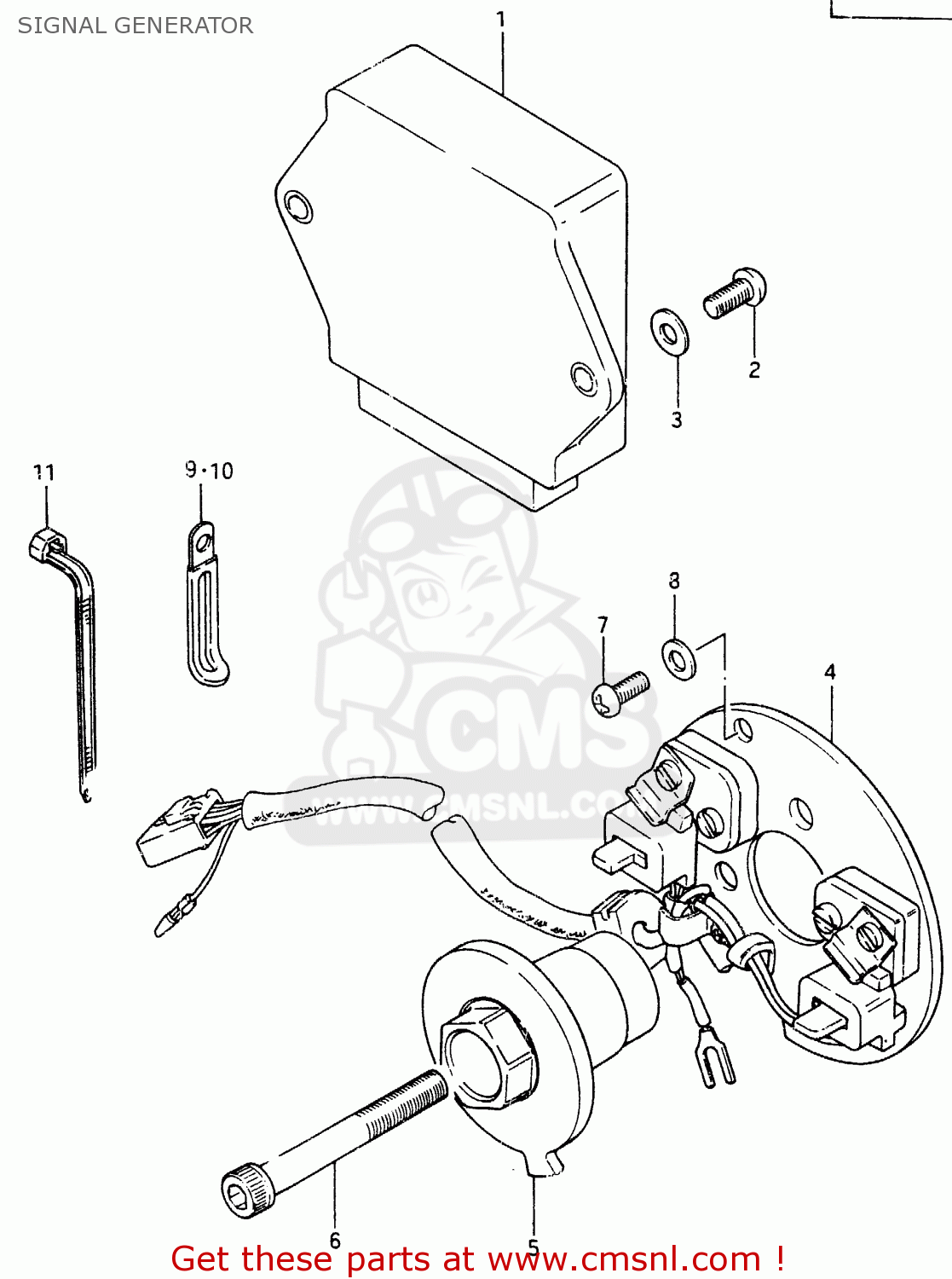

Signal generator diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

3290031310
ref: 1

IGNITER UNIT ASSEMBLY

€ 565.50

0211206126
ref: 2

SCREW

€ 1.50

0832221066
ref: 3

WASHER, LOWER

€ 2.00

3311031311
ref: 4

STATOR,SIGNAL GENERATOR

€ 262.50

3312031310
ref: 5

ROTOR,SIGNAL

€ 155.50

0711008456
ref: 6

BOLT

€ 3.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

0940406422
ref: 9

CLAMP

€ 2.50

0940408402
ref: 10

CLAMP

€ 3.50

0940714403
ref: 11

CLAMP(L:125)

€ 2.50
