CAM SHAFT - VALVE

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

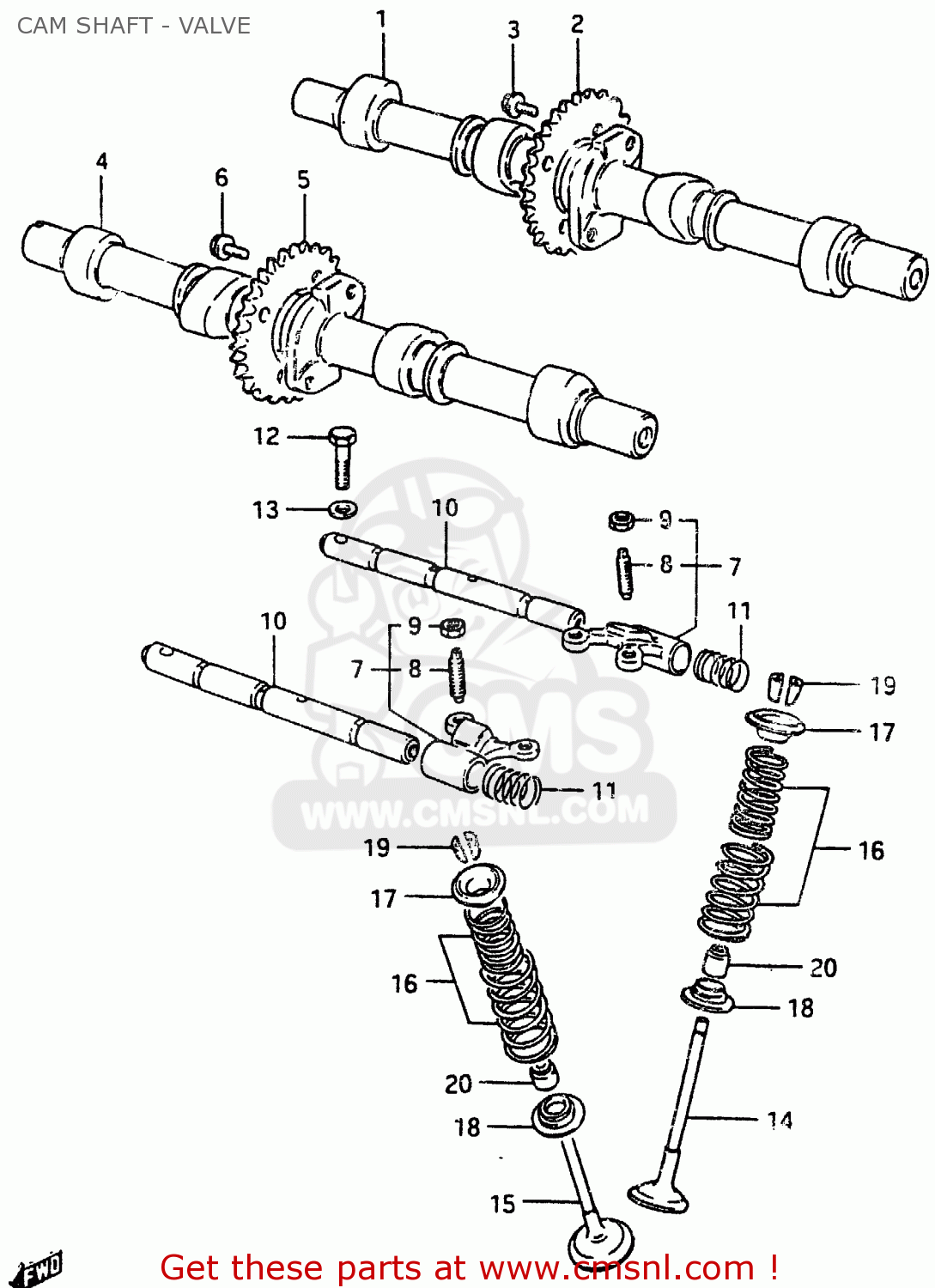

Cam shaft - valve diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1271106A00
ref: 1

CAMSHAFT,INTAKE

€ 199.50

1274134201
ref: 2

SPROCKET,INTAKE CAMSHAFT

€ 35.50

0910307001
ref: 3

BOLT(7X11)

€ 2.00

1272106A00
ref: 4

CAMSHAFT,EXHAUST

€ 190.00

1275131300
ref: 5

SPROCKET,EXHAUST CAMSHAFT

€ 37.50

0910307001
ref: 6

BOLT(7X11)

€ 2.00

1284045410
ref: 7

ARM,VALVE ROCKER

€ 78.50

1284249210
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

1284349210
ref: 9

NUT,ADJUSTING

€ 3.00

1286031300
ref: 10

SHAFT,VALVE ROCKER

€ 33.50

0944013014
ref: 11

SPRING

€ 2.50

0110706306
ref: 12

BOLT

€ 2.50

0832221066
ref: 13

WASHER, LOWER

€ 2.00

1291131300
ref: 14

VALVE,INTAKE

€ 20.00

1291231301
ref: 15

VALVE,EXHAUST

€ 36.00

1292049210
ref: 16

SPRING SET,VALVE

€ 16.00

1293149200
ref: 17

RETAINER,VALVE SPRING

€ 5.50

1293349200
ref: 18

SEAT,VALVE SPRING

€ 4.50

1293249200
ref: 19

COTTER VALVE

€ 2.50

0928905003
ref: 20

OIL SEAL

€ 6.50
