FRONT CALIPERS

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

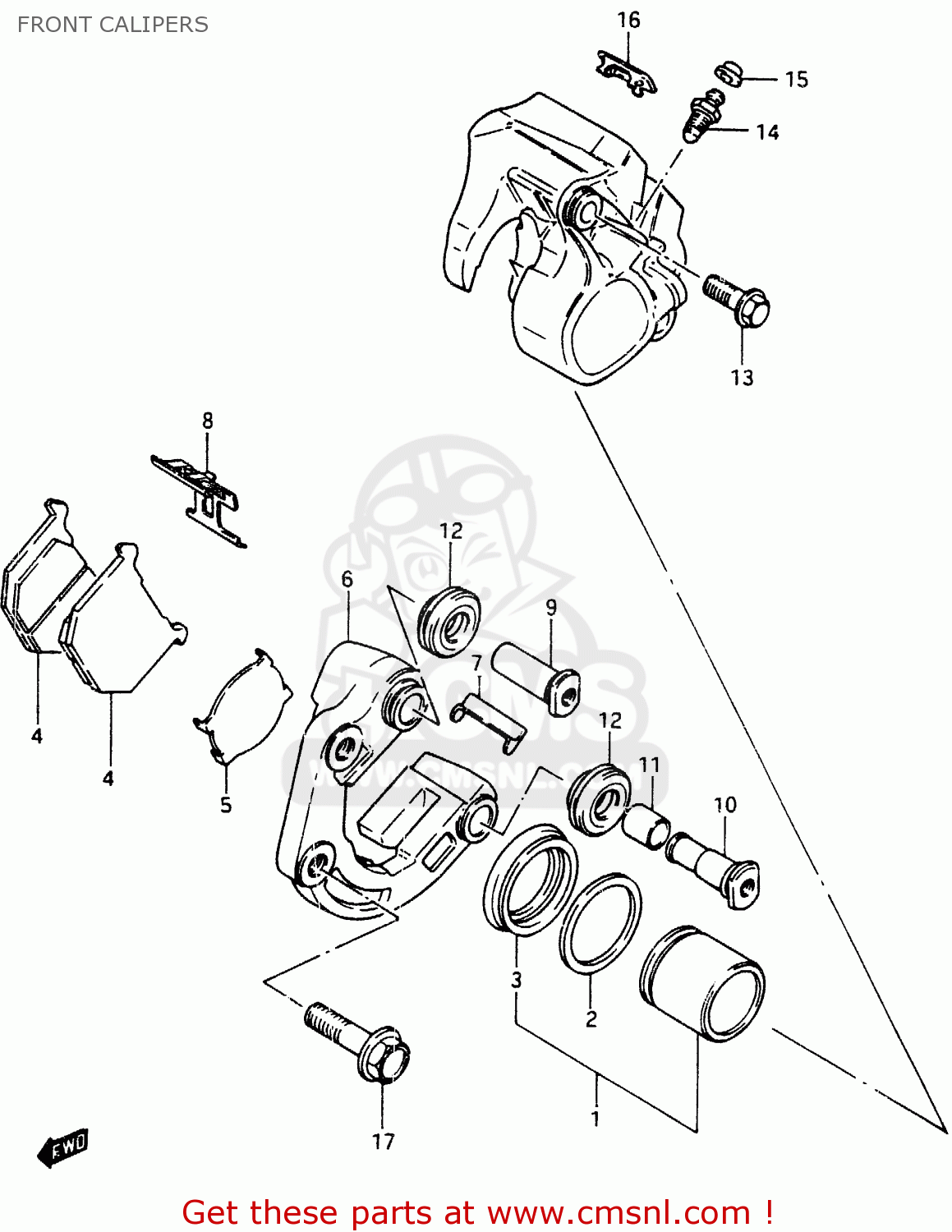

Front calipers diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

FRONT CALIPERS GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

FRONT CALIPERS GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

0

5910045230
ref: 0

CALIPERS ASSY, FRONT RH

€ 267.50

0

5930045230
ref: 0

CALIPERS ASSY, FRONT LH

€ 260.00

1

5930145820
ref: 1

PISTON SET

€ 117.00

2

5910718410
ref: 2

SEAL,PISTON

€ 17.00

3

5930845200
ref: 3

BOOT,PISTON

€ 13.00

4

5913045230
ref: 4

PAD

€ 24.00

5

5937145200
ref: 5

SHIM,PAD

€ 12.50

6

5910045881
ref: 6

CARRIER,CALIPER,RIGHT

€ 114.00

6

5930145841
ref: 6

CARRIER,CALIPER,LEFT

€ 67.00

7

5931645201
ref: 7

GUIDE,PAD

€ 19.00

8

5931545200
ref: 8

SPRING,PAD

€ 29.00

9

5930545200
ref: 9

AXLE NO.1

€ 15.00

10

5930645200
ref: 10

AXLE NO.2

€ 13.50

11

5931345200
ref: 11

BUSH,AXLE

€ 12.00

12

5931245200
ref: 12

BOOT,AXLE

€ 10.50

13

5931445201
ref: 13

BOLT

€ 12.00

14

5912118410
ref: 14

BLEEDER

€ 8.00

15

5912218410
ref: 15

CAP,BREATHER

€ 6.00

16

5932445201
ref: 16

COVER

€ 5.00

17

0151710405
ref: 17

BOLT 10X40

€ 4.00
