Buy Suzuki GSX Parts Online


HANDLEBAR (GSX750EF)

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

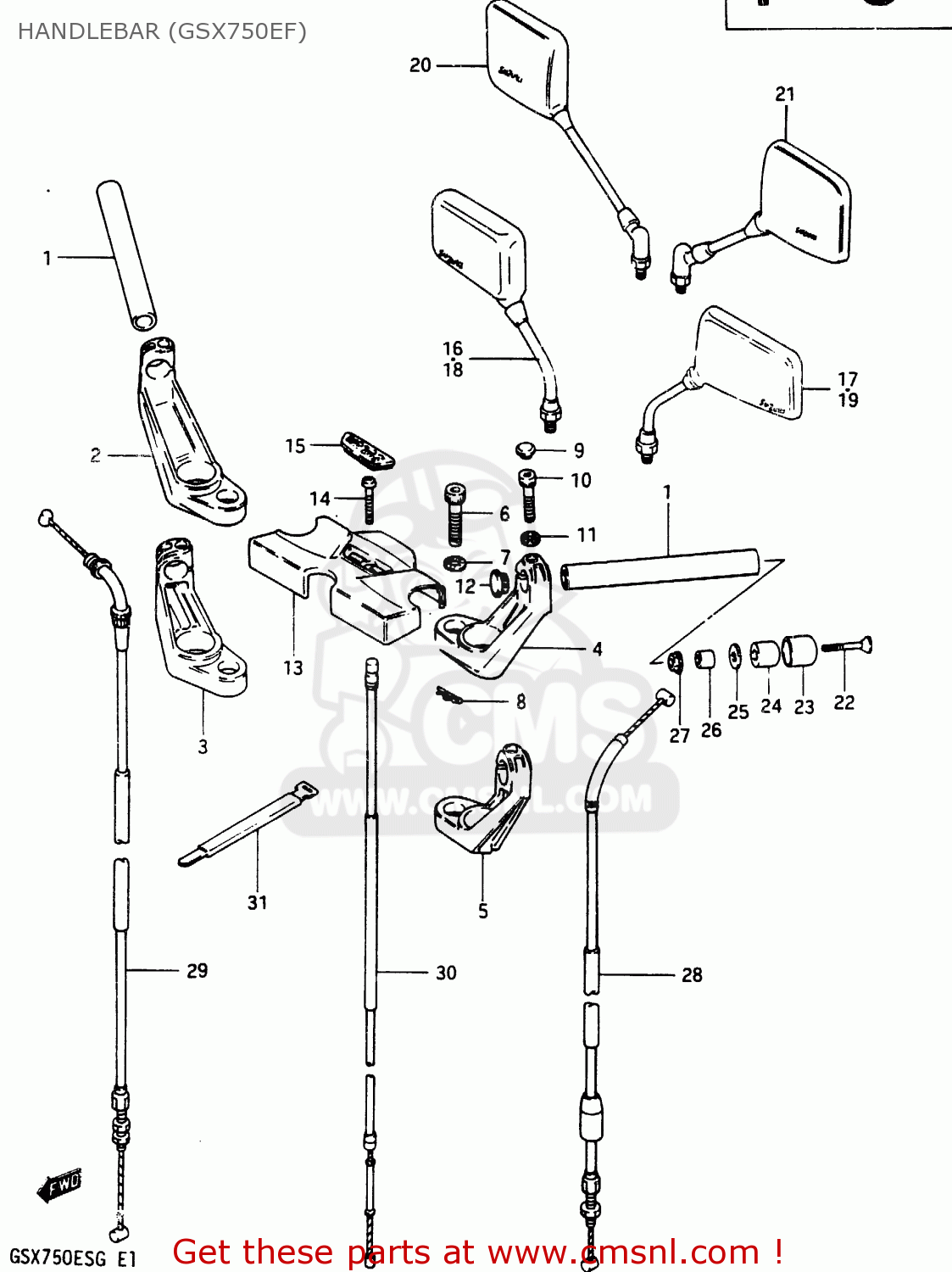

Handlebar (gsx750ef) diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

HANDLEBAR (GSX750EF) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
HANDLEBAR (GSX750EF) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
HANDLEBAR (GSX750EF) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
5611131330
ref: 1
HANDLEBAR
5611131330
€ 20.00
2
5621131311
ref: 2
HOLDER,HANDLEBAR,RIGHT
5621131311
€ 28.50
3
5621131301
ref: 3
HOLDER,HANDLEBAR,RIGHT
5621131301
€ 163.50
4
5622131311
ref: 4
HOLDER,HANDLEBAR,LEFT
€ 124.00
5
5622131301
ref: 5
HOLDER,HANDLEBAR,LEFT
€ 163.50
6
0910610024
ref: 6
BOLT 10X50
€ 3.00
7
0916410005
ref: 7
WASHER
0916410005
€ 6.50
8
0938510005
ref: 8
CLIP
0938510005
€ 1.50
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10
0711008355
ref: 10
BOLT 8X35
0711008355
€ 4.00
11
0916408015
ref: 11
WASHER
0916408015
€ 3.00
12
5721543401
ref: 12
CAP,GRIP END
5721543401
€ 4.00
13
5617031310
ref: 13
PAD,HANDLE
5617031310
€ 27.50
14
0211206168
ref: 14
SCREW
0211206168
€ 2.50
15
5617400A00
ref: 15
CAP,HANDLE PAD
5617400A00
€ 8.00
16
5650031301
ref: 16
MIRROR ASSEMBLY,RIGHT
€ 48.50
17
5660031301
ref: 17
MIRROR ASSEMBLY,REAR VIEW
€ 47.00
18
5650031321
ref: 18
E24
MIRROR, REAR VIEW RH
€ 43.50
19
5660031321
ref: 19
E24
MIRROR, REAR VIEW LH
5660031321
€ 43.50
20
5650010020
ref: 20
E2,E21
MIRROR ASSEMBLY,REAR VIEW
5650010020
€ 90.00
21
5660010020
ref: 21
E2,E21
MIRROR ASSEMBLY,REAR VIEW
5660010020
€ 92.00
22
0213206655
ref: 22
SCREW 6X65
0213206655
€ 2.50
23
5627431300
ref: 23
CAP,BALANCER
5627431300
€ 223.50
24
5627149400
ref: 24
BALANCER,HANDLE
5627149400
€ 19.50
25
5627534400
ref: 25
SPACER,BALANCER
5627534400
€ 2.50
26
5627204700
ref: 26
EXPANDER,BALANCER
5627204700
€ 5.00
27
0915906024
ref: 27
NUT
0915906024
€ 2.00
28
5820031311
ref: 28
CABLE ASSY,CLUTCH
5820031311
€ 30.00
28
5820031300
ref: 28
CABLE ASSY,CLUTCH
5820031300
€ 22.50
29
5830031311
ref: 29
CABLE ASSEMBLY,THROTTLE
€ 31.00
29
5830031301
ref: 29
CABLE ASSY,THROTTLE
5830031301
€ 26.50
30
5841031310
ref: 30
CABLE COMP,STARTER
€ 9.50
30
5841031300
ref: 30
CABLE COMP,STARTER
5841031300
€ 14.00
31
0940718301
ref: 31
CLAMP
0940718301
€ 6.00
