REAR SKINGING ARM

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

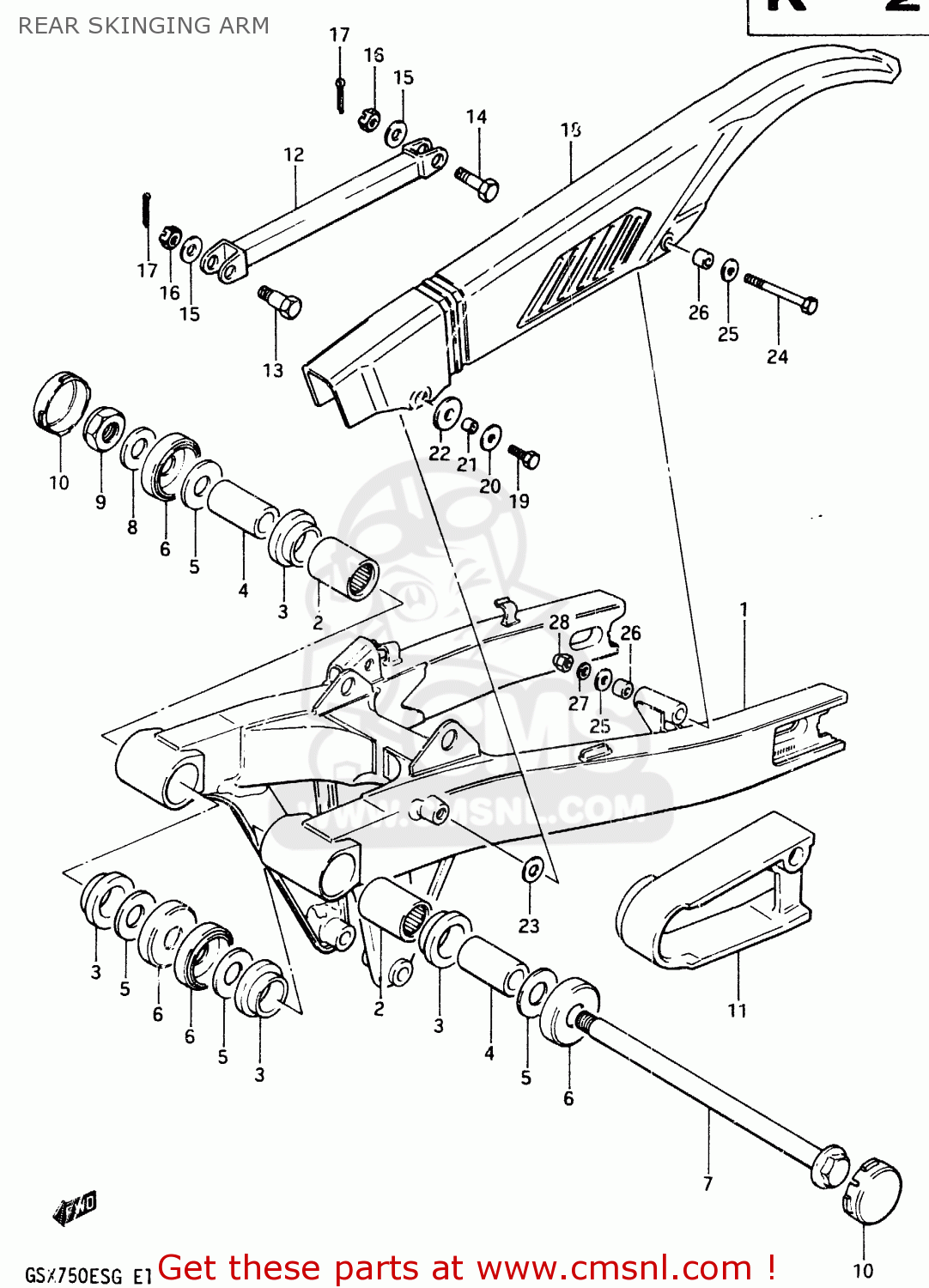

Rear skinging arm diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

REAR SKINGING ARM GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
REAR SKINGING ARM GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
REAR SKINGING ARM GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
6100031313
ref: 1
SWING ARM ASSEMBLY,REAR
6100031313
€ 527.50
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
6126131300
ref: 3
BUSHING
6126131300
€ 21.00
4
6125131300
ref: 4
SPACER,RR SWGARM PIVOT
6125131300
€ 21.00
5
0821116381
ref: 5
WASHER
0821116381
€ 2.50
6
6126249201
ref: 6
COVER,RR SWINGINGARM PIVOT
6126249201
€ 8.50
7
6121131310
ref: 7
SHAFT,REAR SWING ARM
6121131310
€ 38.50
8
0832211144
ref: 8
WASHER
€ 2.00
9
0915914013
ref: 9
NUT
0915914013
€ 8.50
10
6122231301
ref: 10
CAP,PIVOT
6122231301
€ 7.00
11
6127331311
ref: 11
BUFFER,DEFENSE
6127331311
€ 26.00
12
6431031310291
ref: 12
TORQUE LINK,REAR
6431031310291
€ 18.50
13
0911110011
ref: 13
BOLT
0911110011
€ 8.00
14
0910110017
ref: 14
BOLT(10X39)
0910110017
€ 5.00
14
0910010247
ref: 14
E22
BOLT(10X39)
0910010247
€ 4.00
15
0832211104
ref: 15
WASHER 10MM
0832211104
€ 2.50
16
0831441108
ref: 16
NUT
0831441108
€ 2.50
16
0915910036
ref: 16
E22
NUT
€ 3.00
16
0831441108
ref: 16
E22
NUT
0831441108
€ 2.50
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
17
0411120208
ref: 17
E22
PIN 20X20
0411120208
€ 1.50
18
6131031302
ref: 18
CASE,CHAIN
€ 109.50
19
0110706165
ref: 19
BOLT 6X16
0110706165
€ 2.00
20
0916006063
ref: 20
WASHER (6.5X22X1.6)
0916006063
€ 2.00
21
0918006073
ref: 21
SPACER
0918006073
€ 2.00
22
0916108002
ref: 22
WASHER
0916108002
€ 2.50
23
0916006063
ref: 23
WASHER (6.5X22X1.6)
0916006063
€ 2.00
24
0110706604
ref: 24
BOLT 6X60
€ 13.00
25
0916006056
ref: 25
WASHER(6.5X18X1)
0916006056
€ 2.00
26
0918006142
ref: 26
SPACER
0918006142
€ 1.50
27
0832121064
ref: 27
WASHER,LOCK
0832121064
€ 2.00
28
0831311065
ref: 28
NUT 6MM
0831311065
€ 2.00
