REAR MASTER CYLINDER

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

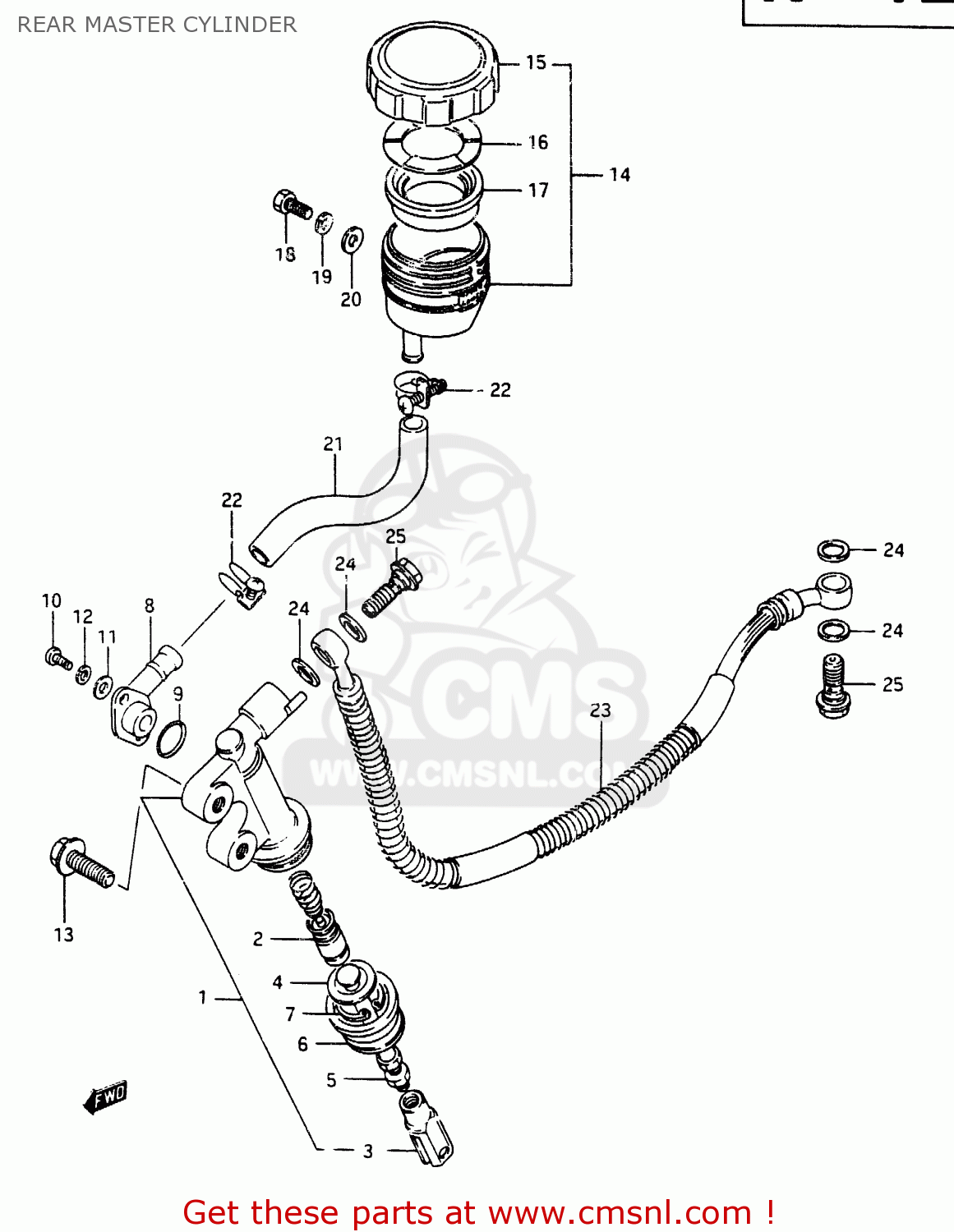

Rear master cylinder diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

6960031300
ref: 1

CYLINDER ASSY,RR MASTER

€ 140.50

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

6969234300
ref: 3

YOKE

€ 11.00

6967031301
ref: 4

ROD,PUSH

€ 15.00

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6969145001
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

6967209300
ref: 8

CONNECTOR,HOSE

€ 0.00

6968634200
ref: 9

O RING

€ 3.50

0211204125
ref: 10

SCREW

€ 1.50

0832221045
ref: 11

WASHER

€ 5.00

0832121045
ref: 12

LOCK WASHER

€ 2.00

0151708254
ref: 13

BOLT

€ 2.50

6974034250
ref: 14

TANK ASSEMBLY,RESERVOIR

€ 27.50

5966939110
ref: 15

CAP

€ 16.00

5966818441
ref: 16

PLATE,DIAPHRAGM

€ 3.50

5966718441
ref: 17

DIAPHRAGM

€ 8.50

0912806011
ref: 18

SCREW(6X12)

€ 3.00

0832121067
ref: 19

WASHER,LOCK

€ 2.50

0832221067
ref: 20

WASHER

€ 2.00

6973131301
ref: 21

HOSE,RESERVOIR TANK

€ 9.50

0940016302
ref: 22

CLAMP

€ 4.50

6948031311
ref: 23

HOSE,REAR BRAKE

€ 59.50

0916110009
ref: 24

WASHER(10X15X1.5)

€ 2.00

0936010017
ref: 25

BOLT UNION

€ 6.50

REAR MASTER CYLINDER

all assemblies
