CYLINDER

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

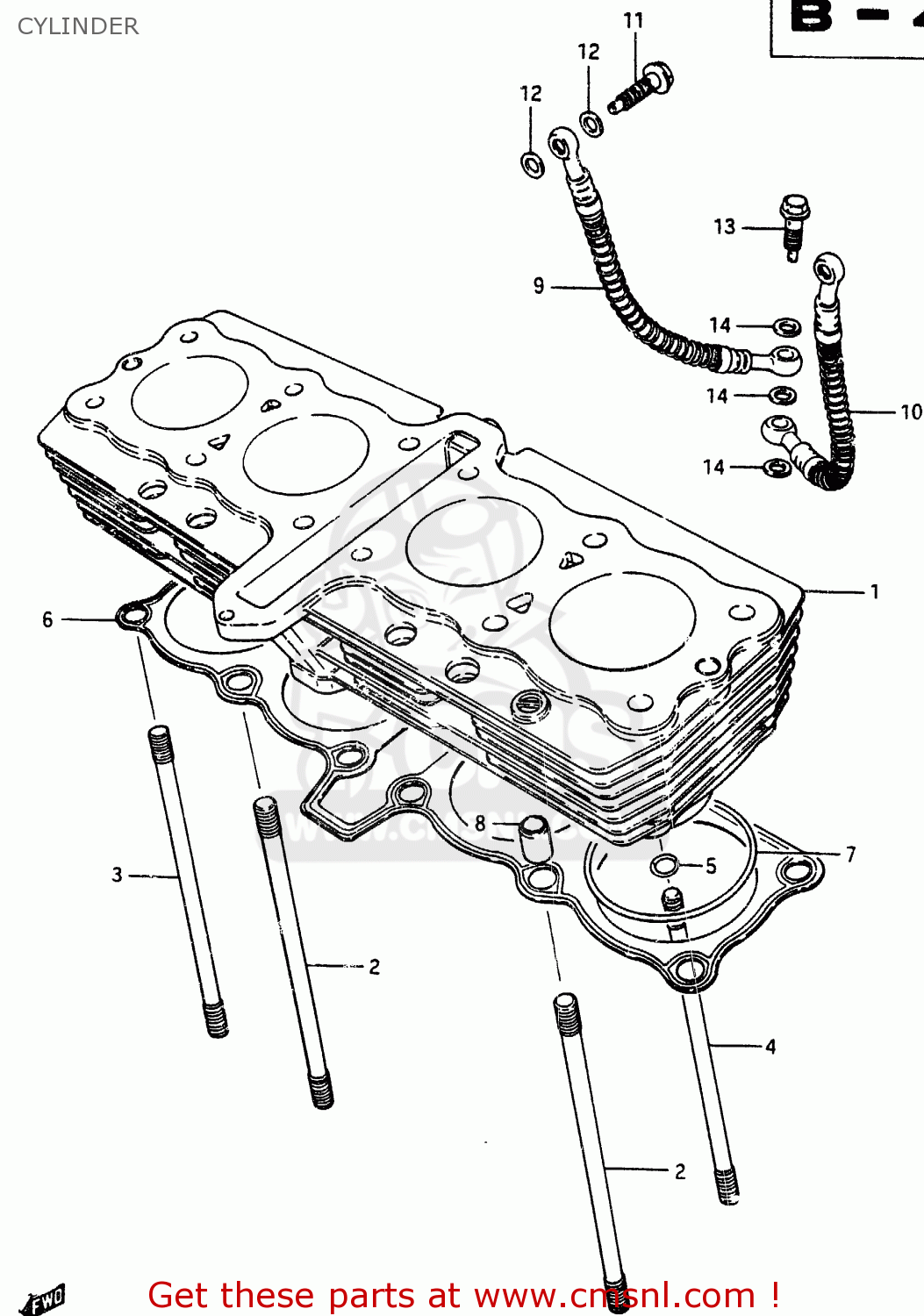

Cylinder diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1121031308
ref: 1

CYLINDER

€ 793.00

0910810069
ref: 2

BOLT,STUD

€ 7.00

0910810047
ref: 3

STUD

€ 8.50

0910810062
ref: 4

STUD

€ 8.50

0928011005
ref: 5

O RING(D:2.4,ID:11)

€ 4.50

1124106A01
ref: 6

GASKET,CYLINDER (NAS)

€ 13.50

0928070001
ref: 7

O RING(D:2,ID:70)

€ 7.50

0920613006
ref: 8

PIN

€ 9.00

1128131304
ref: 9

HOSE,OIL

€ 73.00

1128231304
ref: 10

HOSE,OIL

€ 73.00

0936008008
ref: 11

BOLT UNION

€ 4.00

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

1128531301
ref: 13

BOLT,OIL PIPE

€ 12.50

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
