TRANSMISSION

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

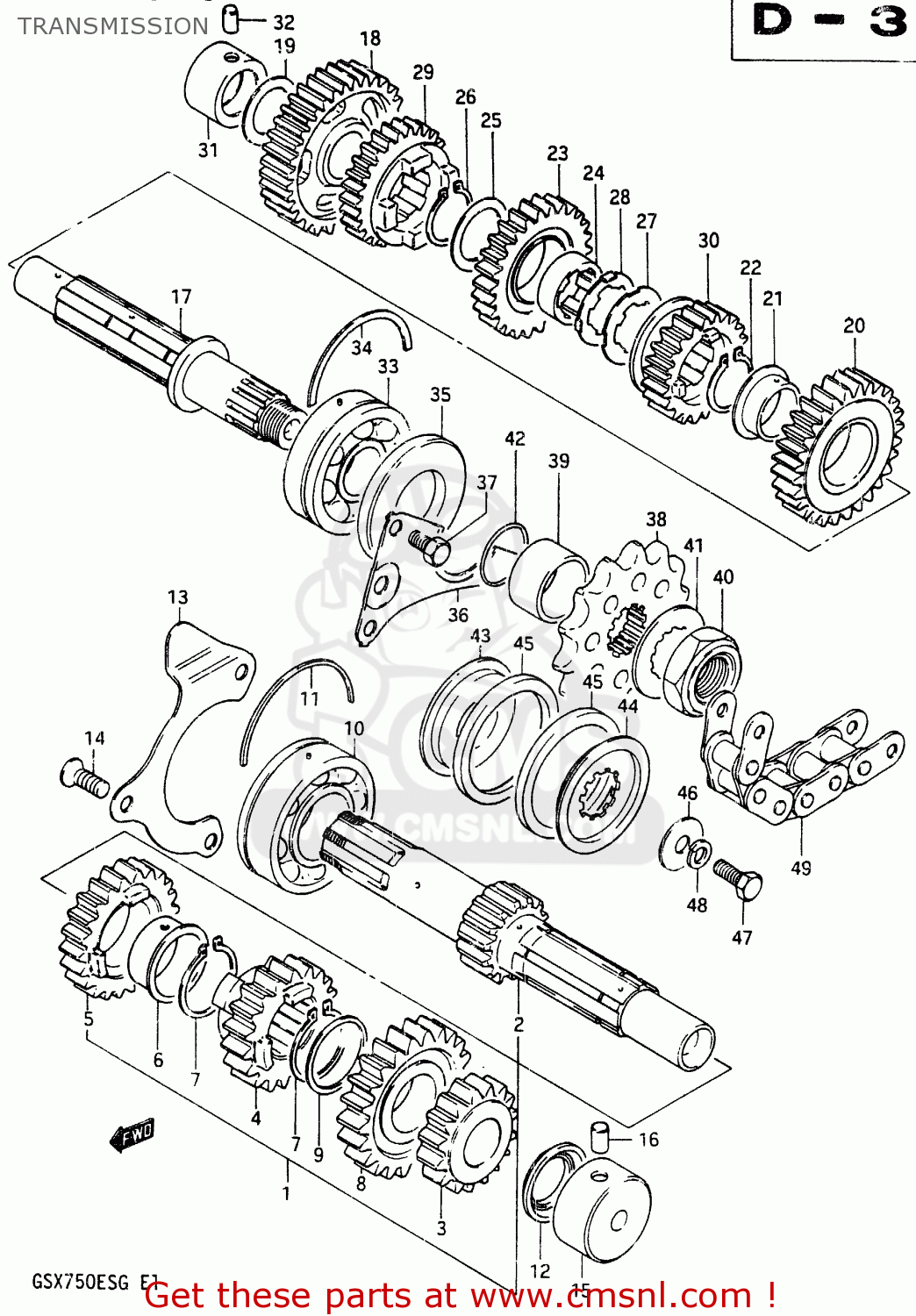

Transmission diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

TRANSMISSION GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
TRANSMISSION GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
TRANSMISSION GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
2412031301
ref: 1
SHAFT,COUNTER
€ 0.00
2
2412131302
ref: 2
SHAFT,COUNTER
2412131302
€ 145.00
3
2422131300
ref: 3
GEAR,SECOND DRIVE
€ 104.50
4
2423131304
ref: 4
GEAR,THIRD DRIVE
€ 87.00
5
2424131300
ref: 5
GEAR,FOURTH DRIVE
2424131300
€ 82.50
6
0930125001
ref: 6
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2425131302
ref: 8
GEAR,FIFTH DRIVE (NT:23)
2425131302
€ 95.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10
0926225051
ref: 10
BEARING(25X62X17)
0926225051
€ 59.50
11
0939062006
ref: 11
C-RING
0939062006
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
13
2474131300
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 7.00
14
0212206168
ref: 14
SCREW
0212206168
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
0926320049
€ 58.00
16
0422107209
ref: 16
PIN
0422107209
€ 1.50
17
2413131312
ref: 17
SHAFT,DRIVE
2413131312
€ 58.00
18
2431031300
ref: 18
GEAR,1ST DRIVEN(NT:35)
€ 94.50
19
0821120341
ref: 19
WASHER
0821120341
€ 2.00
20
2432131300
ref: 20
GEAR,2ND DRIVEN(NT:28)
2432131300
€ 78.00
21
0930128001
ref: 21
BUSH(28X32X2)
0930128001
€ 19.50
22
0833111289
ref: 22
CIRCLIP
€ 2.50
23
2433131300
ref: 23
GEAR,THIRD DRIVEN
€ 85.00
24
2433249000
ref: 24
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
25
0916728001
ref: 25
WASHER,LOCK
0916728001
€ 3.00
26
0833111289
ref: 26
CIRCLIP
€ 2.50
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
0916928001
ref: 28
WASHER
0916928001
€ 3.00
29
2434131303
ref: 29
GEAR,4TH DRIVEN(NT:26)
2434131303
€ 99.50
30
2435131301
ref: 30
GEAR,5TH DRIVEN(NT:22)
2435131301
€ 87.00
31
0926320040
ref: 31
BEARING(20X34X20)
0926320040
€ 42.50
32
0422107209
ref: 32
PIN
0422107209
€ 1.50
33
0926225065
ref: 33
BALL BEARING 25X62X17
0926225065
€ 59.50
34
0939062006
ref: 34
C-RING
0939062006
€ 5.00
35
0928333002
ref: 35
SEAL,OIL(33X62X7)
0928333002
€ 14.00
36
2475131300
ref: 36
PLATE,DRIVESHAFT OIL
2475131300
€ 4.50
37
0110706108
ref: 37
BOLT
€ 2.00
38
2751147100
ref: 38
SPROCKET,ENGINE
€ 45.00
39
0918025066
ref: 39
E1,E2,E4,E6,E15,E16,
SPACER (25X33X20.1)
0918025066
€ 7.50
39
0918025069
ref: 39
E18
SPACER
0918025069
€ 9.50
40
0915920001
ref: 40
NUT
0915920001
€ 12.00
41
0916725014
ref: 41
E1,E2,E4,E6,E15,E16,
WASHER
0916725014
€ 2.50
42
0928025001
ref: 42
O RING(D:1,ID:24.5)
0928025001
€ 2.50
43
2751531301
ref: 43
E18
HOLDER, SPROCKET, NO.1
2751531301
€ 13.50
44
2751631301
ref: 44
E18
HOLDER,SPROCKET DAMPER
2751631301
€ 3.50
45
2751731300
ref: 45
E18
DAMPER,SPROCKET
2751731300
€ 14.00
46
0821206222
ref: 46
E18
WASHER
0821206222
€ 1.50
47
0110706168
ref: 47
E18
BOLT, UPPER
€ 3.00
48
0832131068
ref: 48
E18
LOCK WASHER
€ 2.50
49
2760031340
ref: 49
CHAIN ASSEMBLY,DRIVE
€ 243.00
