STARTER CLUTCH

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

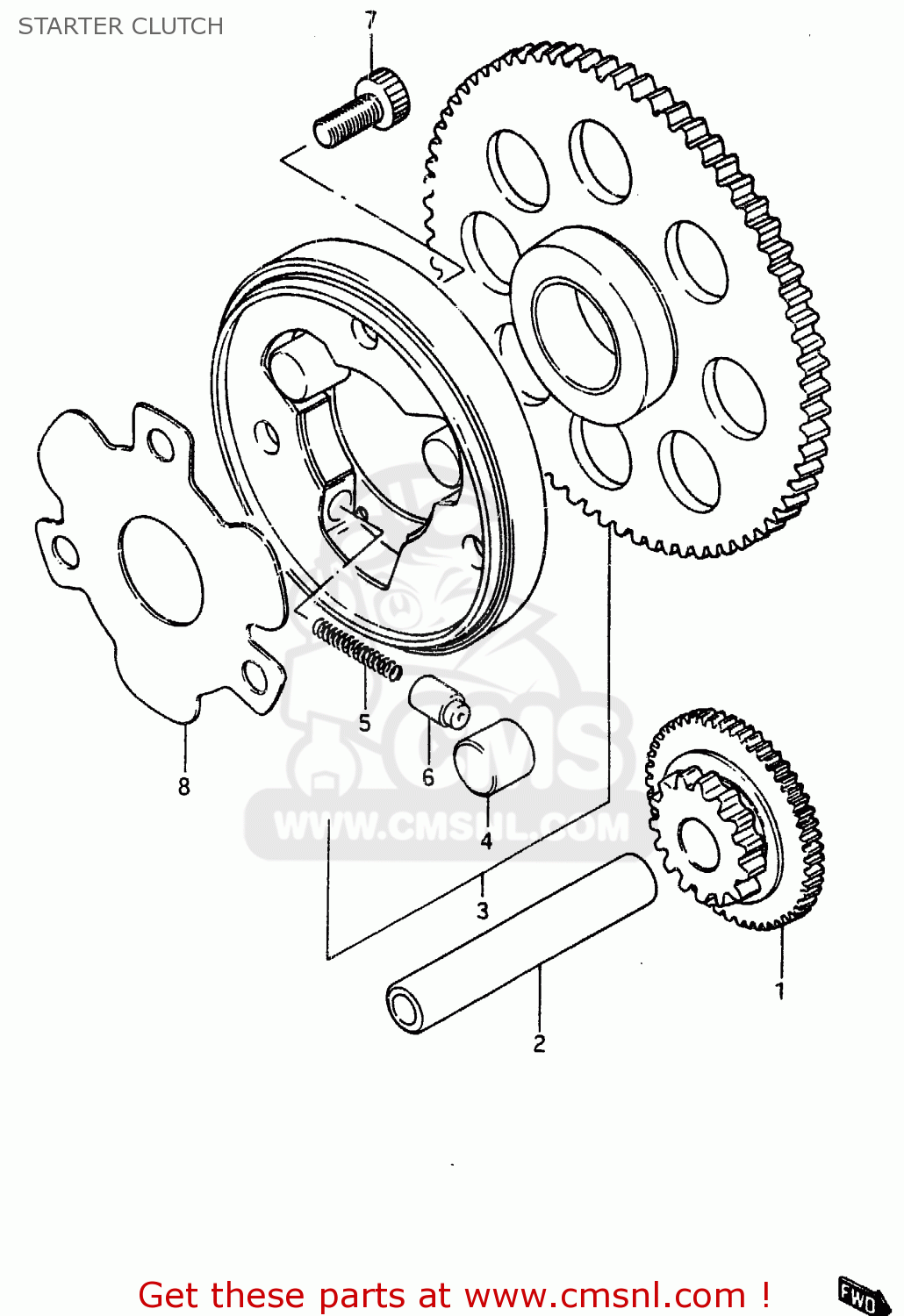

Starter clutch diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

STARTER CLUTCH GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

STARTER CLUTCH GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1

1261131301
ref: 1

GEAR,STARTER IDLE

€ 80.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260031840
ref: 3

CLUTCH SET,STARTER

€ 152.50

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608043
ref: 7

BOLT

€ 3.00

8

1264909301
ref: 8

SHIM,STARTER CLUTCH HUB

€ 8.50
