Buy Suzuki GSX Parts Online


COWLING (GSX750ESG)

GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

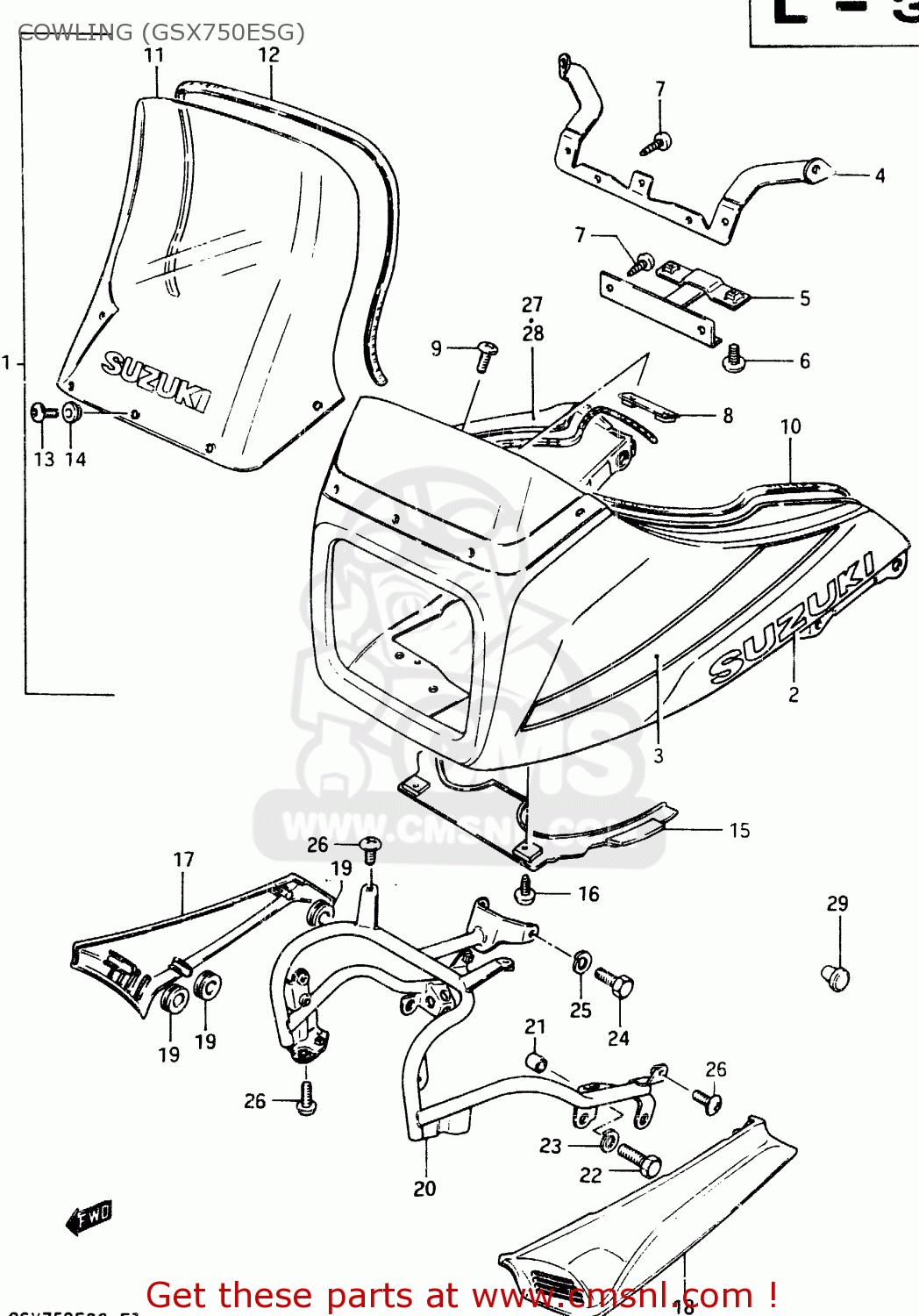

Cowling (gsx750esg) diagram GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)

COWLING (GSX750ESG) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
COWLING (GSX750ESG) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
COWLING (GSX750ESG) GSX750EF 1985 (F) (E01 E02 E04 06 15 16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
94400314008HY
ref: 1
COWLING ASSY (BLUE/RED)
€ 745.00
1
94400314008HZ
ref: 1
COWLING ASSY (RED/GRAY)
€ 745.00
2
6811243400064
ref: 2
FOR 8HY
EMBLEM, SIDE
6811243400064
€ 13.50
2
6811243400742
ref: 2
FOR 8HZ
EMBLEM, SIDE
6811243400742
€ 7.00
3
68190313608JK
ref: 3
FOR 8HY
TAPE SET
€ 17.50
3
68190313608JL
ref: 3
FOR 8HZ
TAPE SET
€ 16.50
4
9453031311
ref: 4
BRACE,COWLING,UPPER
9453031311
€ 18.50
5
9454031311
ref: 5
BRACE,COWLING,LOWER
9454031311
€ 10.00
6
0214205107
ref: 6
SCREW
0214205107
€ 2.50
7
0321205105
ref: 7
SCREW
0321205105
€ 1.00
8
9455031311
ref: 8
BRACE
9455031311
€ 2.50
9
0214205105
ref: 9
SCREW
0214205105
€ 2.50
10
9459331310
ref: 10
MOLDING,FUEL TANK
€ 32.00
11
9461131330
ref: 11
WINDOW
9461131330
€ 318.50
11
9461131340
ref: 11
E17
WINDOW,COWLING
€ 323.00
12
9463131310
ref: 12
MOLDING
9463131310
€ 18.00
12
9463131320
ref: 12
E17
MOULDING
€ 14.00
13
0214205204
ref: 13
SCREW
€ 2.00
14
0932005008
ref: 14
CUSHION
0932005008
€ 5.00
15
9444531310
ref: 15
COVER,COWLING,LOWER
€ 12.00
16
0321205105
ref: 16
SCREW
0321205105
€ 1.00
17
944313131017P
ref: 17
FOR 8HY
COVER, RH (BLUE)
€ 34.00
17
944313131022P
ref: 17
FOR 8HZ
COVER COWL.RH
€ 34.00
18
944413131017P
ref: 18
FOR 8HY
COVER, LH (BLUE)
€ 62.00
18
944413131022P
ref: 18
FOR 8HZ
COVER COWL.LH
€ 62.00
19
0932008018
ref: 19
CUSHION
0932008018
€ 4.00
20
9451031312
ref: 20
BRACE,COWLING
€ 98.00
21
9454949500
ref: 21
SPACER,COWLING
9454949500
€ 10.50
22
0110708304
ref: 22
BOLT
€ 2.50
23
0832121084
ref: 23
WASHER,LOCK,8.
0832121084
€ 2.50
24
0110708165
ref: 24
BOLT
€ 2.00
25
0832121084
ref: 25
WASHER,LOCK,8.
0832121084
€ 2.50
26
0214206125
ref: 26
SCREW 6X12
0214206125
€ 2.00
27
6819731310291
ref: 27
TAPE,RIGHT
6819731310291
€ 8.50
28
6819831310291
ref: 28
TAPE,LEFT
6819831310291
€ 9.50
29
0925005006
ref: 29
PLUG
0925005006
€ 2.50
