prices are in EUR
ref
part #
description
quantity
1-2

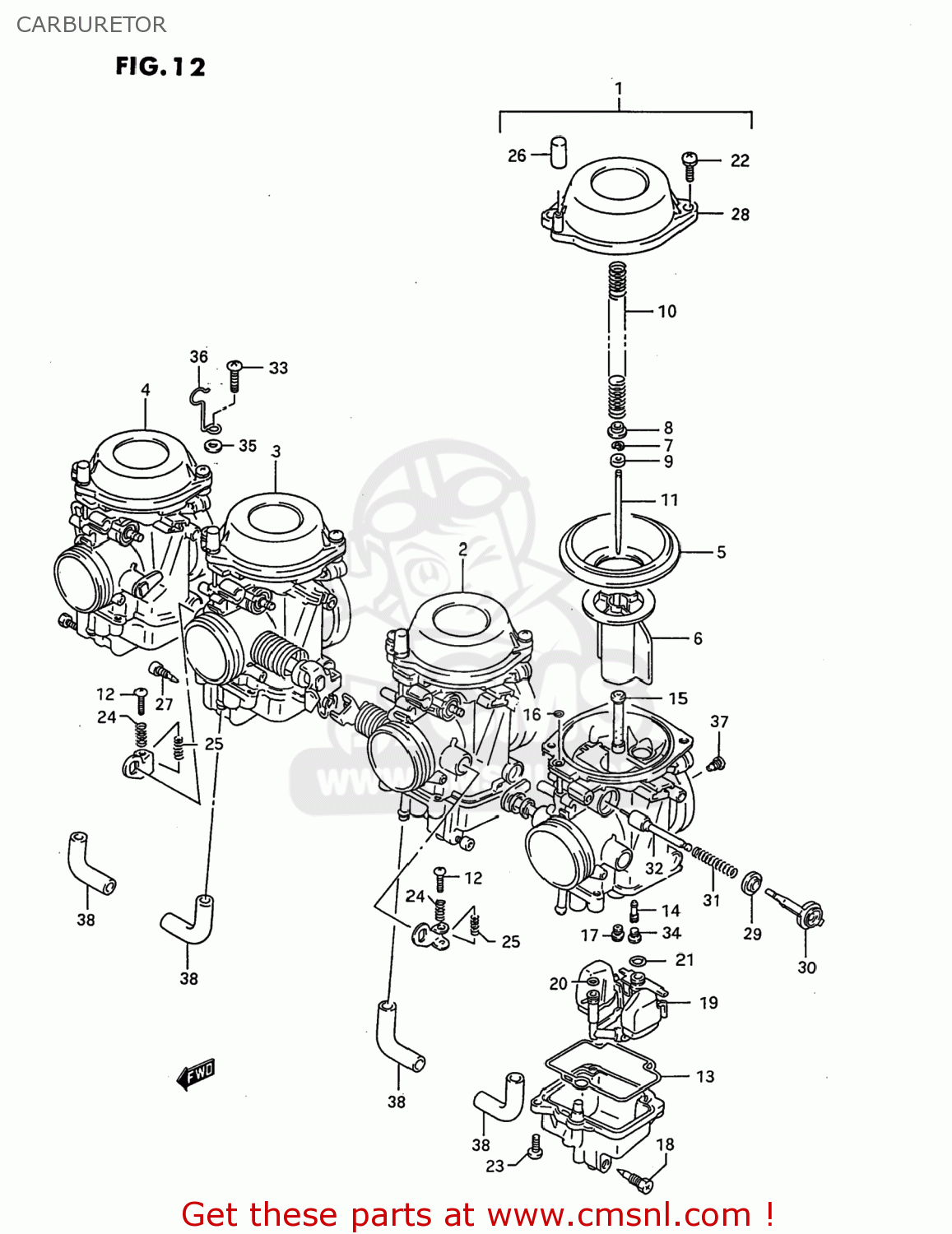

CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
5
DIAPHRAGM
6-1
VALVE,PISTON
6-2
VALVE,PISTON
7
CLIP,NEEDLE
8
RING
9
RING
10-1
SPRING
10-2
SPRING
11-1
NEEDLE,JET
11-2
NEEDLE,JET
12
SCREW
13
GASKET,FLOAT CHAMBER (NAS)
14
JET,PILOT(32.5)
15
JET,NEEDLE(Y-1M)
16
O RING
17-1
JET,MAIN(105)
17-2
JET,MAIN(110)
18
PLUG,DRAIN
19
FLOAT/NEEDLE VALVE ASSEMBLY
20
O RING
21
O-RING,NEEDLE VALVE
22
SCREW
23
SCREW
24
SPRING
25
SPRING
26
CAP
27
SCREW,DRAIN
28
COVER,DIAPHRAGM
29
CAP,STARTER
30
HOLDER,GUIDE
31
SPRING
33
SCREW
34
PLUG
35
WASHER
36
CLIP
38
HOSE
