FRONT FENDER

GSX750F KATANA 1997 (V) USA (E03)

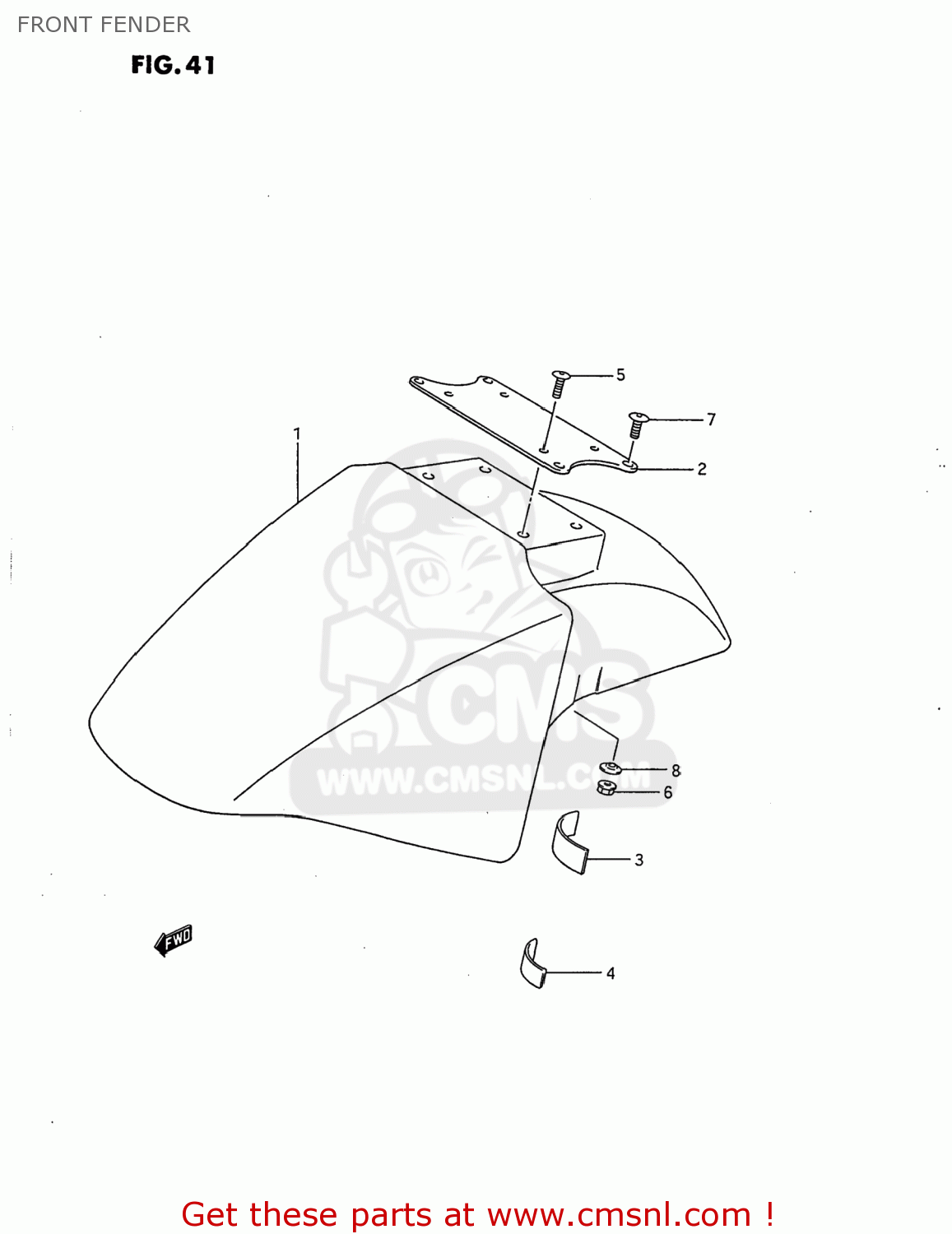

Front fender diagram GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

FENDER,FR

€ 172.50

1-2

FENDER,FR

€ 159.50

5311401D00
ref: 2

BRACE,FR FENDER

€ 19.50

5314519C00
ref: 3
46312-31D11

CUSHION,FRONT FENDER

€ 3.50

5314620C00
ref: 4

CUSHION

€ 4.50

0913905022
ref: 5
09139-05042

SCREW

€ 2.50

0915905026
ref: 6
09159-05043

NUT

€ 2.50

0913906027
ref: 7

SCREW(6X12)

€ 3.00

0916905010
ref: 8

WASHER

€ 3.00

all assemblies
