STARTING MOTOR

GSX750F KATANA 1997 (V) USA (E03)

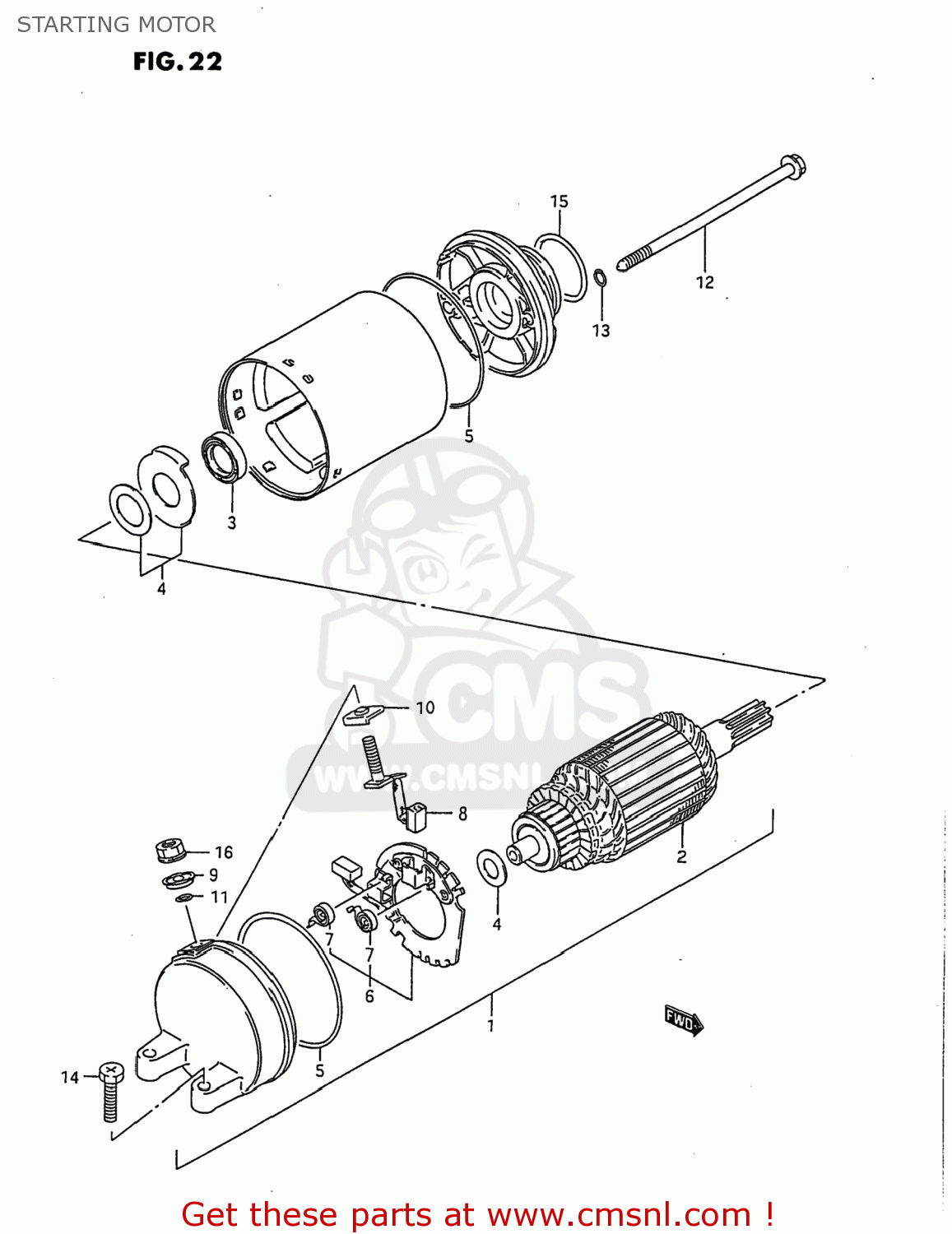

Starting motor diagram GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110020C00
ref: 1
31100-20C01

MOTOR ASSEMBLY,STARTING

€ 530.00

3131027A01H17
ref: 2

ARMATURE

€ 222.00

3115343400
ref: 3

SEAL,OIL

€ 19.50

3117043400
ref: 4

SHIM SET,STARTING MOTOR

€ 3.50

3126444110
ref: 5

O RING

€ 8.00

3113227A01
ref: 6

HOLDER,BRUSH

€ 47.00

3113565010
ref: 7

SPRING

€ 3.00

3113038300
ref: 8

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

3117238300
ref: 9

BUSHING

€ 4.00

3117138300
ref: 10

BUSH,B

€ 5.50

3114338300
ref: 11

O RING

€ 3.50

3128188C00
ref: 12

BOLT

€ 8.50

3115638300
ref: 13

O RING

€ 3.00

0912806024
ref: 14
09103-06212

SCREW (6X25)

€ 2.50

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

0836135068
ref: 16
08361-3506A

NUT

€ 2.00

STARTING MOTOR

all assemblies
