REAR FENDER

GSX750F KATANA 1997 (V) USA (E03)

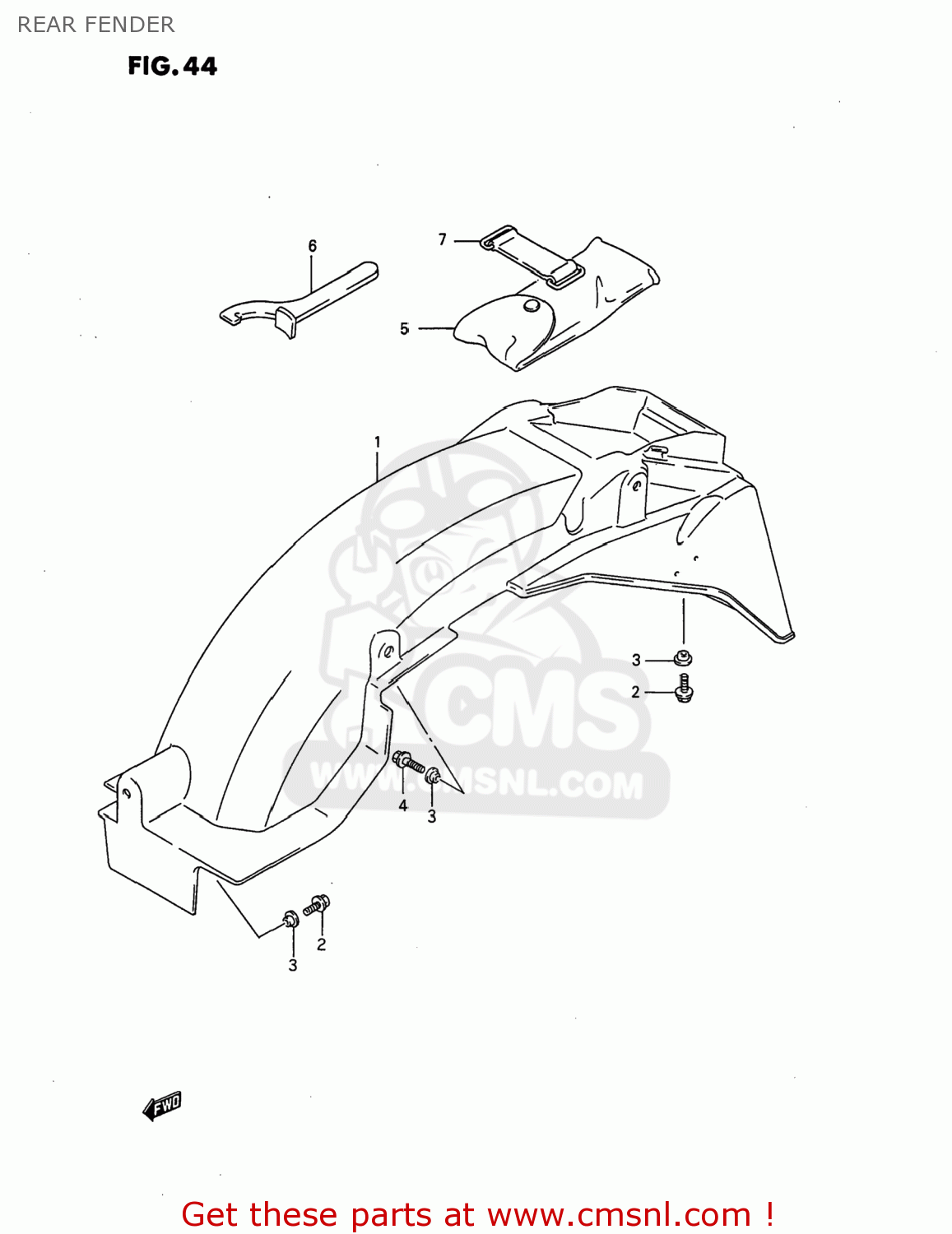

Rear fender diagram GSX750F KATANA 1997 (V) USA (E03)

REAR FENDER GSX750F KATANA 1997 (V) USA (E03)

REAR FENDER GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311120C30
ref: 1-1

BODY,RR FENDER

€ 0.00

1-2

6311120C40
ref: 1-2

BODY,REAR FENDER

€ 0.00

2

0155006103
ref: 2
01550-0610A

BOLT

€ 2.50

3

0916906037
ref: 3

WASHER

€ 6.50

4

0155006203
ref: 4
01550-0620A

BOLT

€ 2.50

5

0980021017
ref: 5

TOOL ASSY

€ 59.00

6

0982200005
ref: 6

CLAMP

€ 22.00

7

0946200034
ref: 7

BAND

€ 4.50
