FRAME

GSX750F KATANA 1997 (V) USA (E03)

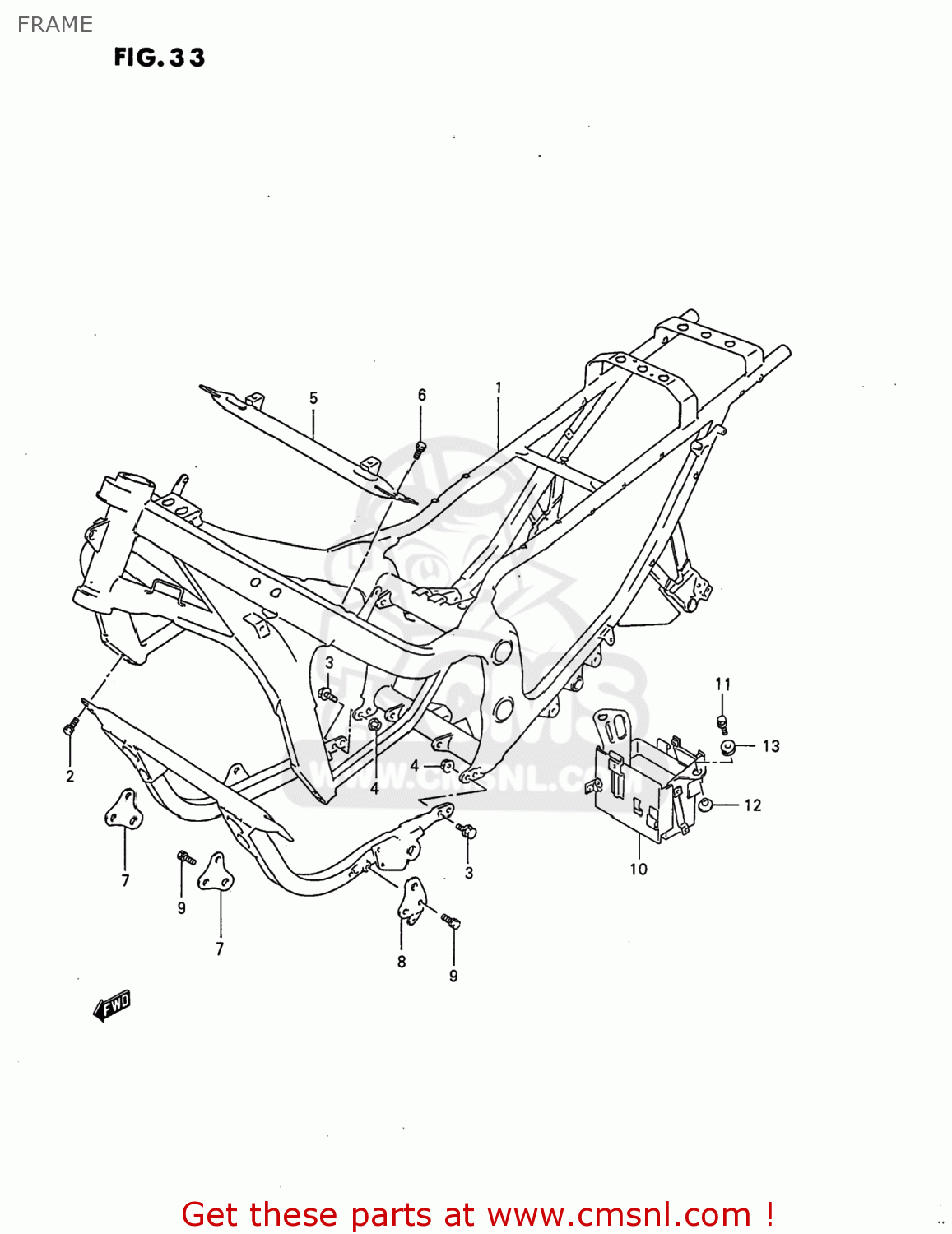

Frame diagram GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110120850019
ref: 1-1

FRAME SET

€ 1,564.50

1-2

4110120821019
ref: 1-2

FRAME SET

€ 981.50

0157008253
ref: 2
01570-0825A

BOLT

€ 2.50

0155008303
ref: 3
01550-0830A

BOLT

€ 3.00

0831931085
ref: 4
08319-3108A

NUT

€ 2.50

4175034C00
ref: 5

TUBE,FRAME BRIDGE NO.2

€ 44.00

0910308266
ref: 6

BOLT(8X20)

€ 2.50

4191119C00019
ref: 7

PLATE,ENG MTG NO.1

€ 5.00

4194020C00019
ref: 8

PLATE,ENG MTG NO.2,L

€ 10.00

0157008163
ref: 9
01570-0816A

BOLT, UPPER

€ 2.00

4154020C01
ref: 10

HOLDER,BATTERY

€ 34.50

0157006303
ref: 11
01570-0630A

BOLT

€ 2.00

0916906065
ref: 12

WASHER

€ 3.50

0932008021
ref: 13

CUSHION

€ 4.00
