SIGNAL GENERATOR

GSX750F KATANA 1997 (V) USA (E03)

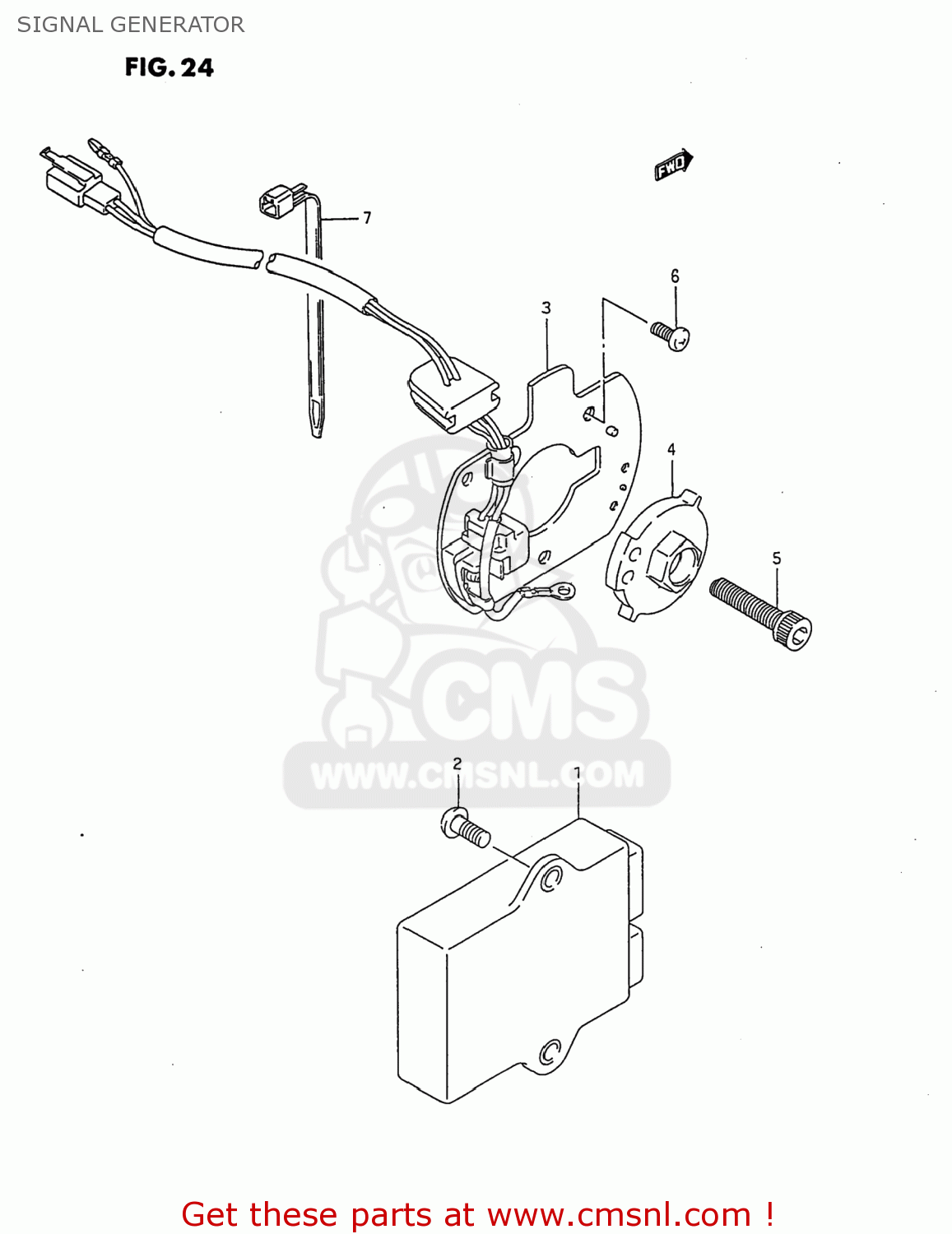

Signal generator diagram GSX750F KATANA 1997 (V) USA (E03)

SIGNAL GENERATOR GSX750F KATANA 1997 (V) USA (E03)

SIGNAL GENERATOR GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290020C50
ref: 1

IGNITER ASSEMBLY

€ 0.00

2

0214206123
ref: 2
02142-0612A

SCREW 6X12

€ 2.00

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0713008303
ref: 5
07130-0830A

BOLT

€ 3.00

6

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

7

0940711401
ref: 7

CLAMP(L:95)

€ 2.50
