TAIL LAMP BAR

GSX750F KATANA 1997 (V) USA (E03)

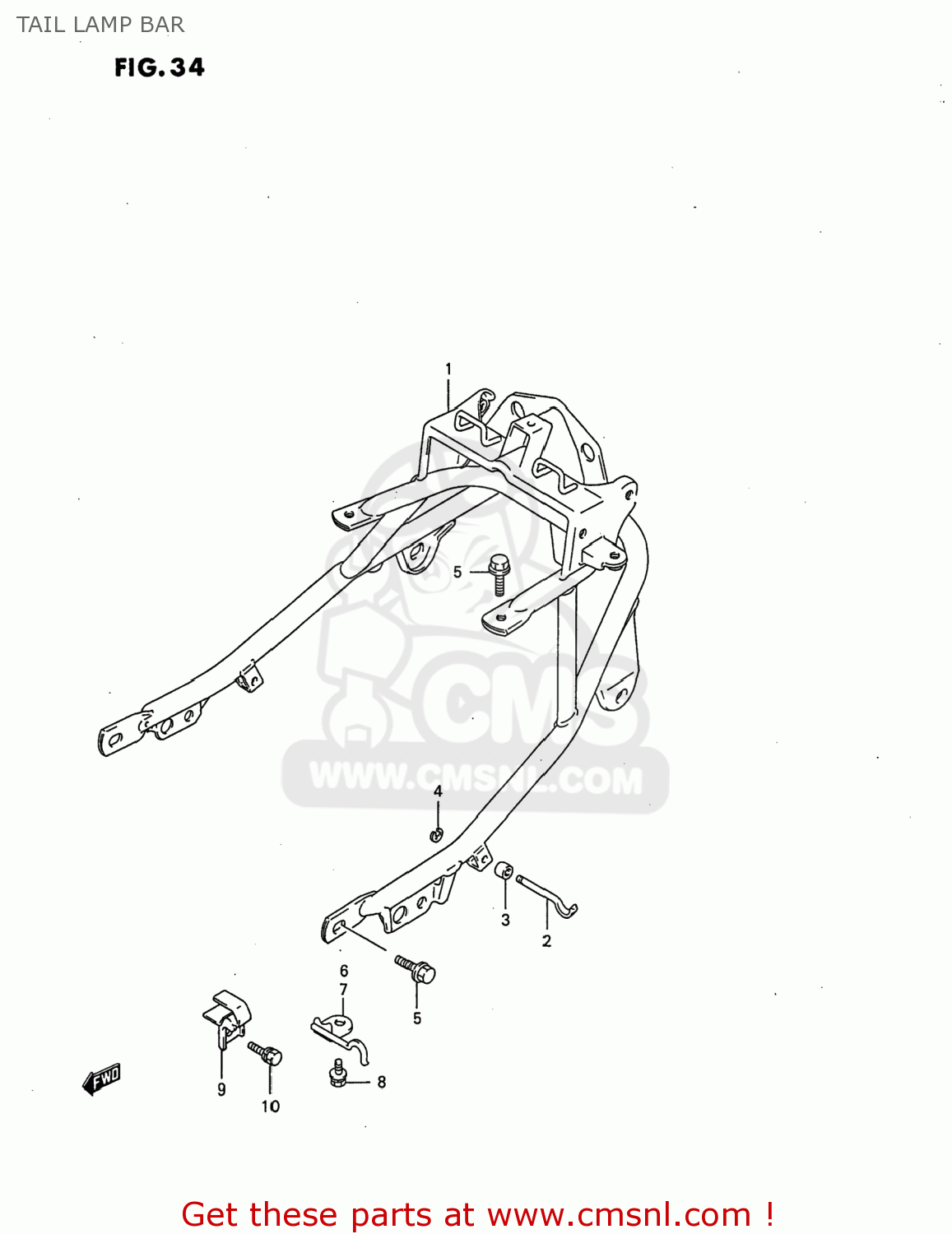

Tail lamp bar diagram GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

4158020C02
ref: 1

BAR,TAIL LAMP BRACKET

€ 262.50

4162534A01
ref: 2

ROD,GRIP

€ 5.00

4162633401
ref: 3

SPACER,GRIP ROD

€ 2.50

0833211043
ref: 4
08332-1104A

E-RING

€ 2.00

0155008203
ref: 5
01550-0820A

BOLT

€ 3.00

4162020C02
ref: 6

ROD,GRIP,R

€ 7.00

4163020C02
ref: 7

ROD,GRIP,L

€ 7.50

0158008163
ref: 8
01580-0816A

BOLT

€ 3.00

9572020C00
ref: 9

HOLDER,HELMET

€ 7.50

0157006163
ref: 10
01570-0616A

BOLT

€ 2.50
