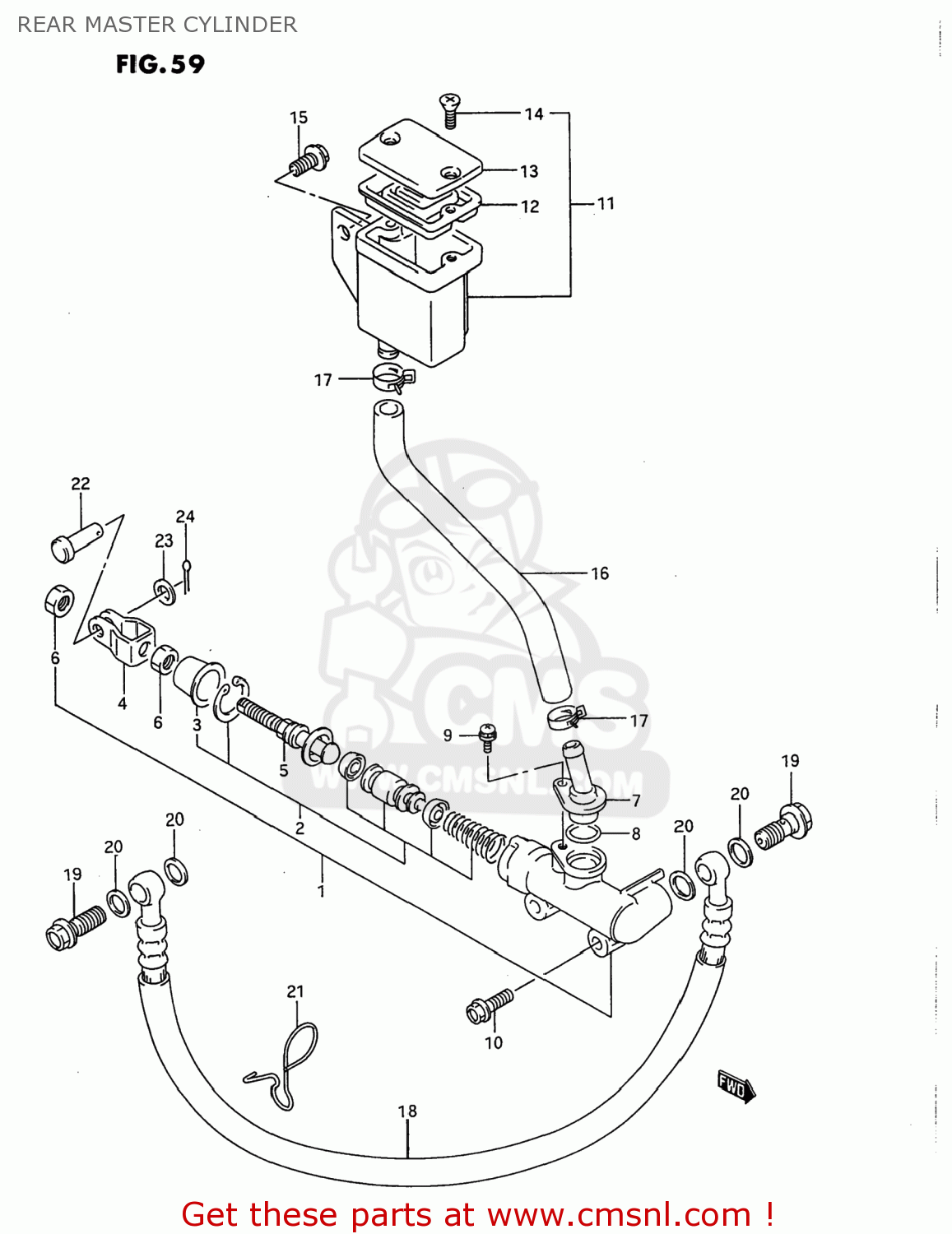

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960019C00
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 140.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969219A00
ref: 4

YOKE

€ 10.50

5

6967019C00
ref: 5

ROD,PUSH

€ 25.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967220A00
ref: 7

CONNECTOR

€ 7.00

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9
02112-7412A

SCREW

€ 2.50

10

0713006163
ref: 10
07130-0616B

BOLT,OIL FILLE

€ 3.00

11

6974024A01
ref: 11

TANK ASSY,RESERVOIR

€ 99.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

0155006123
ref: 15
01550-0612A

BOLT

€ 2.50

16

6973120C00
ref: 16

HOSE,RESERVOIR TANK

€ 12.50

17

0940113413
ref: 17
09401-13417

CLIP

€ 2.50

18

6948020C10
ref: 18

HOSE,RR BRAKE

€ 81.50

19

0936010041
ref: 19
09360-10061

BOLT UNION

€ 6.50

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

6924319C00
ref: 21

GUIDE,BRAKE HOSE

€ 3.00

22

0920006037
ref: 22
09200-06068

PIN

€ 5.00

23

0832201063
ref: 23
08322-0106B

WASHER

€ 2.00

24

0411120158
ref: 24
04111-2015A

PIN

€ 1.50
