CYLINDER HEAD COVER

GSX750F KATANA 1997 (V) USA (E03)

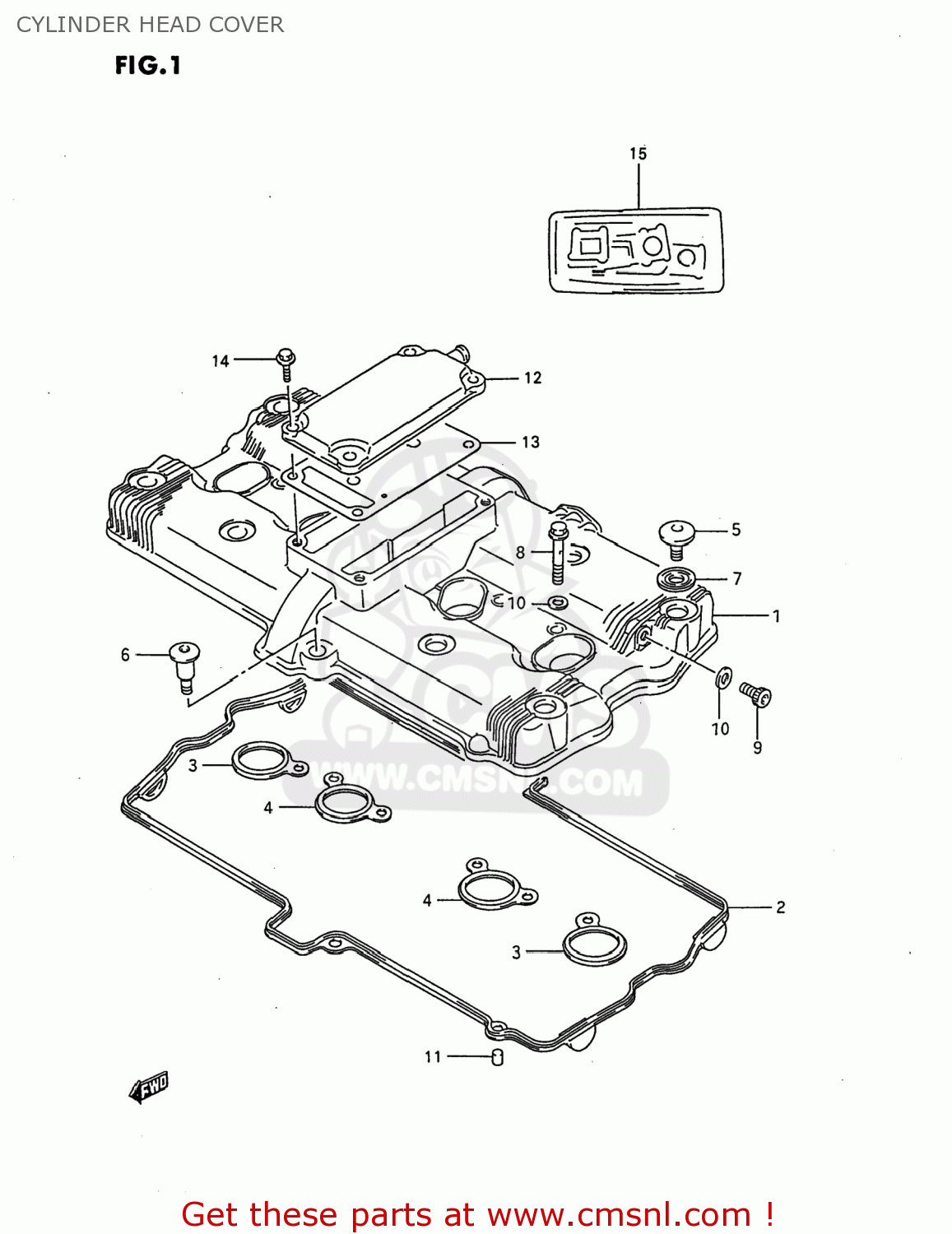

Cylinder head cover diagram GSX750F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1117148B03
ref: 1

COVER,CYLINDER HEAD

€ 422.00

1117306B02
ref: 2
11173-06B03

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

1117827A01
ref: 3
11178-27A02

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

1117927A02
ref: 4
11179-27A03

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

0936008009
ref: 8
11180-27820

BOLT,UNION 8X35

€ 26.50

0713008123
ref: 9
07130-0812A

PLUG

€ 2.50

0916808008
ref: 10
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

0422108129
ref: 11

PIN

€ 2.00

1117631301
ref: 12

COVER,BREATHER

€ 31.50

1117748B00H17
ref: 13

GASKET,BREATHER (NAS)

€ 10.50

0155006203
ref: 14
01550-0620A

BOLT

€ 2.50

1140117830
ref: 15
11401-17836

GASKET SET (NAS)

€ 296.50
