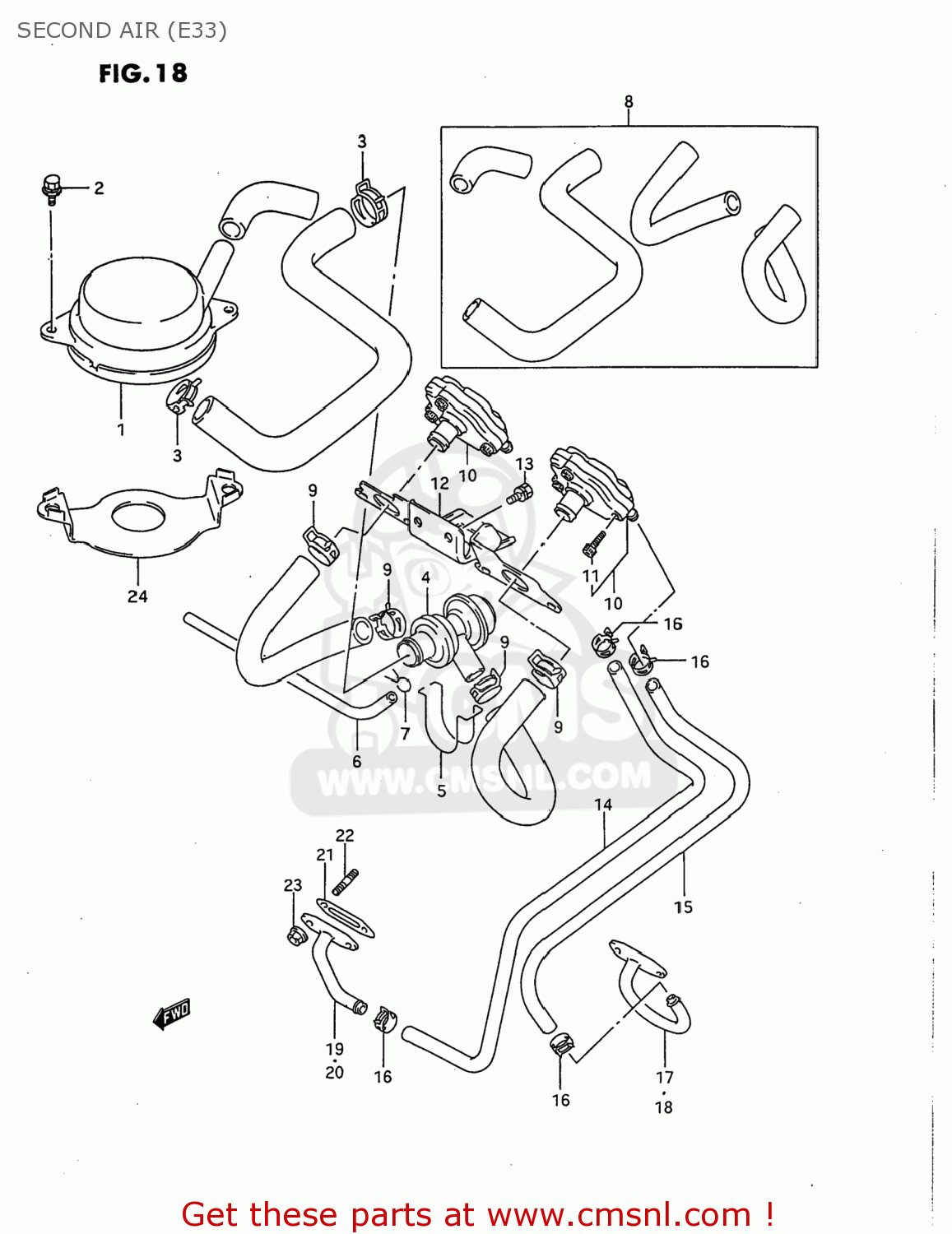

SECOND AIR (E33)

ref

part #

description

quantity

1

1870017C03
ref: 1

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

2

0158006163
ref: 2
01580-0616A

BOLT

€ 2.50

3

0940125402
ref: 3

CLIP

€ 3.00

4

1851020C00
ref: 4

VALVE ASSY,AIR SWITCHING

€ 194.00

5

1852217C00
ref: 5

CLAMP,SWITCHING VALVE

€ 8.00

6

0935945852600
ref: 6

HOSE(4.5X8.5X600)

€ 9.00

7

0940107401
ref: 7

CLAMP

€ 2.00

8

1842019810
ref: 8

HOSE SET,SECOND AIR NO.2

€ 0.00

9

0940121403
ref: 9

CLIP

€ 3.00

10

1845048B00
ref: 10

VALVE ASSY,2ND AIR REED

€ 125.50

11

0713005167
ref: 11

BOLT

€ 2.50

12

1847019C01
ref: 12

(CA) B/K REED VALVE

€ 16.00

13

0157006163
ref: 13
01570-0616A

BOLT

€ 2.50

14

1844620810
ref: 14

HOSE,SECOND AIR NO.1,INLET

€ 18.50

15

1844620C00
ref: 15
18446-20810

HOSE,SECOND AIR NO.1,INLET

€ 18.50

16

0940113413
ref: 16
09401-13417

CLIP

€ 2.50

17

1841020C00
ref: 17

PIPE,2ND AIR NO.1

€ 36.00

18

1844020C00
ref: 18

PIPE,2ND AIR NO.4

€ 36.00

19

1842020C00
ref: 19

PIPE,SECOND AIR NO.2

€ 0.00

20

1843020C00
ref: 20

PIPE,SECOND AIR NO.3

€ 0.00

21

1844117C10
ref: 21
18441-17C11

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

22

0142106163
ref: 22
01421-0616A

STUD BOLT

€ 2.00

23

0831610063
ref: 23
08316-1006B

NUT

€ 2.50

24

1876141C00
ref: 24

HOLDER,SECOND AIR CLEANER

€ 0.00
