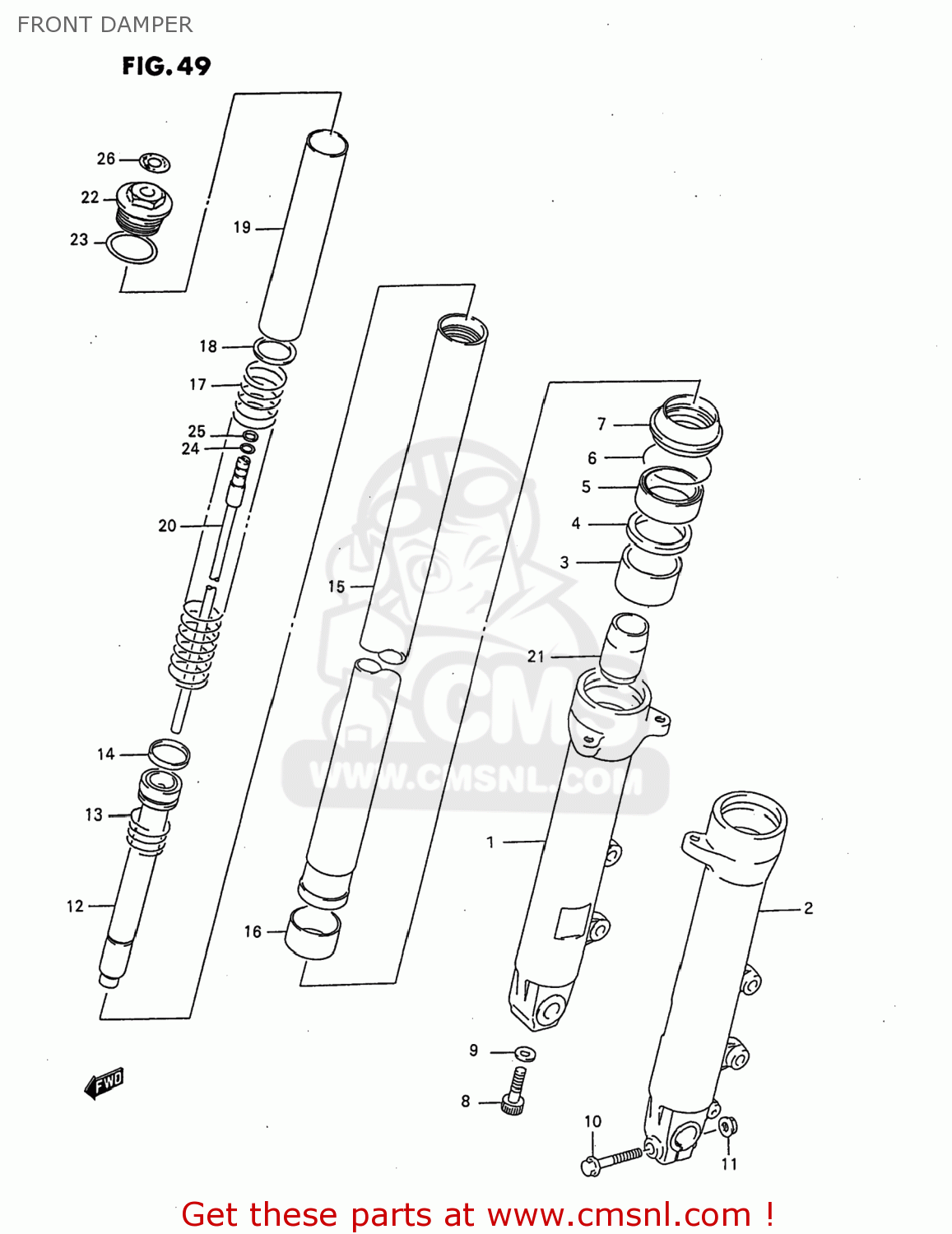

FRONT DAMPER

ref

part #

description

quantity

5110320C2013L
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

5110320C2013L
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

5110420C2013L
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

5110420C2013L
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

1

5113020C2013L
ref: 1

TUBE,OUTER,RIGHT

€ 321.00

2

5114020C2013L
ref: 2

TUBE,OUTER,L

€ 377.00

3

5115248B31
ref: 3

BUSH,GUIDE

€ 20.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115308D00
ref: 5

SEAL,OIL

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157147D50
ref: 7

SEAL,DUST

€ 18.00

8

5114748130
ref: 8

BOLT(8X27)

€ 3.50

9

5114836011
ref: 9

GASKET (NAS)

€ 4.00

10

0155008507
ref: 10

BOLT

€ 3.50

11

0831610087
ref: 11

NUT

€ 2.50

12

5119420C20
ref: 12

SEAT,UNDER

€ 0.00

13

5117748B31
ref: 13

SPRING,REBOUND

€ 12.00

14

5119619C00
ref: 14

RING,PISTON

€ 4.50

15

5111020C20
ref: 15

TUBE,INNER

€ 234.50

16

5112148B31
ref: 16

BUSH,SLIDE

€ 15.50

17

5117120C20
ref: 17

SPRING,FRONT

€ 41.00

18

5119219C00
ref: 18

JOINT,SPRING

€ 3.50

19

5117634C00
ref: 19

SPACER,SPRING

€ 6.00

20

5211120C20
ref: 20

ROD,INNER

€ 49.00

21

5119548B31
ref: 21

PIECE,OIL LOCK

€ 19.00

22

5135120C20
ref: 22

BOLT,FORK

€ 48.00

23

5111712C00
ref: 23

O RING

€ 3.00

24

0928006005
ref: 24

O RING(D:1.9,ID:5.7)

€ 2.50

25

5116920C20
ref: 25

RING,STOPPER(ID:6.1,D:0.6)

€ 4.00

26

5114920C20
ref: 26

LABEL,S-H

€ 5.00

all assemblies
