AIR CLEANER
GSXR1000 2013 (L3) USA (E03)

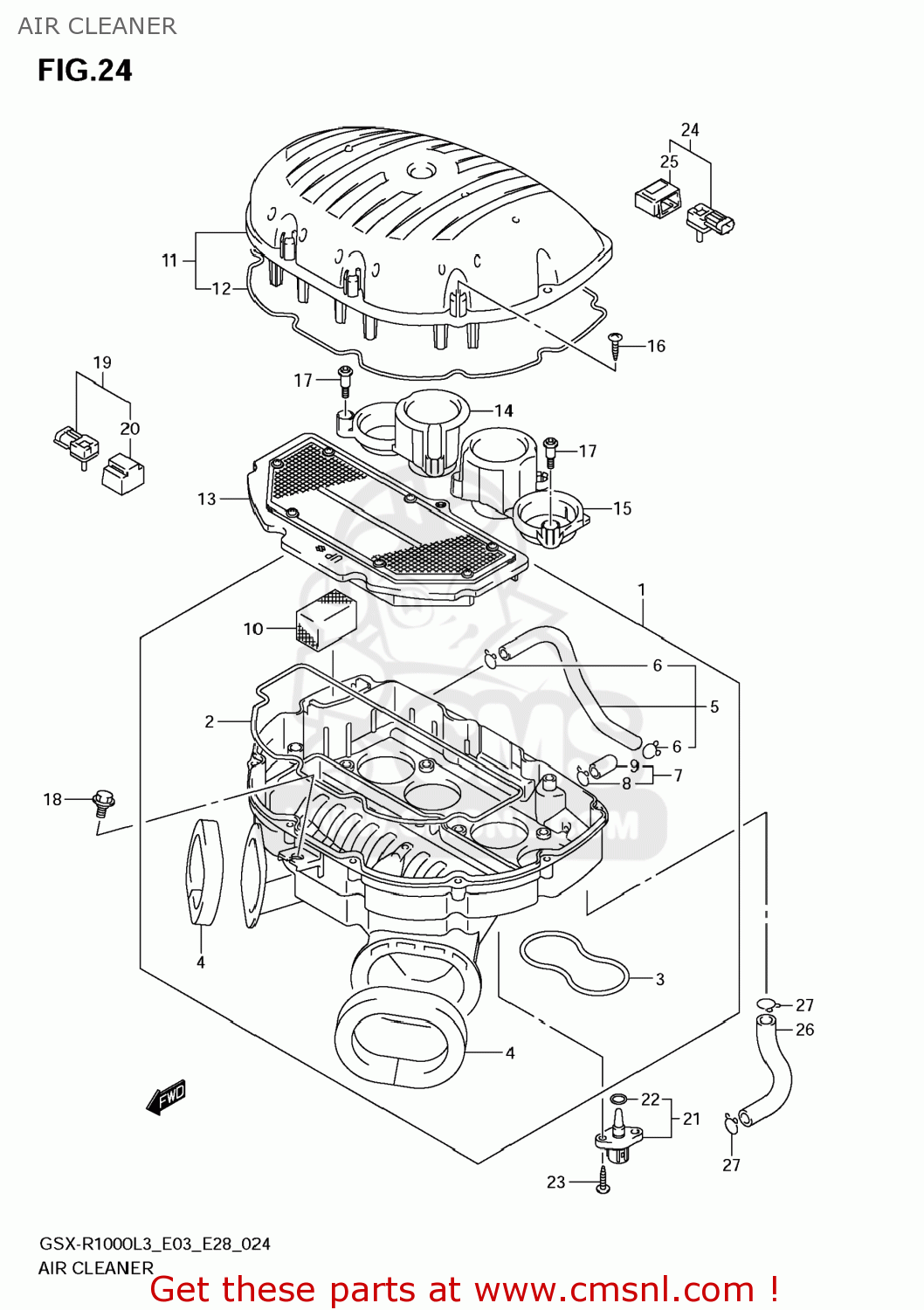

Air cleaner diagram GSXR1000 2013 (L3) USA (E03)
AIR CLEANER GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1372047H00
ref: 1
CASE,AIR CLEAN
€ 116.50
2
1375647H00
ref: 2
GASKET,CASE (NAS)
€ 4.00
3
1375747H00
ref: 3
GASKET,CASE (NAS)
€ 3.50
4
1373601H00
ref: 4
CUSHION,DUCT
€ 9.00
5
1385047H00
ref: 5
TUBE,BREATHER
€ 20.50
6
0940114101
ref: 6
CLIP
€ 2.00
7
1385619B03
ref: 7
PLUG ASSY,DRAIN
€ 6.00
8
0940114101
ref: 8
CLIP
€ 2.00
9
1385941B10
ref: 9
PLUG
€ 5.50
10
1378847H00
ref: 10
FILTER,BREATHER
€ 4.50
11
1374047H00
ref: 11
CAP,AIR CLEANER
€ 43.00
12
1374647H00
ref: 12
GASKET,CAP (NAS)
€ 7.00
13
1378047H10
ref: 13
FILTER ASSY
€ 34.00
14
1388147H00
ref: 14
FUNNEL,OUTLET,R
€ 38.00
15
1388247H00
ref: 15
FUNNEL,OUTLET,L
€ 38.00
16
035410525B
ref: 16
SCREW
€ 2.50
17
1383147H00
ref: 17
BOLT,AIR CLEANER CASE
€ 6.50
18
0911106089
ref: 18
BOLT(6X16)
€ 2.50
19
1563029G40
ref: 19
SENSOR,BOOST
€ 182.00
20
1562529G40
ref: 20
COVER
€ 8.00
21
1365014G10
ref: 21
SENSOR,AIR TEMP
€ 34.50
22
1365514G10
ref: 22
O RING
€ 6.00
23
035110516A
ref: 23
SCREW
€ 2.50
24
1563029G30
ref: 24
SENSOR,AIR PRESSURE
€ 169.00
25
1562529G30
ref: 25
COVER
€ 8.00
26
1369747H00
ref: 26
HOSE,ISC VALVE
€ 15.00
27
0940115101
ref: 27
CLIP
€ 2.00
