HEADLAMP (GSX-R1000L3 E03)
GSXR1000 2013 (L3) USA (E03)

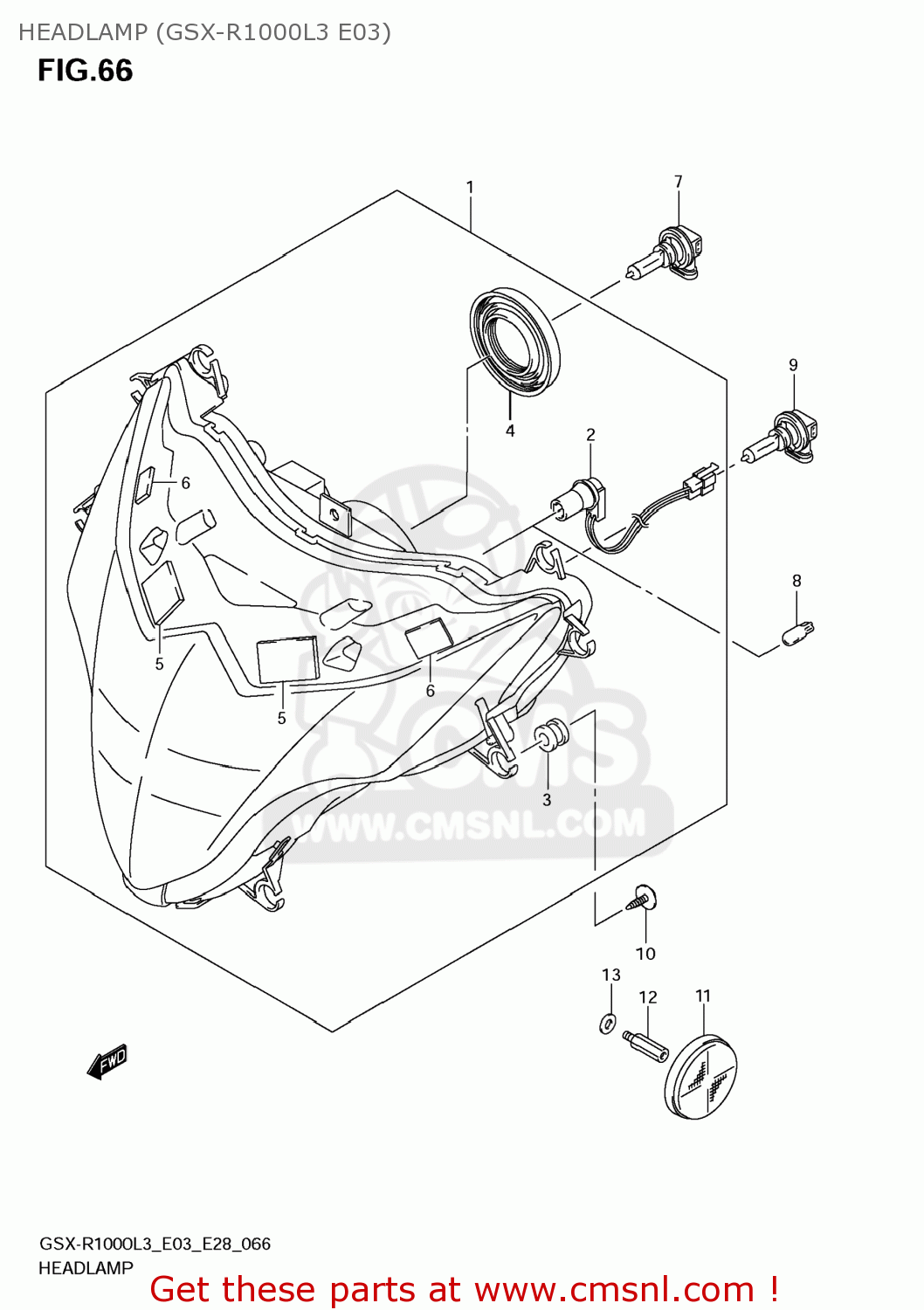

Headlamp (gsx-r1000l3 e03) diagram GSXR1000 2013 (L3) USA (E03)
HEADLAMP (GSX-R1000L3 E03) GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510047H31999
ref: 1
HEADLAMP ASSY
€ 423.50
2
3611829G51
ref: 2
CORD ASSY
€ 15.00
3
0932009039
ref: 3
CUSHION
€ 6.00
4
3517976F10
ref: 4
COVER,SOCKET
€ 6.00
5
4457202F01
ref: 5
FASTENER
€ 8.50
6
4457237H00
ref: 6
FASTENER,COWLING
€ 5.50
7
0947112210
ref: 7
BULB(12V55W,H11)
€ 48.50
8
0947112216
ref: 8
BULB(12V5W)
€ 5.00
9
0947112222
ref: 9
BULB(12V65W,H9)
€ 35.50
10
0913605062
ref: 10
SCREW(5X15)
€ 2.50
11
3595014A11
ref: 11
REFLEX REFLECTOR ASSY,FR SIDE
€ 11.00
12
0911906109
ref: 12
BOLT
€ 8.00
13
0916008043
ref: 13
WASHER(8.5X18X1)
€ 1.50
