CRANKSHAFT
GSXR1000 2013 (L3) USA (E03)

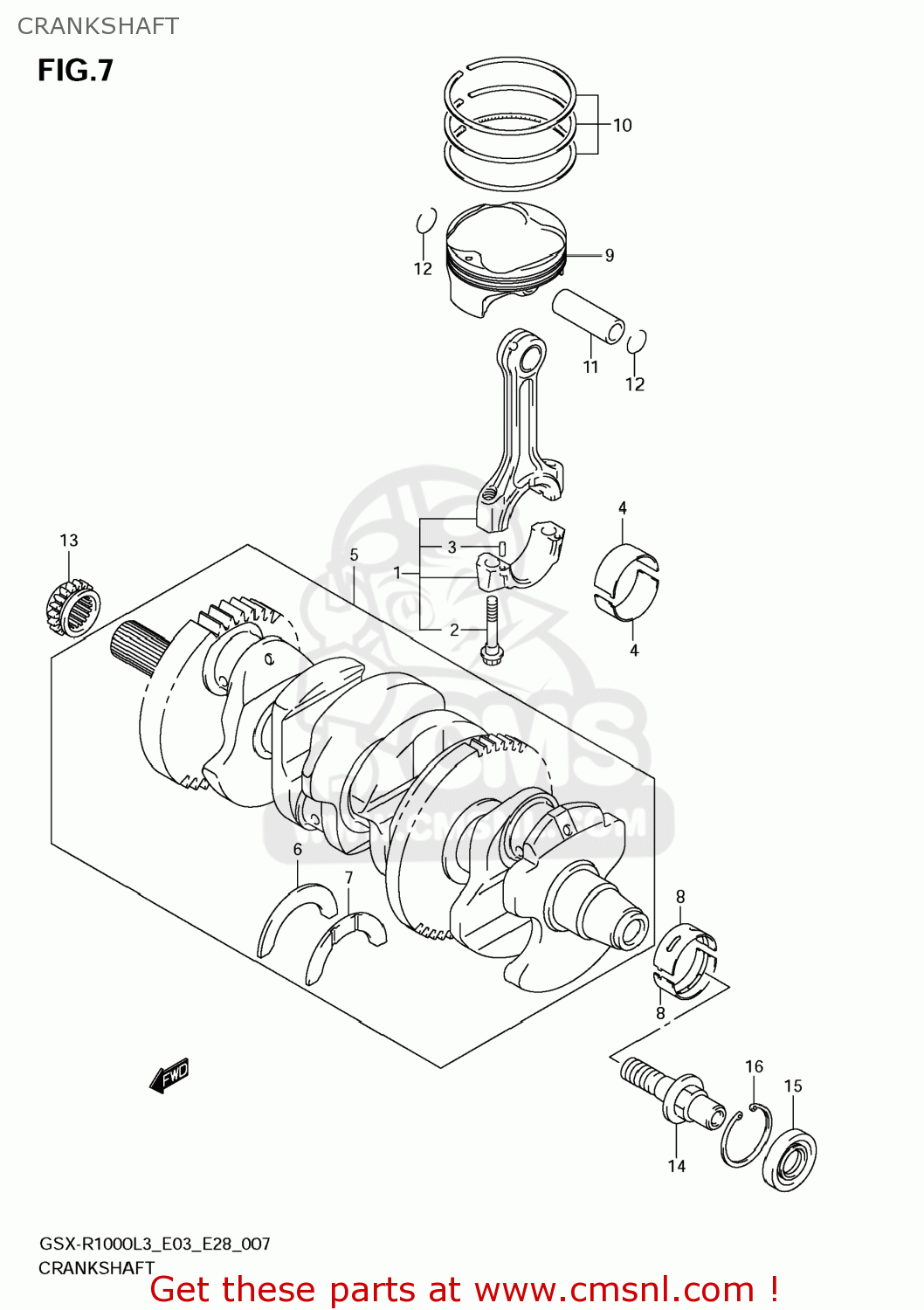

Crankshaft diagram GSXR1000 2013 (L3) USA (E03)
CRANKSHAFT GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216047H00
ref: 1
CONNECTING ROD ASSY
€ 230.50
2
1216324F10
ref: 2
BOLT,CONNECTING ROD
€ 13.00
3
1216527A50
ref: 3
PIN,CONNECTING ROD
€ 1.00
4-1
1216447H000A0
ref: 4-1
BEARING,CRANK PIN
€ 12.00
4-2
1216447H000B0
ref: 4-2
BEARING,CRANK PIN
€ 12.00
4-3
1216447H000C0
ref: 4-3
BEARING,CRANK PIN
€ 12.50
4-4
1216447H000D0
ref: 4-4
BEARING,CRANK PIN
€ 12.00
5
1200047860
ref: 5
CRANKSHAFT SET
€ 1,427.50
6
1222848B000E0
ref: 6
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-1
1222848B000B0
ref: 7-1
BEARING,CRANK THRUST(BROWN)
€ 7.50
7-2
1222848B000C0
ref: 7-2
BEARING,CRANK THRUST(RED)
€ 7.50
7-3
1222848B000D0
ref: 7-3
BEARING,CRANK THRUST(YELLOW)
€ 7.50
7-4
1222848B000E0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-5
1222848B000F0
ref: 7-5
BEARING,CRANK THRUST(BLUE)
€ 7.50
7-6
1222848B000G0
ref: 7-6
BEARING,CRANK THRUST(ORANGE)
€ 7.50
7-7
1222848B000H0
ref: 7-7
BEARING,CRANK THRUST(BLACK)
€ 7.50
8-1
1222941G000A0
ref: 8-1
BEARING,CRANKSHAFT
€ 17.50
8-2
1222941G000B0
ref: 8-2
BEARING,CRANKSHAFT
€ 16.00
8-3
1222941G000C0
ref: 8-3
BEARING,CRANKSHAFT
€ 17.00
8-4
1222941G000D0
ref: 8-4
BEARING,CRANKSHAFT
€ 17.00
8-5
1222941G000E0
ref: 8-5
BEARING,CRANKSHAFT
€ 19.50
9
1211147H500F0
ref: 9
PISTON
€ 136.50
10
1214047H10
ref: 10
RING SET,PISTON
€ 81.00
11
1215147H00
ref: 11
PIN,PISTON
€ 14.00
12
0938115001
ref: 12
CIRCLIP
€ 1.50
13
1273147H00
ref: 13
SPROCKET,CAM CHAIN DRIVE
€ 66.50
14
1222447H00
ref: 14
BOLT,GENERATOR ROTOR
€ 50.50
15
0928214007
ref: 15
SEAL,OIL(14X30X8)
€ 31.50
16
0833141329
ref: 16
CIRCLIP
€ 2.00
