CLUTCH
GSXR1000 2013 (L3) USA (E03)

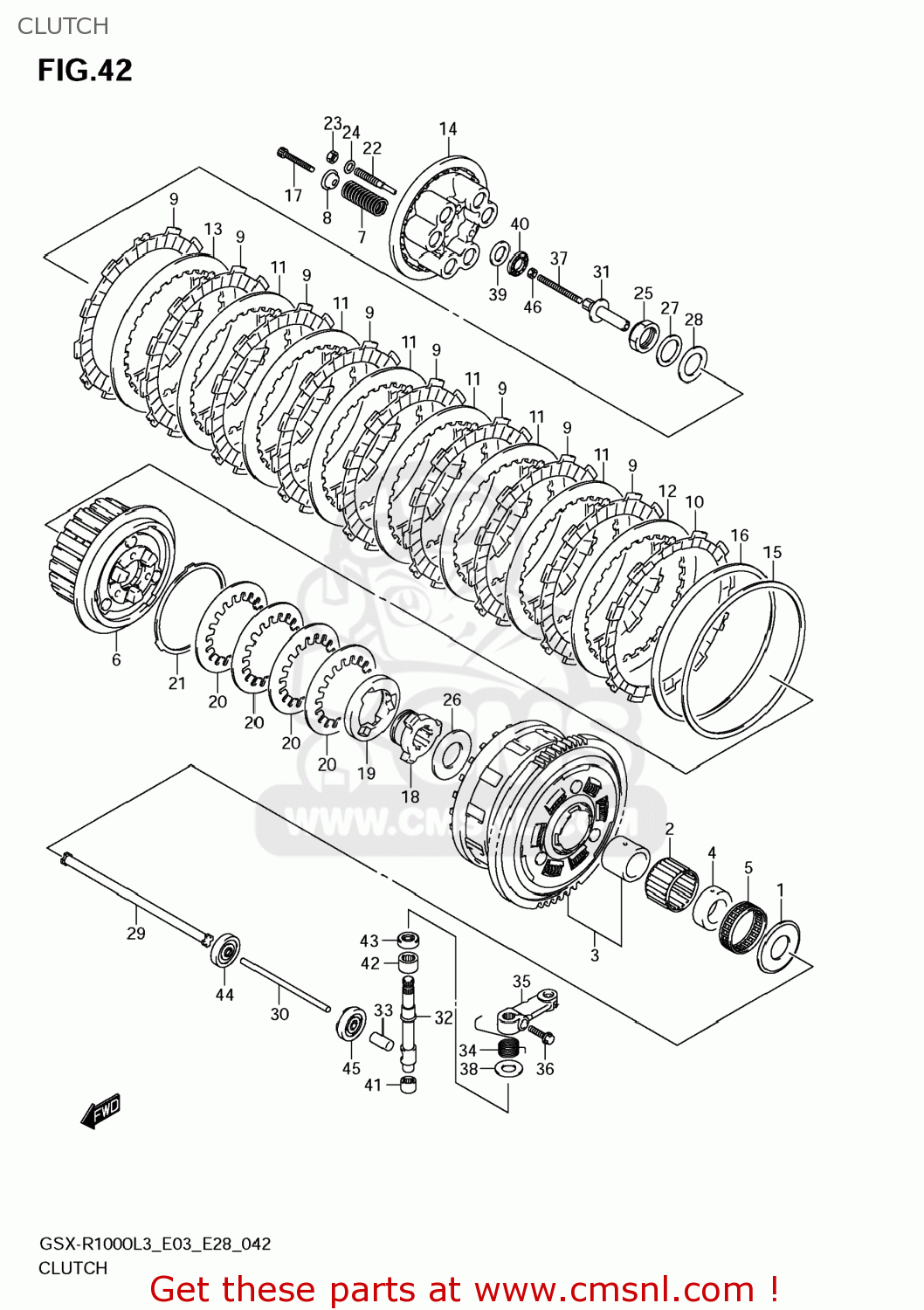

Clutch diagram GSXR1000 2013 (L3) USA (E03)
CLUTCH GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0916025073
ref: 1
WASHER(25X54X2.4)
€ 8.50
2
0926335015
ref: 2
BEARING(35X40X26.8)
€ 20.00
3
2120047810
ref: 3
GEAR ASSY,PRI DRIVEN
€ 485.50
4
2125301H10
ref: 4
SPACER,OIL PUMP DRIVE SPROCKET
€ 21.50
5
0926335045
ref: 5
BEARING(35X40X12)
€ 11.50
6
2141041G40
ref: 6
HUB,CLUTCH SLEEVE
€ 205.00
7
2141347H10
ref: 7
SPRING,CLUTCH
€ 8.00
8
2141429F00
ref: 8
WASHER
€ 4.50
9
2144142F20
ref: 9
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 14.50
10
2144242F10
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 13.50
11
2145147H30
ref: 11
PLATE,CLUTCH DRIVEN NO.1 (NAS)
€ 7.00
12
2145147H10
ref: 12
PLATE,CLUTCH DRIVEN NO.2 (NAS)
€ 7.00
13
2145147H40
ref: 13
PLATE,CLUTCH DRIVEN NO.3 (NAS)
€ 9.00
14
2146241G10
ref: 14
DISC,CLUTCH PRESSURE
€ 57.50
15
2147102F20
ref: 15
SEAT,WAVE WASHER
€ 11.50
16
2147202F20
ref: 16
WASHER,CLUTCH PLATE WAVE
€ 16.00
17
2148241G10
ref: 17
BOLT,CLUTCH SPRING
€ 3.00
18
2161141G20
ref: 18
CAM,CLUTCH DRIVE
€ 98.50
19
2161241G20
ref: 19
CAM,CLUTCH DRIVEN
€ 82.00
20
2162141G00
ref: 20
WASHER,CAM REACTION WAVE
€ 12.00
21
2162441G20
ref: 21
WASHER,CAM REACTION SEAT
€ 13.50
22
2162241G10
ref: 22
LIFTER,CLUTCH PRESSURE DISC
€ 11.00
23
2162341G00
ref: 23
NUT,CL PRESS DISC LIFTER LOCK
€ 2.00
24
0918108139
ref: 24
SHIM(8.8X14X1)
€ 1.50
25
0915924010
ref: 25
NUT
€ 11.00
26
0916025056
ref: 26
WASHER(25X50X2.5)
€ 9.50
27
0916025077
ref: 27
WASHER(25X41X2.5)
€ 6.50
28
0916424008
ref: 28
WASHER
€ 3.00
29
2311027A00
ref: 29
ROD,CLUTCH
€ 17.00
30
2311147H00
ref: 30
ROD,CLUTCH PUSH,L
€ 17.00
31
2312141G30
ref: 31
PIECE,CLUTCH PUSH
€ 53.00
32
2312241G00
ref: 32
CAMSHAFT,CLUTCH RELEASE
€ 36.50
33
2312341G00
ref: 33
CAP,CLUTCH PUSH ROD
€ 9.00
34
2312541G00
ref: 34
SPRING,CLUTCH RELEASE RETURN
€ 3.00
35
2327141G31
ref: 35
ARM,CLUTCH RELEASE
€ 47.50
36
0910306223
ref: 36
BOLT(6X20)
€ 2.50
37
0913406015
ref: 37
SCREW(6X73)
€ 5.50
38
0916010020
ref: 38
WASHER(10.5X24X1)
€ 2.00
39
0916015045
ref: 39
WASHER(15.5X28X1)
€ 4.00
40
0926315003
ref: 40
BEARING(15X28X2)
€ 7.00
41
0926310014
ref: 41
BEARING(10X14X10)
€ 12.00
42
0926312027
ref: 42
BEARING(12X18X12)
€ 6.00
43
0928210012
ref: 43
SEAL,OIL(10X20X6)
€ 7.50
44
0928306010
ref: 44
SEAL,OIL(6X34X10.5)
€ 14.00
45
0928510004
ref: 45
SEAL,OIL(10X17X5)
€ 3.50
46
083100006A
ref: 46
NUT
€ 2.00
