GEAR SHIFTING
GSXR1000 2013 (L3) USA (E03)

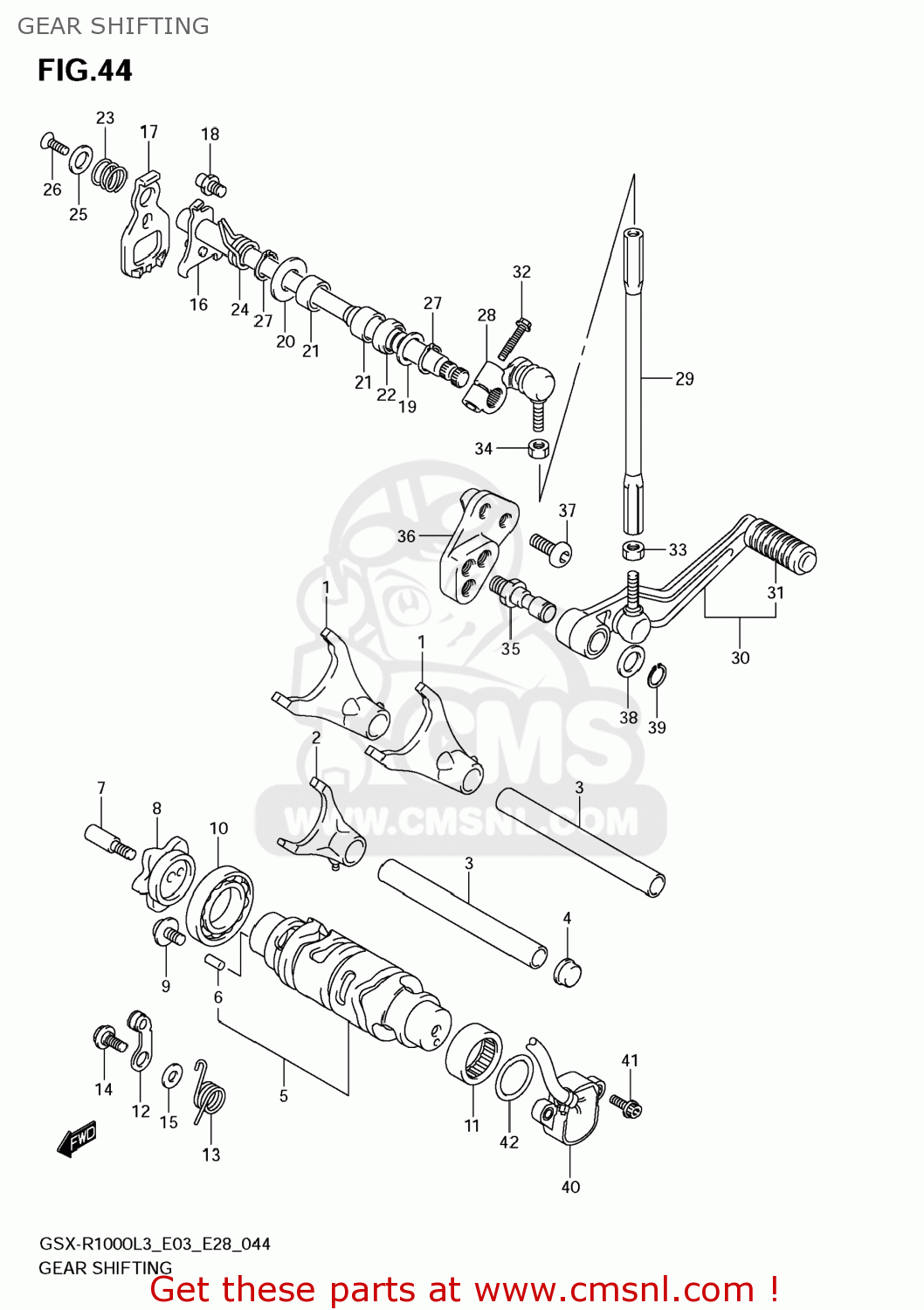

Gear shifting diagram GSXR1000 2013 (L3) USA (E03)
GEAR SHIFTING GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521101H10
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2523101H01
ref: 2
FORK,GEAR SHIFT NO.3
€ 74.00
3
2541127A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
4
2571237H00
ref: 4
PLUG,GEAR SHIFT FORK SHAFT
€ 4.50
5
2531047H00
ref: 5
CAM,GEAR SHIFT
€ 178.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2531242F01
ref: 7
BOLT,GEAR SHIFT CAM PLATE
€ 5.50
8
2538113E30
ref: 8
PLATE,GEAR SHIFT CAM
€ 30.00
9
0913606147
ref: 9
SCREW(6X12)
€ 2.00
10
0926225006
ref: 10
BEARING(25X47X8)
€ 24.00
11
0926325018
ref: 11
BEARING(25X32X12)
€ 17.50
12
2535006G00
ref: 12
STOPPER,SHIFT CAM
€ 19.00
13
2535501H00
ref: 13
SPRING,GEAR SHIFT CAM STOPPER
€ 3.00
14
0911106041
ref: 14
BOLT(6X14.3)
€ 3.00
15
0821106141
ref: 15
WASHER
€ 2.50
16
2551047H00
ref: 16
SHAFT,GEAR SHIFT
€ 98.50
17
2551206G10
ref: 17
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
18
2567101011
ref: 18
STOPPER,GEAR SHIFT ARM
€ 3.00
19
0916014016
ref: 19
WASHER(14X29X0.8)
€ 1.50
20
0918114195
ref: 20
SHIM(14X24X1)
€ 1.50
21
0926314027
ref: 21
BEARING(14X20X12)
€ 11.00
22
0928314005
ref: 22
SEAL,OIL(14X22X7.3)
€ 6.50
23
2551801H00
ref: 23
SPRING,GEAR SHIFT PLATE RETURN
€ 2.00
24
0944420001
ref: 24
SPRING
€ 5.00
25
2551901H00
ref: 25
WASHER,GEAR SHIFT SHAFT END
€ 3.00
26
0912606014
ref: 26
SCREW(6X16)
€ 2.00
27
083313114A
ref: 27
CIRCLIP
€ 2.00
28
2552001H00
ref: 28
ARM,GEAR SHIFT LINK
€ 62.50
29
2552501H00
ref: 29
ROD,GEAR SHIFT LINK
€ 32.00
30
2560047H00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 106.50
31
2565220C00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 8.00
32
015470625A
ref: 32
BOLT
€ 2.50
33
0914006025
ref: 33
NUT
€ 2.00
34
0914006020
ref: 34
NUT
€ 2.50
35
2561703F10
ref: 35
SHAFT,GEAR SHIFT LEVER
€ 10.50
36
2568147H01
ref: 36
BRACKET,GEAR SHIFT LEVER
€ 59.50
37
0910608167
ref: 37
BOLT(8X20)
€ 3.50
38
0916012011
ref: 38
WASHER(12.5X20X1)
€ 1.50
39
083313112A
ref: 39
CIRCLIP
€ 2.00
40
3773014J00
ref: 40
SENSOR ASSY,GEAR POSITION
€ 87.50
41
0910605023
ref: 41
BOLT(5X16)
€ 2.50
42
0928026005
ref: 42
O RING(D:2.4,ID:26.2)
€ 2.50
