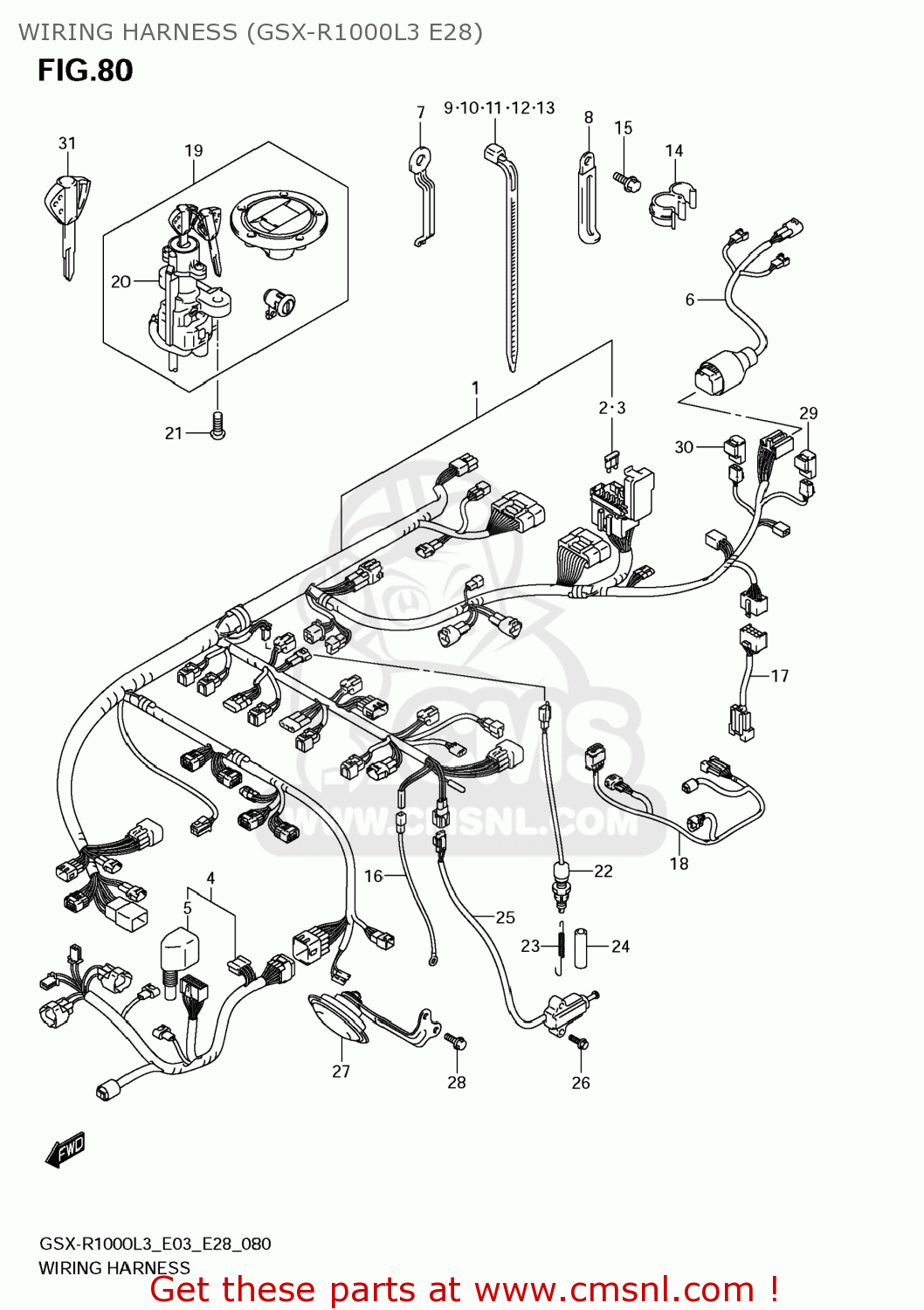

WIRING HARNESS (GSX-R1000L3 E28)
GSXR1000 2013 (L3) USA (E03)
Wiring harness (gsx-r1000l3 e28) diagram GSXR1000 2013 (L3) USA (E03)
WIRING HARNESS (GSX-R1000L3 E28) GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661047HB0
ref: 1
HARNESS,WIRING
€ 720.00
2
0948110501
ref: 2
FUSE(10A)
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
€ 1.00
4
3662047H10
ref: 4
HARNESS,WIRING NO.2
€ 155.00
5
3661847H00
ref: 5
COVER,CONNECTOR
€ 13.00
6
3685547H00
ref: 6
WIRE,RR COMB
€ 43.00
7
0940306322
ref: 7
CLAMP
€ 5.00
8
0940406429
ref: 8
CLAMP(L:45)
€ 2.50
9
0940714403
ref: 9
CLAMP(L:125)
€ 2.50
10
0940711401
ref: 10
CLAMP(L:95)
€ 2.50
11
0940718402
ref: 11
CLAMP(L:165)
€ 2.50
12
0940719401
ref: 12
CLAMP(L:190)
€ 2.00
13
0940719401
ref: 13
CLAMP(L:190)
€ 2.00
14
0940800242
ref: 14
CLAMP
€ 2.50
15
015470612A
ref: 15
BOLT
€ 2.00
16
3685147H00
ref: 16
WIRE,OIL PRESSURE SWITCH LEAD
€ 10.50
17
3685747H00
ref: 17
WIRE,RELAY LEAD
€ 62.50
18
3685947H10
ref: 18
WIRE,ISC LEAD
€ 119.50
19
3710140821
ref: 19
LOCK SET
€ 370.50
20
3710041G11
ref: 20
LOCK ASSY,STEERING
€ 120.00
21
0913908016
ref: 21
BOLT(8X20)
€ 3.50
22
3774031D00
ref: 22
SWITCH ASSY,STOP LAMP
€ 20.50
23
0944306087
ref: 23
SPRING
€ 3.00
24
0935250823600
ref: 24
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
25
3784047H00
ref: 25
SWITCH ASSY,SIDE STAND
€ 94.50
26
0910306286
ref: 26
BOLT(6X20)
€ 2.50
27
3850047H00
ref: 27
HORN ASSY
€ 73.00
28
015500616B
ref: 28
BOLT
€ 2.50
29
3874024X50
ref: 29
RELAY ASSY
€ 37.50
30
3874024X50
ref: 30
RELAY ASSY
€ 37.50
31
3714641G00
ref: 31
KEY,BLANK(IMMOBII)
€ 49.50
