MUFFLER (GSX-R1000ZL3 E03)
GSXR1000 2013 (L3) USA (E03)

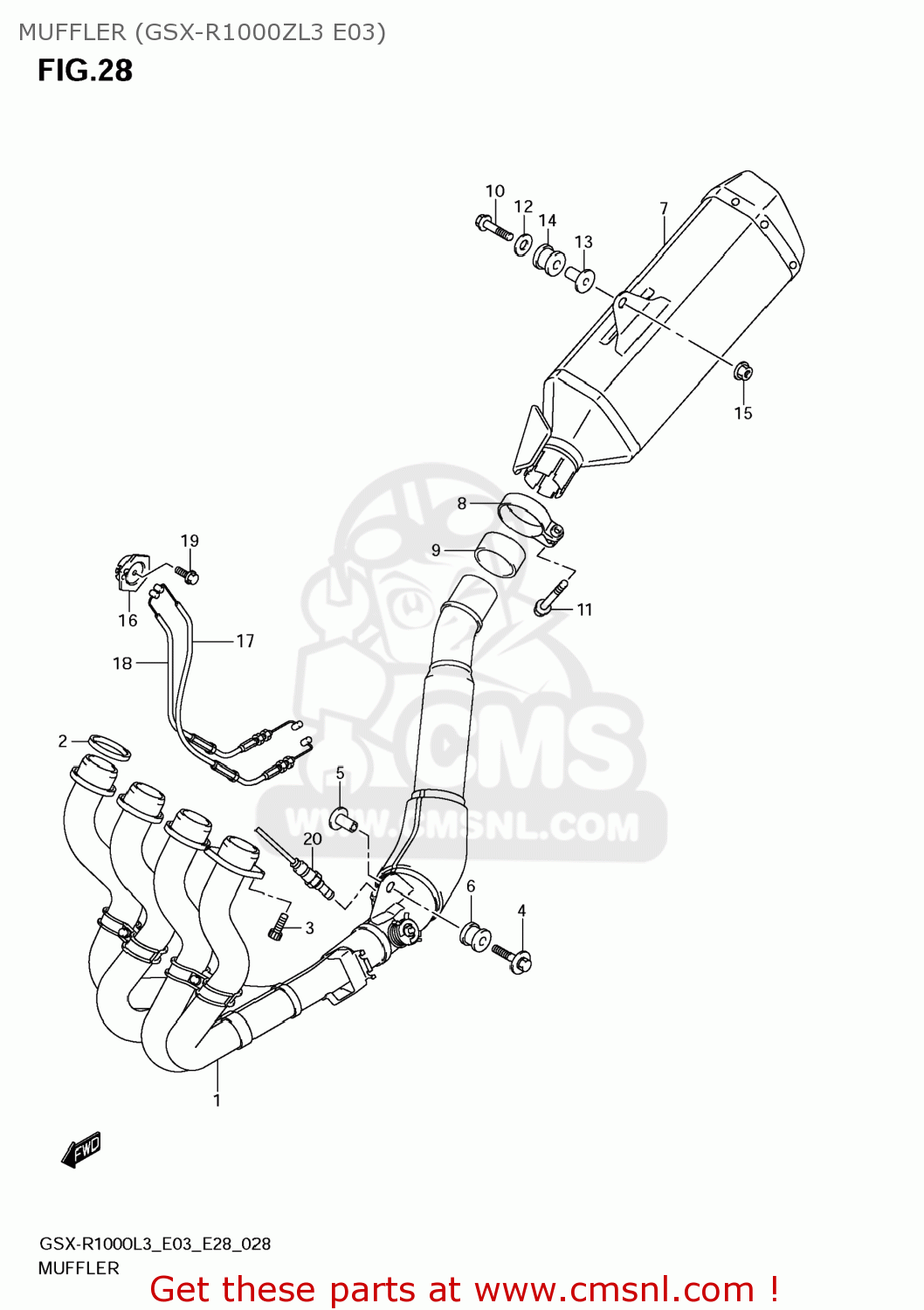

Muffler (gsx-r1000zl3 e03) diagram GSXR1000 2013 (L3) USA (E03)
MUFFLER (GSX-R1000ZL3 E03) GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410047H10
ref: 1
EXHAUST
€ 1,502.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 9.00
3
071300825A
ref: 3
BOLT
€ 3.00
4
0911808152A05
ref: 4
BOLT(8X45)
€ 5.00
5
0918008152
ref: 5
SPACER(8.6X12X24.2)
€ 6.00
6
0932012077
ref: 6
CUSHION
€ 6.50
7
1431047H40H01
ref: 7
BODY,MUFFLER
€ 1,392.00
8
1445947H00
ref: 8
CLAMP,MUFFLER CONNECTOR
€ 21.00
9
1477124F01
ref: 9
CONNECTOR,MUFFLER
€ 14.00
10
0910308358
ref: 10
BOLT(8X45)
€ 3.50
11
0910308392
ref: 11
BOLT(8X40)
€ 4.00
12
0916008142
ref: 12
WASHER(8.5X28X1.5)
€ 2.50
13
0918008152
ref: 13
SPACER(8.6X12X24.2)
€ 6.00
14
0932012048
ref: 14
CUSHION
€ 5.00
15
083612508A
ref: 15
NUT
€ 2.50
16
1126918G01
ref: 16
PULLEY,CONTROLLER
€ 17.00
17
1127647H10
ref: 17
CABLE,EXHAUST VALVE NO.1
€ 36.00
18
1127747H10
ref: 18
CABLE,EXHAUST VALVE NO.2
€ 36.00
19
015470516A
ref: 19
BOLT
€ 2.00
20
1821318H10
ref: 20
SENSOR,OXYGEN
€ 336.00
