REAR WHEEL (GSX-R1000ZL3 E03)
GSXR1000 2013 (L3) USA (E03)

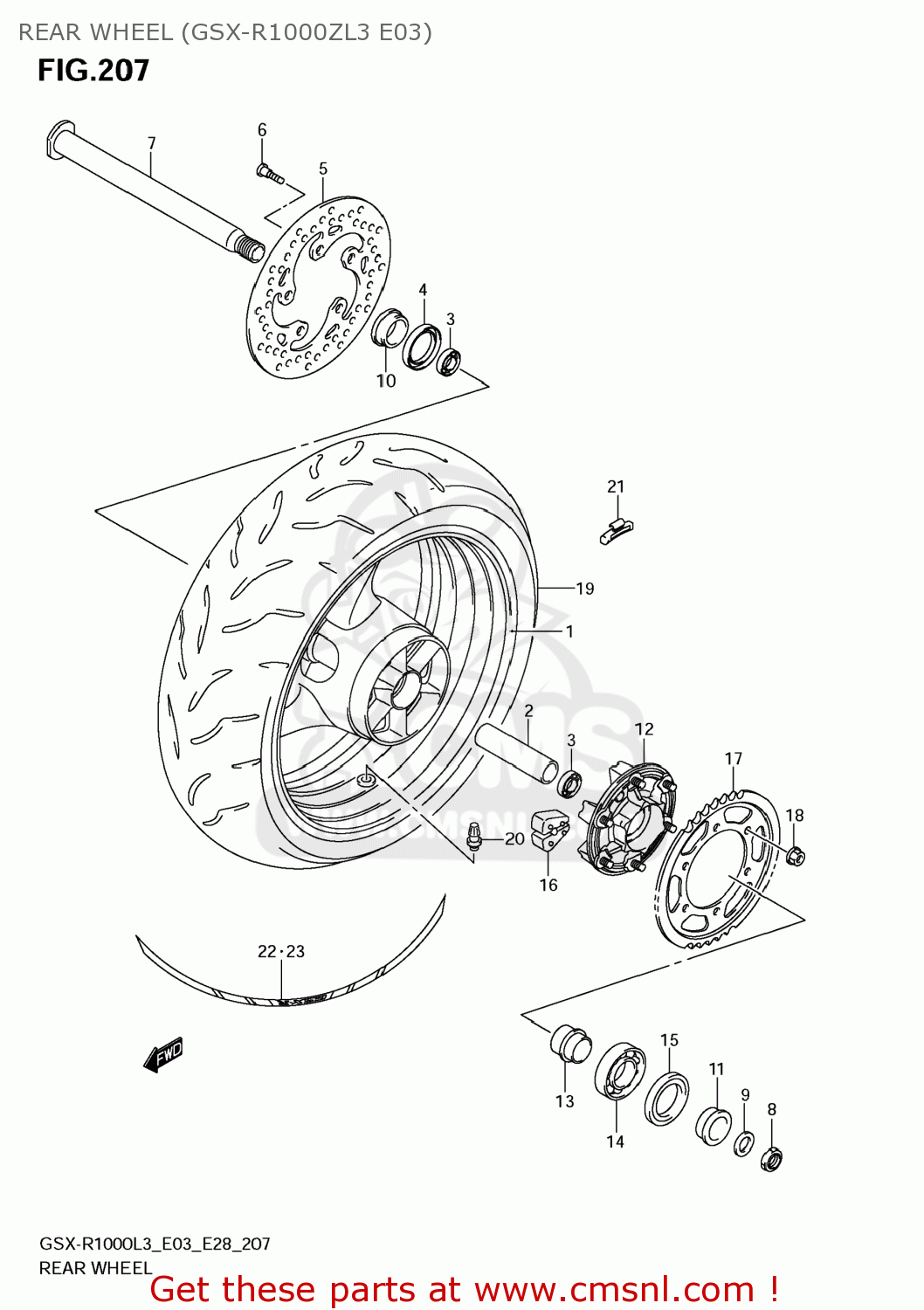

Rear wheel (gsx-r1000zl3 e03) diagram GSXR1000 2013 (L3) USA (E03)
REAR WHEEL (GSX-R1000ZL3 E03) GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411147H0028W
ref: 1
WHEEL,RR(17M/CXMT6.00)
€ 881.50
1
6411147H0028W
ref: 1
WHEEL,RR(17M/CXMT6.00)
€ 881.50
2
6473135F10
ref: 2
SPACER,RR HUB BEARING
€ 40.00
3
0926228052
ref: 3
BEARING(28X52X12)
€ 24.00
4
0928437001
ref: 4
SEAL,OIL(37X52X8)
€ 9.00
5
6921118G00
ref: 5
DISC,RR BRAKE
€ 110.50
6
0910608160
ref: 6
BOLT(8X21)
€ 3.50
7
6471149G00
ref: 7
AXLE,RR
€ 92.00
8
0915925003
ref: 8
NUT
€ 29.00
9
0916025070
ref: 9
WASHER(25.2X42X3.2)
€ 4.50
10
6474135F00
ref: 10
SPACER,RR AXLE,R
€ 9.00
11
6475147H00
ref: 11
SPACER,RR AXLE,L
€ 13.50
12
6461047H00
ref: 12
DRUM,RR SPROCKET
€ 198.50
13
6473335F00
ref: 13
RETAINER,RR SPROCKET DRUM
€ 21.50
14
0926232022
ref: 14
BEARING(32X65X17)
€ 49.00
15
0928539001
ref: 15
SEAL,OIL(39X65X7)
€ 9.00
16
6465147H10
ref: 16
ABSORBER,RR HUB SHOCK
€ 16.50
17
6451147H10
ref: 17
SPROCKET,RR(42T-530)
€ 81.00
18
083193110A
ref: 18
NUT
€ 3.00
19
6511047H10
ref: 19
TIRE,RR
€ 389.00
19
6511047H10
ref: 19
TIRE,RR
€ 389.00
20
4313024A00
ref: 20
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
21-1
5541122H00
ref: 21-1
BALANCER,WHEEL(10G)
€ 4.50
21-2
5541222H00
ref: 21-2
BALANCER,WHEEL(20G)
€ 5.50
21-3
5541322H00
ref: 21-3
BALANCER,WHEEL(30G)
€ 6.00
22
6825147H10
ref: 22
TAPE,WHEEL FR
€ 67.00
23
6825147H10
ref: 23
TAPE,WHEEL FR
€ 67.00
