Buy Suzuki GSXR Parts Online


HANDLEBAR

GSXR1000 2013 (L3) USA (E03)

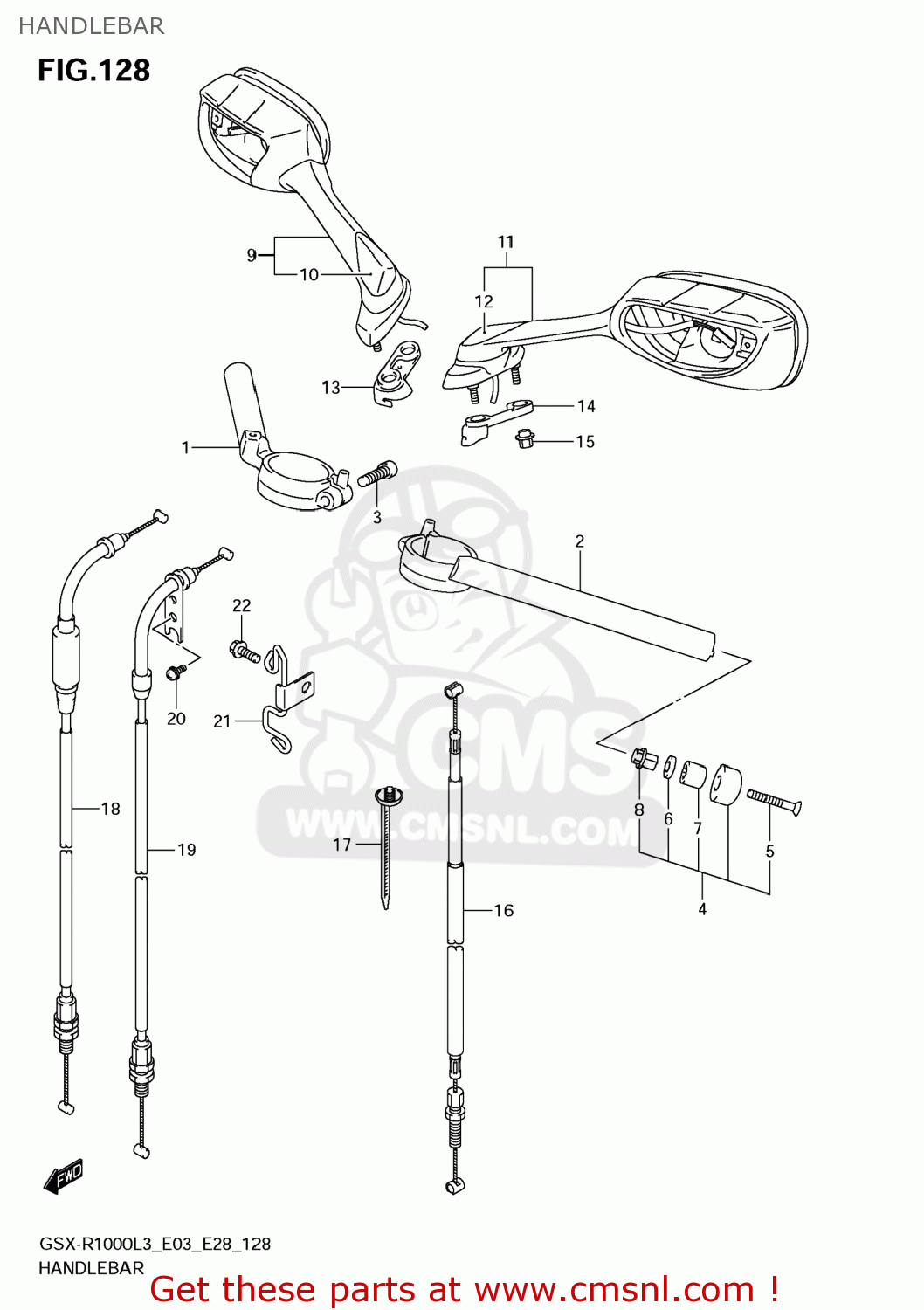

Handlebar diagram GSXR1000 2013 (L3) USA (E03)

HANDLEBAR GSXR1000 2013 (L3) USA (E03)
HANDLEBAR GSXR1000 2013 (L3) USA (E03)
HANDLEBAR GSXR1000 2013 (L3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5611147H10
ref: 1
HANDLEBAR,R
€ 73.00
2
5615147H11
ref: 2
HANDLEBAR,L
€ 73.00
3
0910608185
ref: 3
BOLT(8X32)
0910608185
€ 2.00
4
5620041822
ref: 4
BALANCER SET,HANDLEBAR
5620041822
€ 27.50
5
021220640B
ref: 5
SCREW
021220640B
€ 2.50
6
0916006131
ref: 6
WASHER(6.5X16X4)
0916006131
€ 2.50
7
5627210G00
ref: 7
EXPANDER,HANDLE BALANCER
5627210G00
€ 3.00
8
5627310G10
ref: 8
NUT,HANDLE BALANCER
5627310G10
€ 6.50
9
5650047H01
ref: 9
MIRROR ASSY,RR VIEW,R
5650047H01
€ 91.00
10
5651547H01
ref: 10
CAP,R
5651547H01
€ 6.50
11
5660047H01
ref: 11
MIRROR ASSY,RR VIEW,L
5660047H01
€ 91.00
12
5661547H01
ref: 12
CAP,L
5661547H01
€ 6.50
13
9457547H00
ref: 13
CUSHION,RR VIEW MIRRROR,R
€ 12.50
14
9457647H00
ref: 14
CUSHION,RR VIEW MIRRROR,L
€ 13.00
15
5661941G01
ref: 15
NUT,RR VIEW MIRROR
5661941G01
€ 7.00
16
5820047H20
ref: 16
CABLE ASSY,CLUTCH
5820047H20
€ 33.00
17
0940717403
ref: 17
CLAMP(L:154)
0940717403
€ 5.50
18
5830047H00
ref: 18
CABLE ASSY,THROTTLE NO.1
€ 43.00
19
5830047H10
ref: 19
CABLE ASSY,THROTTLE NO.2
5830047H10
€ 41.00
20
0912505042
ref: 20
SCREW(5X10)
0912505042
€ 2.50
21
5862047H00
ref: 21
GUIDE,CABLE
€ 15.50
22
015470612A
ref: 22
BOLT
015470612A
€ 2.00
