REAR MASTER CYLINDER
GSXR1000 2013 (L3) USA (E03)

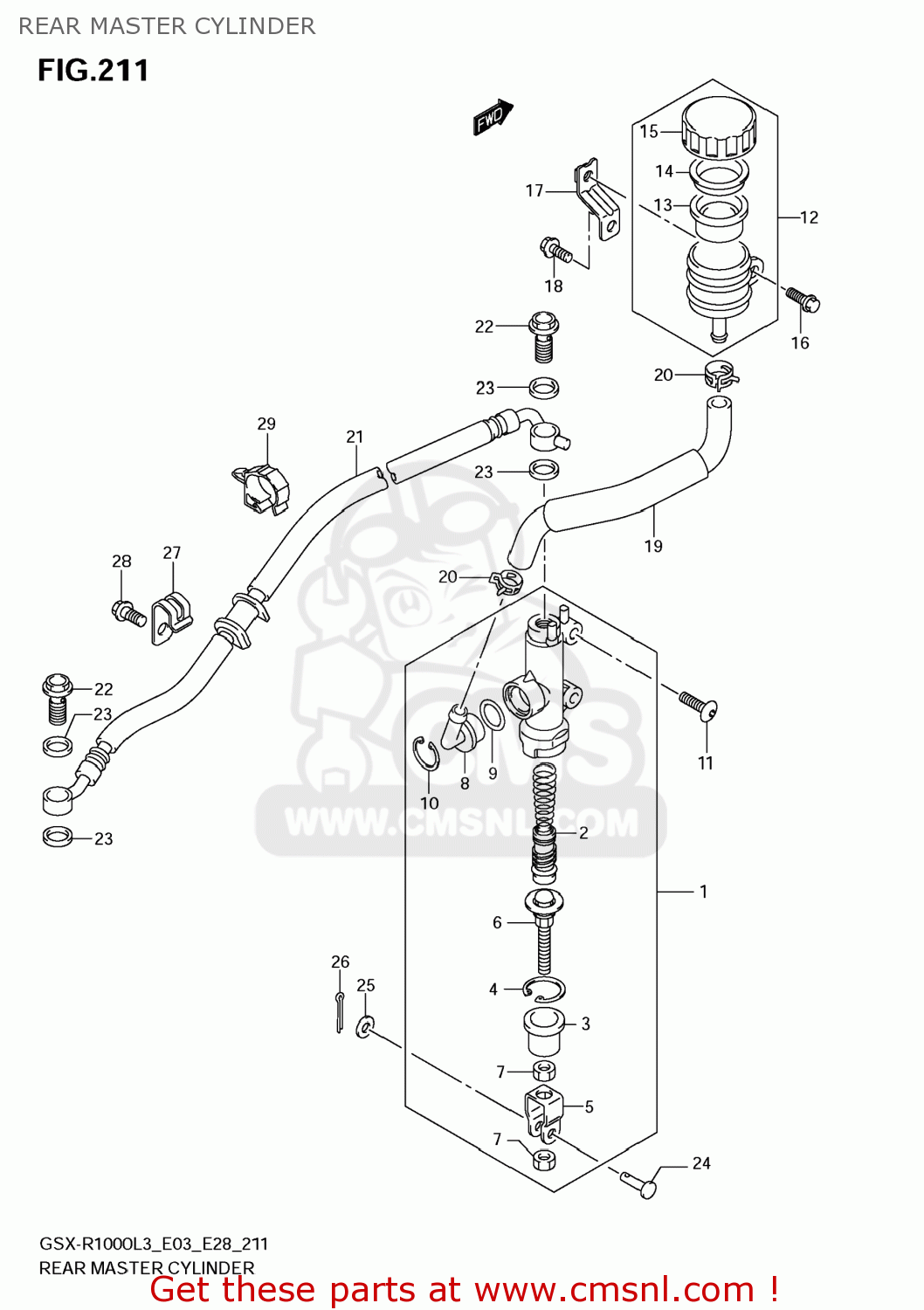

Rear master cylinder diagram GSXR1000 2013 (L3) USA (E03)
REAR MASTER CYLINDER GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960047H10
ref: 1
CYLINDER ASSY,RR MASTER
€ 154.00
2
6960034810
ref: 2
PISTON/CUP SET
€ 36.50
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6966547H00
ref: 4
CIRCLIP
€ 3.50
5
6969244H00
ref: 5
YOKE
€ 10.50
6
6967040A00
ref: 6
ROD,PUSH
€ 12.50
7
6969305A00
ref: 7
NUT
€ 1.50
8
6967200B20
ref: 8
CONNECTOR
€ 5.00
9
6968634200
ref: 9
O RING
€ 3.50
10
6967400B20
ref: 10
CIRCLIP
€ 3.00
11
0913906125
ref: 11
SCREW(6X20)
€ 3.00
12
6974047H00
ref: 12
TANK ASSY,RR RESERVOIR
€ 49.50
13
6966700B20
ref: 13
DIAPHRAGM
€ 9.50
14
6966800B20
ref: 14
PLATE
€ 4.00
15
6966947H00
ref: 15
CAP
€ 6.50
16
015470616A
ref: 16
BOLT
€ 2.00
17
6975047H00
ref: 17
BRACKET,RR RESERVOIR TANK
€ 11.00
18
015470612A
ref: 18
BOLT
€ 2.00
19
6973047H10
ref: 19
HOSE,RR RESERVOIR TANK
€ 18.50
20
0940112404
ref: 20
CLIP
€ 2.50
21
6948047H00
ref: 21
HOSE,RR BRAKE
€ 72.00
22
0936010065
ref: 22
BOLT UNION
€ 5.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
€ 2.00
24
0920006068
ref: 24
PIN(6X18.2)
€ 5.00
25
083220106A
ref: 25
WASHER
€ 2.00
26
041112015A
ref: 26
PIN
€ 1.50
27
6926821H00
ref: 27
CLAMP,RR BRAKE HOSE
€ 5.00
28
015470612A
ref: 28
BOLT
€ 2.00
29
0940317306
ref: 29
CLAMP
€ 2.50
