REAR SWINGING ARM (GSX-R1000ZL3 E33)

GSXR1000 2013 (L3) USA (E03)

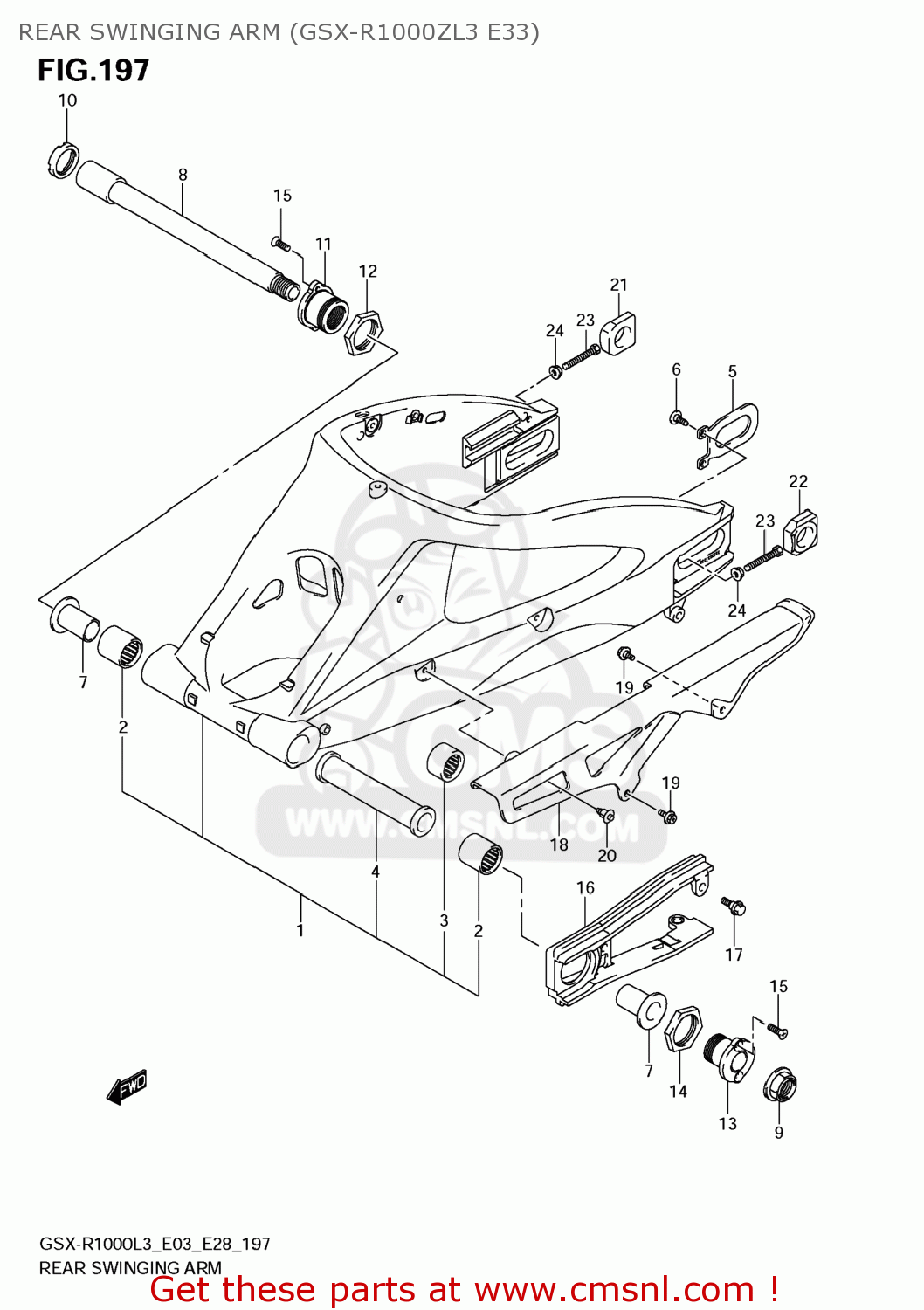

Rear swinging arm (gsx-r1000zl3 e33) diagram GSXR1000 2013 (L3) USA (E03)

REAR SWINGING ARM (GSX-R1000ZL3 E33) GSXR1000 2013 (L3) USA (E03)

REAR SWINGING ARM (GSX-R1000ZL3 E33) GSXR1000 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100047H10YAP
ref: 1

SWINGINGARM ASSY,RR

€ 1,682.50

1

6100047H10YAP
ref: 1

SWINGINGARM ASSY,RR

€ 1,682.50

2

0926327013
ref: 2

BEARING(27X35X35)

€ 23.00

3

0926320070
ref: 3

BEARING(20X27X30)

€ 21.00

4

6128141G00
ref: 4

SPACER,RR SWG PVT CTR

€ 23.50

5

6112441G00
ref: 5

PLATE,RR SWING ARM BRKT

€ 4.00

6

0912506060
ref: 6

SCREW(6X12)

€ 1.50

7

6125141G00
ref: 7

SPACER,RR SWGARM PIVOT BEARING

€ 19.00

8

6121141G00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 92.00

9

0915920006
ref: 9

NUT

€ 19.00

10

6121442E10
ref: 10

NUT,RR SWGARM PIVOT BOLT

€ 9.00

11

6121247H00
ref: 11

BOSS,RR SWINGINGARM PIVOT,R

€ 46.50

12

6121341G00
ref: 12

NUT,RR SWGARM PIVOT BOSS,R

€ 14.50

13

6121447H00
ref: 13

BOSS,RR SWINGINGARM PIVOT,L

€ 40.00

14

6121541G00
ref: 14

NUT,RR SWGARM PIVOT BOSS,L

€ 13.50

15

021220512B
ref: 15

SCREW

€ 2.00

16

6127347H00
ref: 16

BUFFER,CHAIN TOUCH DEFENSE

€ 16.00

17

0911106072
ref: 17

BOLT(6X17.8)

€ 2.00

18

6131121H00
ref: 18

CASE,CHAIN

€ 28.50

19

0911106107
ref: 19

BOLT(6X12)

€ 3.00

20

09409083085ES
ref: 20

CLIP(BLACK)

€ 2.00

21

6144540F20
ref: 21

ADJUSTER,CHAIN

€ 31.00

22

6144640F10
ref: 22

ADJUSTER,CHAIN

€ 31.00

23

0910008287
ref: 23

BOLT(8X50)

€ 3.00

24

083161008A
ref: 24

NUT

€ 2.50
