FUEL PUMP
GSXR1000 2013 (L3) USA (E03)

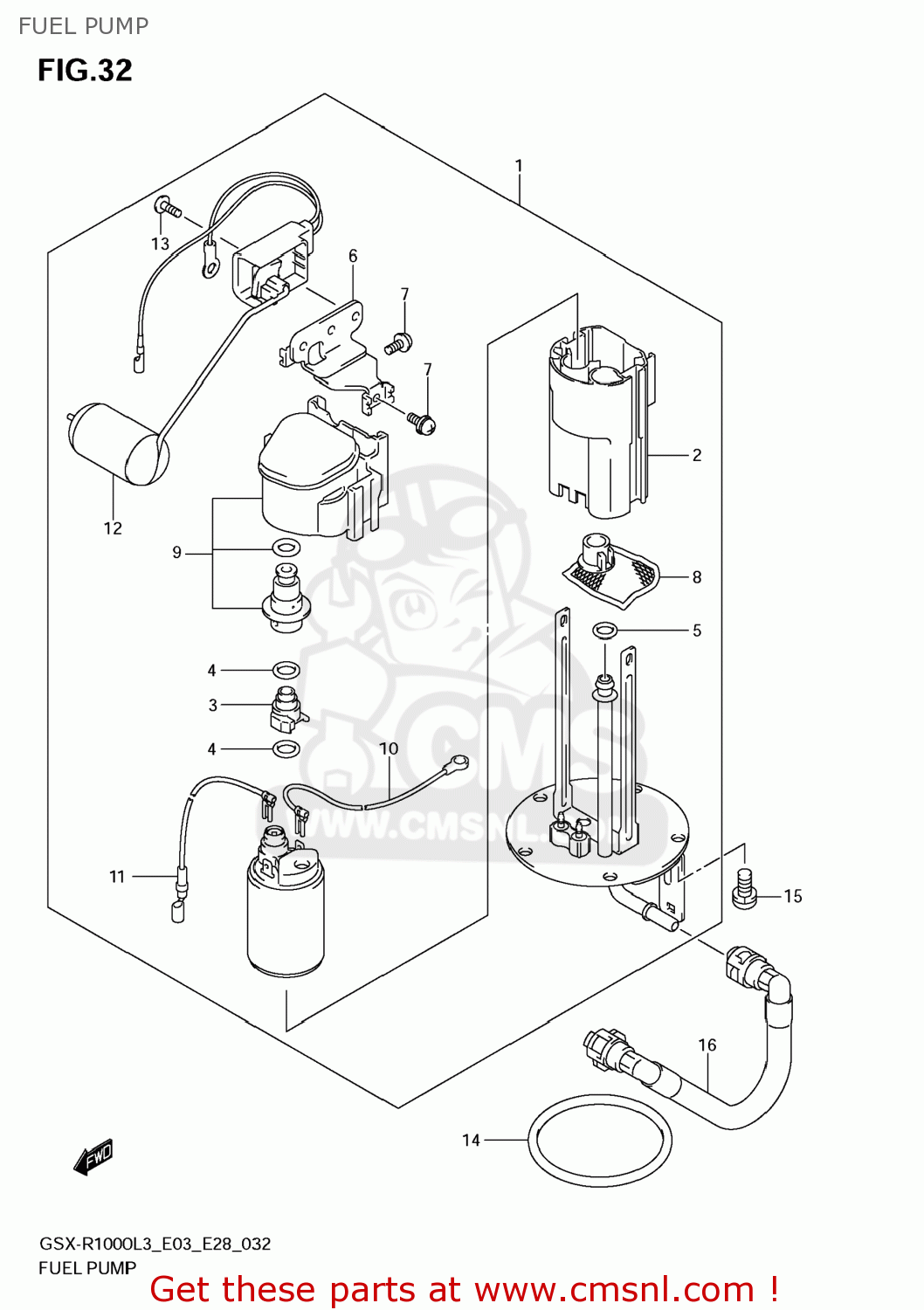

Fuel pump diagram GSXR1000 2013 (L3) USA (E03)
FUEL PUMP GSXR1000 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510047H10
ref: 1
PUMP ASSY,FUEL
€ 771.50
2
1511127G00
ref: 2
CUP
€ 25.00
3
1511205H00
ref: 3
JOINT
€ 17.00
4
1511305H00
ref: 4
O RING
€ 17.00
5
1511335F00
ref: 5
O RING
€ 7.50
6
1518147H00
ref: 6
BRACKET
€ 24.50
7
1511610F00
ref: 7
SCREW
€ 3.50
8
1542005H00
ref: 8
STRAINER
€ 20.50
9
1561014J00
ref: 9
REGULATOR,FUEL
€ 123.00
10
1511414J00
ref: 10
WIRE,EARTH
€ 16.00
11
1511508J00
ref: 11
WIRE,LEAD
€ 17.00
12
3481047H01
ref: 12
GAUGE ASSY,FUEL LEVEL SENDER
€ 170.00
13
1511644H00
ref: 13
SCREW
€ 4.50
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
071200612A
ref: 15
BOLT
€ 3.50
16
1581047H10
ref: 16
HOSE,FUEL
€ 67.50
