BATTERY

GSXR1100 1987 (H) USA (E03)

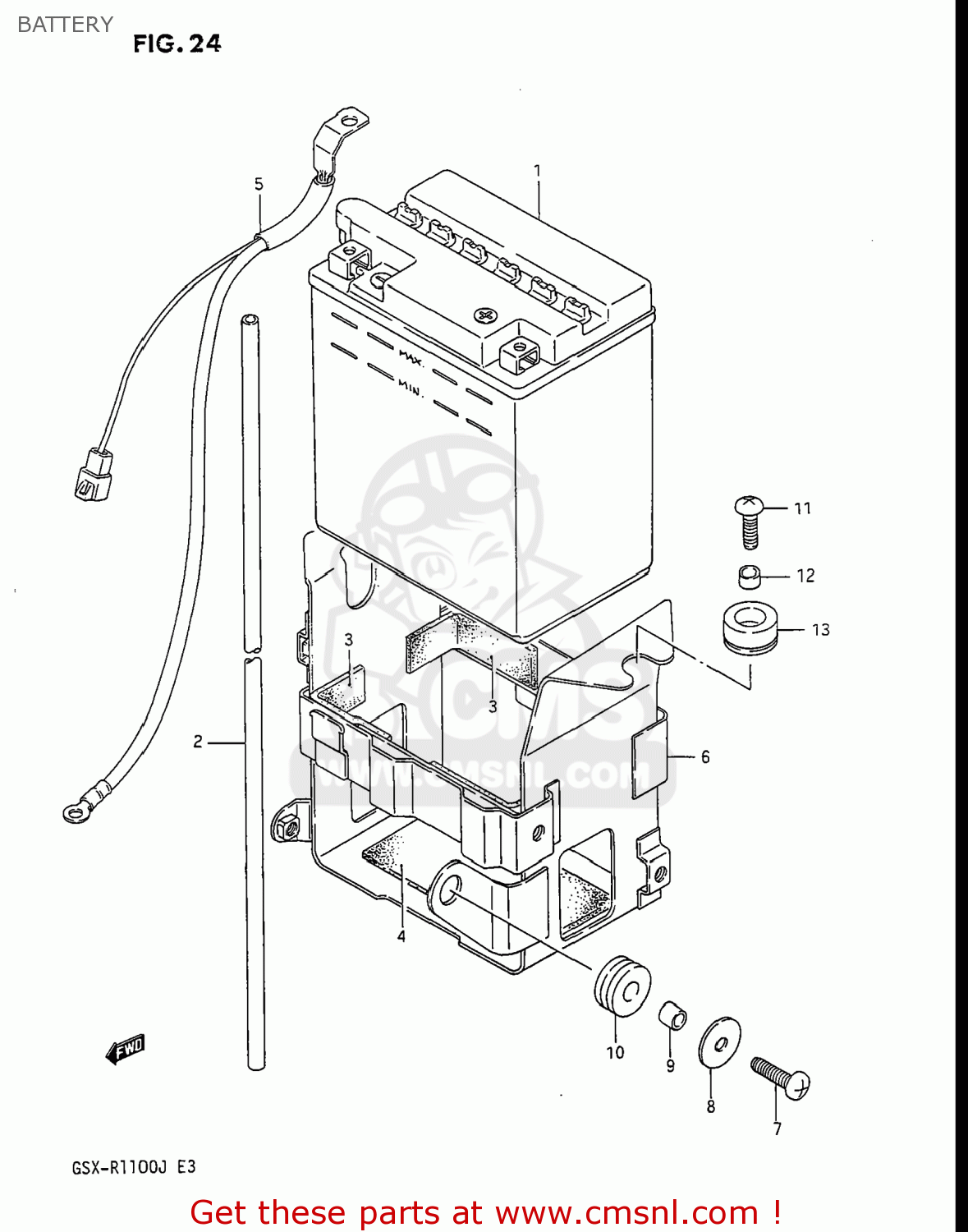

Battery diagram GSXR1100 1987 (H) USA (E03)

BATTERY GSXR1100 1987 (H) USA (E03)

BATTERY GSXR1100 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368031003
ref: 2
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

3

3365229100
ref: 3
33651-37000

PROTECTOR,20X9

€ 5.00

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

5

3386006B10
ref: 5
33860-06B12

WIRE,BATTERY MINUS LEAD

€ 17.00

6-1

4154006B00
ref: 6-1
41540-06B10

HOLDER,BATTERY

€ 48.50

6-2

4154006B10
ref: 6-2

HOLDER COMP,BATTERY

€ 48.50

7

0214206167
ref: 7

SCREW

€ 2.00

8

0916006007
ref: 8
09160-06084

WASHER

€ 2.00

9

0918006152
ref: 9
09180-06262

SPACER

€ 3.00

10

0932009021
ref: 10
09320-09502

CUSHION

€ 4.00

11

0214206207
ref: 11

SCREW

€ 2.00

12

0918006073
ref: 12
09180-06306

SPACER

€ 2.00

13

4154934A00
ref: 13

CUSHION,HOLDER BATTERY UPR

€ 4.00
