REAR SWINGING ARM
GSXR1100 1987 (H) USA (E03)

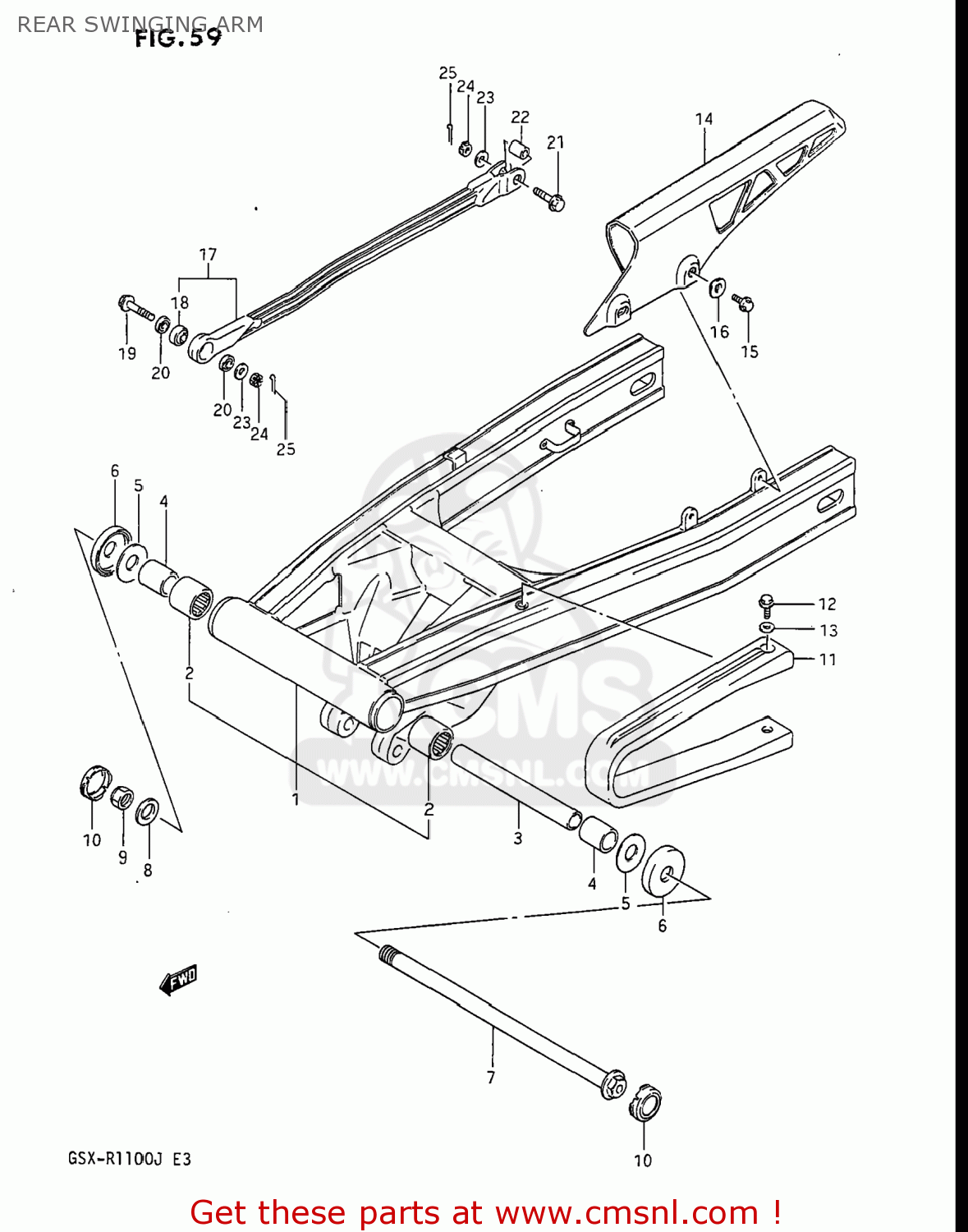

Rear swinging arm diagram GSXR1100 1987 (H) USA (E03)
REAR SWINGING ARM GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100006B00
ref: 1-1
61000-06B01
SWING ARM ASSEMBLY,REAR
€ 824.00
1-1
6100006B00
ref: 1-1
61000-06B01
SWING ARM ASSEMBLY,REAR
€ 824.00
1-2
6100006B01
ref: 1-2
ARM,REAR SWING
€ 824.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
6128206B00
ref: 3
61282-06B0V
SPACER,REAR SWING ARM PIVOT
€ 15.50
4
6125149000
ref: 4
SPACER,RR SWGARM PIVOT
€ 17.50
5
0821116381
ref: 5
WASHER
€ 2.50
6
6126249201
ref: 6
COVER,RR SWINGINGARM PIVOT
€ 8.50
7
6121106B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 55.00
8
0916014015
ref: 8
WASHER(14X27X3)
€ 4.00
9
0915914013
ref: 9
09159-14019
NUT
€ 8.50
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
€ 4.00
11
6127306B00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 40.50
12
0151706208
ref: 12
01550-06207
BOLT,REAR
€ 2.50
13
0916906032
ref: 13
09169-06071
WASHER
€ 2.50
14
6131027A01
ref: 14
CASE,CHAIN
€ 48.00
15
0151706105
ref: 15
01550-0610A
BOLT
€ 2.50
16
0916906026
ref: 16
WASHER
€ 2.00
17
6430006840
ref: 17
64300-06841
TORQUE LINK SET,REAR
€ 139.00
18
6435240411
ref: 18
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
19
0910308161
ref: 19
09103-08160
BOLT
€ 6.00
20
6433940410
ref: 20
6433940410
21
0910308161
ref: 21
09103-08160
BOLT
€ 6.00
22
6433620A00
ref: 22
SPACER,RR TORQUE LINK RR
€ 8.00
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
0831441088
ref: 24
08314-4008B
NUT 8MM
€ 2.50
25
0411120208
ref: 25
04111-2020A
PIN 20X20
€ 1.50
