CYLINDER

GSXR1100 1987 (H) USA (E03)

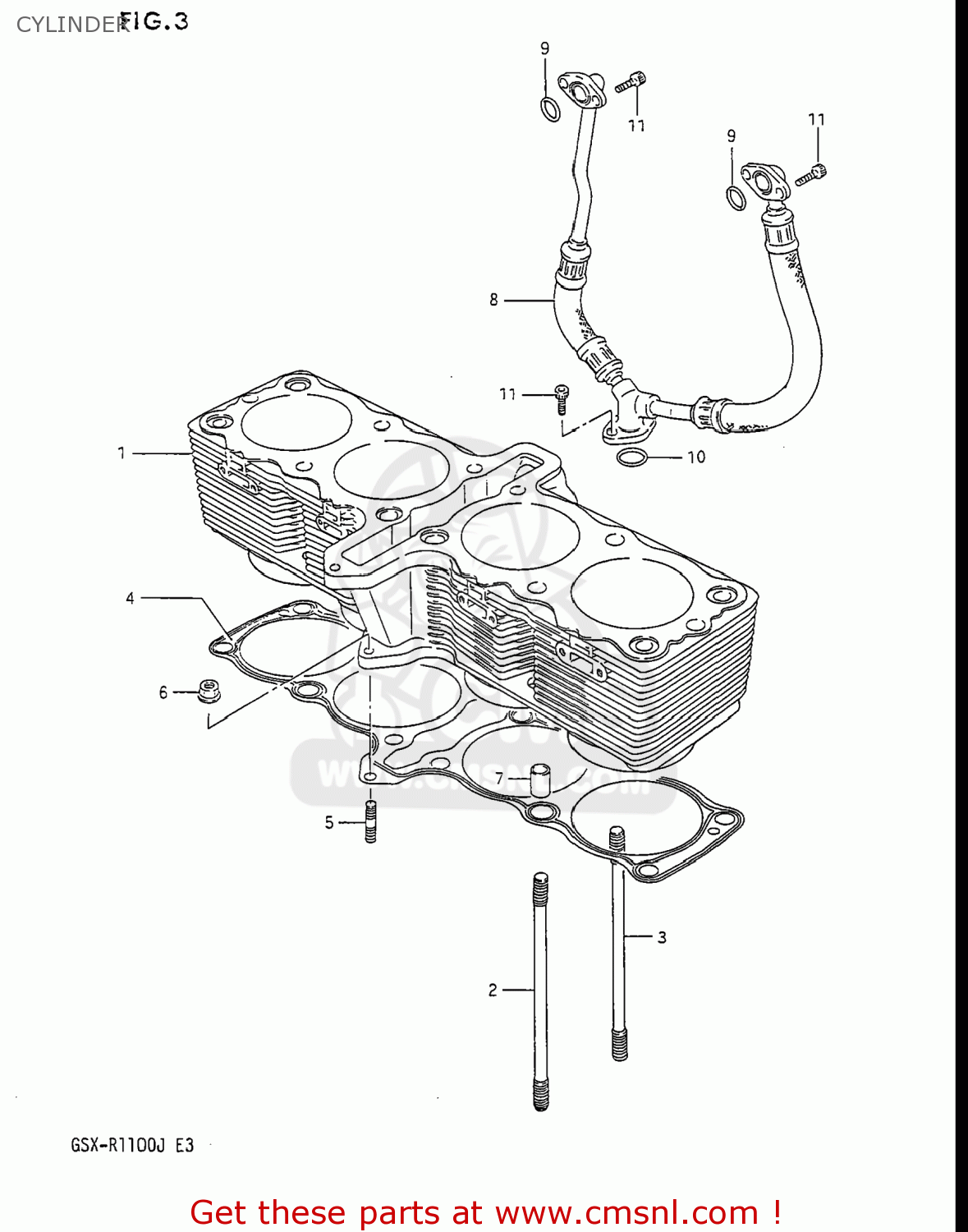

Cylinder diagram GSXR1100 1987 (H) USA (E03)

CYLINDER GSXR1100 1987 (H) USA (E03)

CYLINDER GSXR1100 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121006B01
ref: 1-1
11210-06B04

CYLINDER

€ 864.00

1-2

1121006B11
ref: 1-2

CYLINDER

€ 428.50

2

0910810081
ref: 2
09108-10145

BOLT,STUD

€ 12.50

3

0910810080
ref: 3
09108-10099

STUD

€ 15.50

4

1124127A02
ref: 4
11241-27A04

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106205
ref: 5
01421-0620A

STUD BOLT L:20

€ 2.50

6

0831616064
ref: 6
08316-1006B

NUT 6MM

€ 2.50

7

0920613006
ref: 7
09206-13017

PIN

€ 9.00

8-1

1132806B00
ref: 8-1

HOSE,OIL HEAD COOLER

€ 172.50

8-2

1132848B00
ref: 8-2
11328-48B04

HOSE

€ 283.50

9

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0711006165
ref: 11
07130-0616B

BOLT

€ 3.00
