FUEL TANK (MODEL J)
GSXR1100 1987 (H) USA (E03)

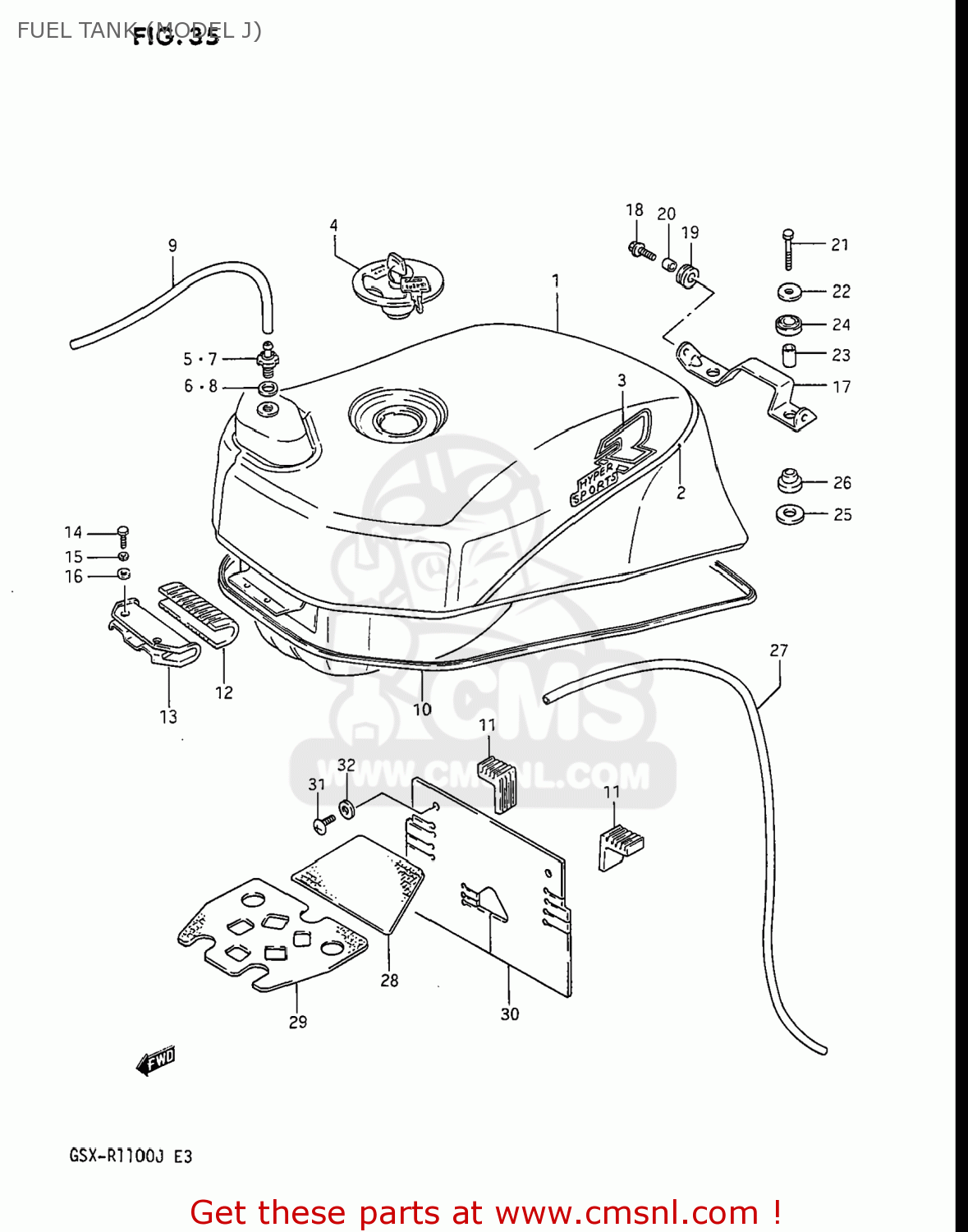

Fuel tank (model j) diagram GSXR1100 1987 (H) USA (E03)
FUEL TANK (MODEL J) GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410006B709HD
ref: 1-1
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-2
4410006B709SR
ref: 1-2
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-3
4410006B909HD
ref: 1-3
44100-06B91-9HD
TANK ASSEMBLY,FUEL
€ 506.50
1-3
4410006B909HD
ref: 1-3
44100-06B91-9HD
TANK ASSEMBLY,FUEL
€ 506.50
1-4
4410006B909SR
ref: 1-4
44110-06B11-13L
TANK ASSEMBLY,FUEL
€ 506.50
1-4
4410006B909SR
ref: 1-4
44110-06B11-13L
TANK ASSEMBLY,FUEL
€ 506.50
2-1
6811506B0022P
ref: 2-1
TAPE,FUEL TANK
€ 60.00
2-2
6811506B0033N
ref: 2-2
TAPE,FUEL TANK
€ 0.00
3-1
6811106B002GK
ref: 3-1
EMBLEM,FUEL TANK
€ 18.00
3-2
6811106B002GS
ref: 3-2
EMBLEM,FUEL TANK
€ 18.00
4
4420020A00KEY
ref: 4
44200-20841
CAP SET,FUEL TANK
€ 174.00
5
4424006B10
ref: 5
PLUG,FUEL TANK BREATHER
€ 36.00
6
0916812012
ref: 6
GASKET(12.5X20X2.5) (NAS)
€ 2.00
7
4424028A01
ref: 7
(CA) VALVE,FUEL TANK BREATHER
€ 65.00
8
0916827001
ref: 8
GASKET 27X40X2.5 (NAS)
€ 2.50
9
0935250823890
ref: 9
09352-50823-00B
HOSE
€ 13.00
10
6824127A00
ref: 10
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
11
4454527A10
ref: 11
CUSHION,FUEL TANK SIDE
€ 4.00
12
4451127A10
ref: 12
CUSHION,FUEL TANK FR
€ 7.00
13
4452127A00
ref: 13
BRACKET,FUEL TANK FR
€ 16.00
14
0110706205
ref: 14
01500-0620A
BOLT
€ 2.00
15
0832121064
ref: 15
08321-0106A
WASHER,LOCK
€ 2.00
16
0832221064
ref: 16
08322-0106B
WASHER
€ 2.00
17
4521106B00
ref: 17
BRACKET,SEAT SUPPORT,FRONT
€ 5.00
18
0913806042
ref: 18
09118-06087-XC0
BOLT
€ 3.00
19
0932008007
ref: 19
09320-08021
CUSHION
€ 4.00
20
0918006038
ref: 20
SPACER(6.1X9X7.5)
€ 2.00
21
0110706356
ref: 21
01500-0635A
BOLT ,6X35
€ 2.50
22
0916006072
ref: 22
09160-06501
WASHER (6.5X24X1.6)
€ 2.00
23
0918006072
ref: 23
09180-06271
SPACER
€ 2.00
24
0932014017
ref: 24
CUSHION
€ 3.00
25
0916012004
ref: 25
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
26
0932010038
ref: 26
CUSHION
€ 4.00
27
0935250823890
ref: 27
09352-50823-00B
HOSE
€ 13.00
28
4419127A00
ref: 28
47166-03D00
SHIELD,FUEL TANK HEAT
€ 15.50
29
4419227A00
ref: 29
44192-27A01
SHIELD,FUEL TANK HEAT
€ 25.50
30
4419406B00
ref: 30
SHIELD,HEAT NO.1
€ 14.50
31
0214206207
ref: 31
SCREW
€ 2.00
32
0916006007
ref: 32
09160-06084
WASHER
€ 2.00
