FRAME COVER (MODEL G/H)

GSXR1100 1987 (H) USA (E03)

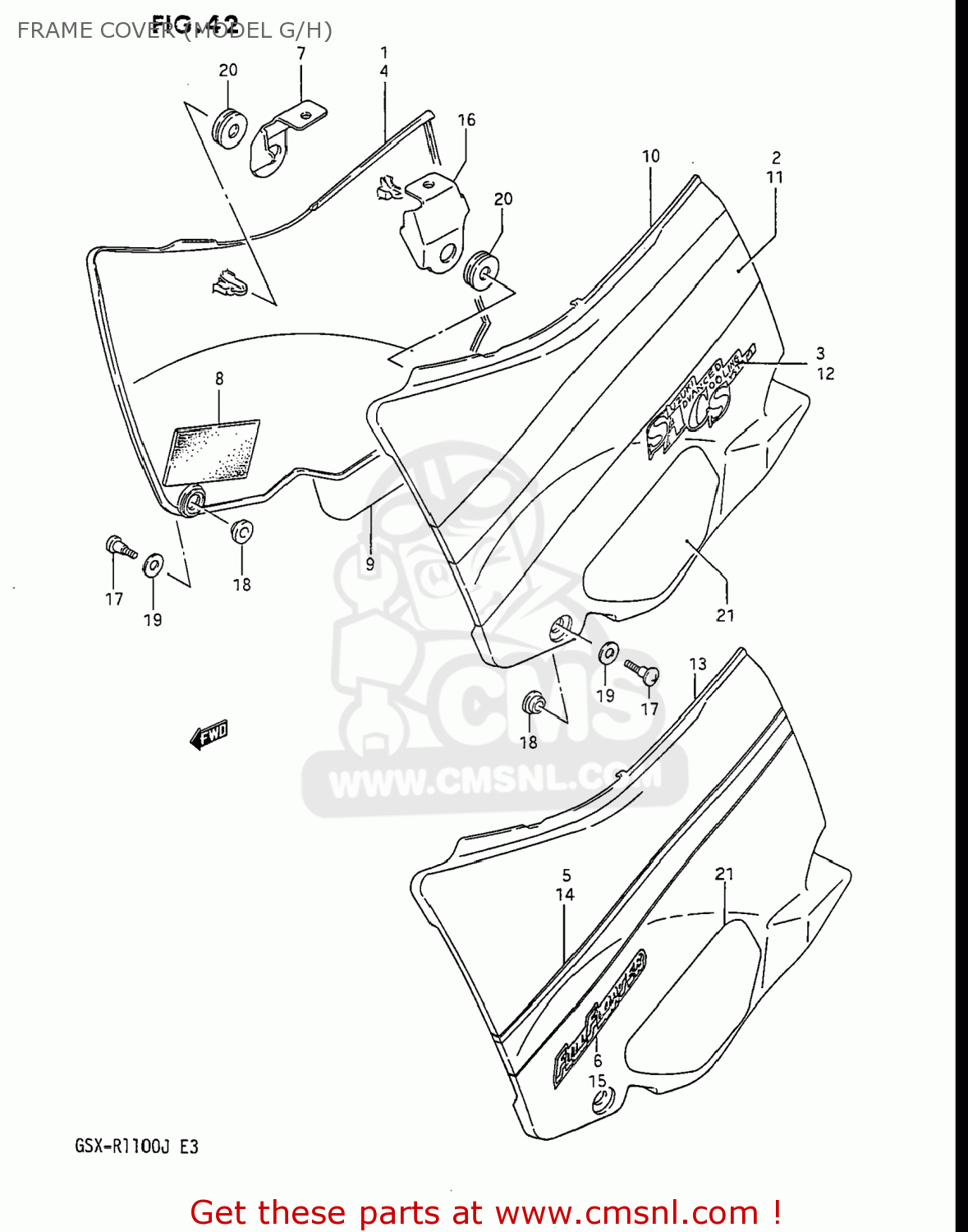

Frame cover (model g/h) diagram GSXR1100 1987 (H) USA (E03)

FRAME COVER (MODEL G/H) GSXR1100 1987 (H) USA (E03)
FRAME COVER (MODEL G/H) GSXR1100 1987 (H) USA (E03)
FRAME COVER (MODEL G/H) GSXR1100 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711006B008JV
ref: 1-1
COVER,FRAME,RIGHT
€ 224.50
1-2
4711006B008JW
ref: 1-2
COVER,FRAME,RIGHT
4711006B008JW
€ 197.50
2-1
6813006B008KA
ref: 2-1
TAPE SET,FRAME COVER,RIGHT
€ 0.00
2-2
6813006B008KB
ref: 2-2
TAPE SET,FRAME COVER,RIGHT
€ 0.00
3
6813127A007VR
ref: 3
EMBLEM
6813127A007VR
€ 13.00
4-1
4711006B109HD
ref: 4-1
COVER COMP,FRAME,RIGHT
4711006B109HD
€ 238.50
4-2
4711006B109HJ
ref: 4-2
COVER COMP,FRAME,RIGHT
4711006B109HJ
€ 238.50
5-1
6813027A309HU
ref: 5-1
TAPE SET,FRAME COVER,RIGHT
€ 13.50
5-2
6813027A309HT
ref: 5-2
TAPE SET,FRAME COVER,RIGHT
€ 16.00
6-1
6823540A1060K
ref: 6-1
EMBLEM
€ 6.00
6-2
6823540A1095K
ref: 6-2
EMBLEM
€ 4.00
7-1
4714106B00
ref: 7-1
47141-06B01
HOLDER,FRAME COVER,RIGHT
€ 4.50
7-2
4714106B01
ref: 7-2
HOLDER,FRAME COVER,RIGHT
€ 4.50
8
4716127A00
ref: 8
RUBBER,FRAME COVER,RIGHT
€ 8.00
9
4726106B00
ref: 9
47261-27A00
PROTECTOR,FRAME COVER
€ 19.00
10-1
4721006B008JV
ref: 10-1
COVER,FRAME,LEFT
€ 170.00
10-2
4721006B008JW
ref: 10-2
COVER,FRAME,LEFT
€ 205.50
11-1
6814006B008KA
ref: 11-1
TAPE SET,FRAME COVER,LEFT
€ 21.00
11-2
6814006B008KB
ref: 11-2
TAPE SET,FRAME COVER,LEFT
€ 0.00
12
6813127A007VR
ref: 12
EMBLEM
6813127A007VR
€ 13.00
13-1
4721006B109HD
ref: 13-1
COVER COMP,FRAME,LEFT
4721006B109HD
€ 160.00
13-2
4721006B109HJ
ref: 13-2
COVER COMP,FRAME,LEFT
4721006B109HJ
€ 205.50
14-1
6814027A309HU
ref: 14-1
TAPE SET,FRAME COVER
€ 12.50
14-2
6814027A309HT
ref: 14-2
TAPE SET,FRAME COVER,LEFT
€ 0.00
15-1
6823540A1060K
ref: 15-1
EMBLEM
€ 6.00
15-2
6823540A1095K
ref: 15-2
EMBLEM
€ 4.00
16-1
4717106B00
ref: 16-1
47171-06B01
HOLDER,FRAME COVER,LEFT
€ 4.00
16-2
4717106B01
ref: 16-2
HOLDER, FRAME COVER LH
€ 4.00
17
0913906044
ref: 17
SCREW(6X23)
0913906044
€ 7.00
18
0832211084
ref: 18
08322-0108A
WASHER
0832211084
€ 1.50
19
0932008043
ref: 19
CUSHION
0932008043
€ 5.50
20
0932008018
ref: 20
CUSHION
0932008018
€ 4.00
21
4726127A00
ref: 21
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
21
4726127A00
ref: 21
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
