SEAT (MODEL G/H)
GSXR1100 1987 (H) USA (E03)

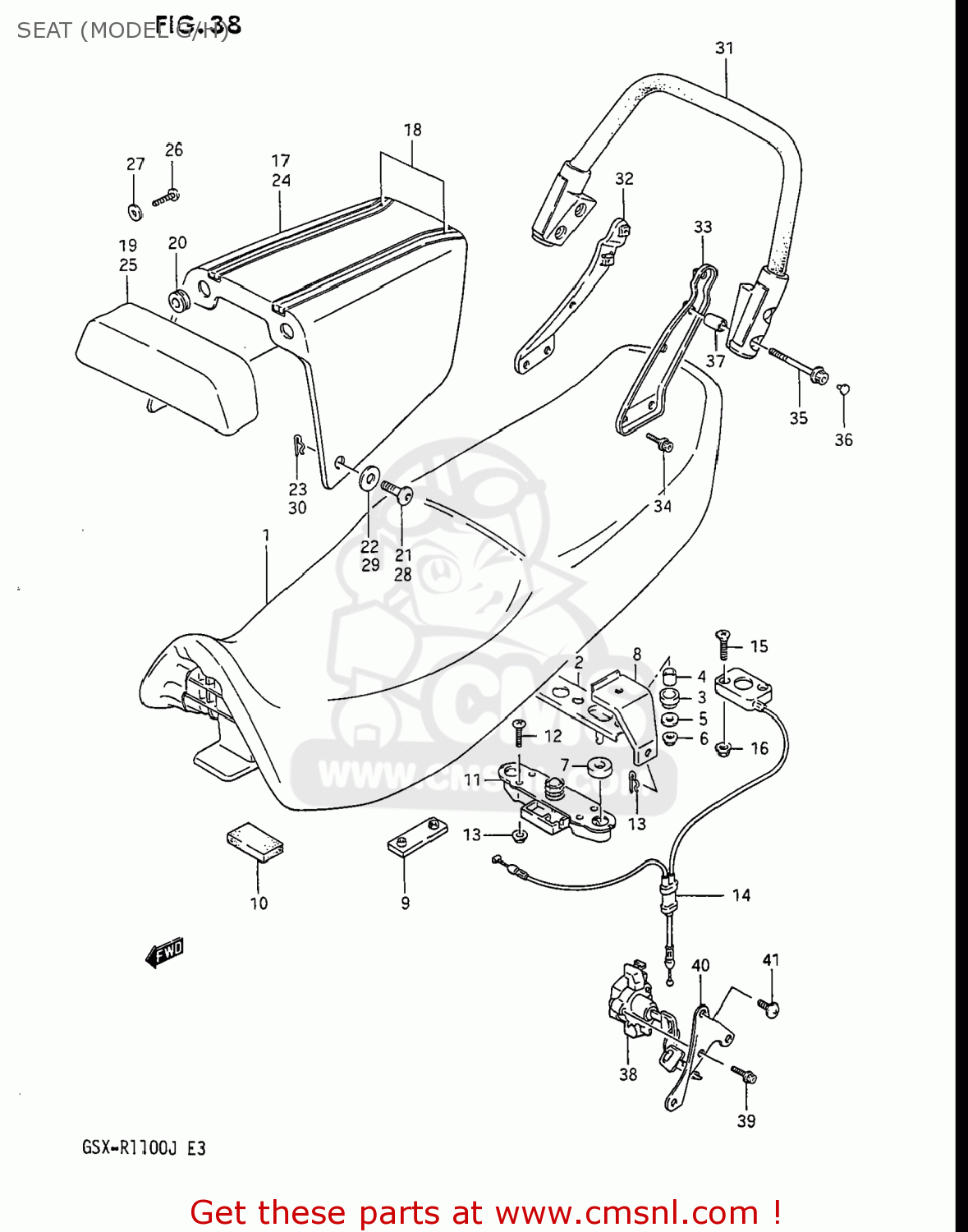

Seat (model g/h) diagram GSXR1100 1987 (H) USA (E03)
SEAT (MODEL G/H) GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510006B1058D
ref: 1-1
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
1-2
4510006B1058E
ref: 1-2
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
1-3
4510006B1058R
ref: 1-3
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
1-4
4510006B1049T
ref: 1-4
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
2
4521006B00
ref: 2
STRIKER,SEAT LOCK
€ 23.00
3
4521506B00
ref: 3
CUSHION
€ 4.50
4
4521606B00
ref: 4
SPACER
€ 2.50
5
0916006020
ref: 5
09160-06066
WASHER
€ 2.00
6
0831616066
ref: 6
08316-1006B
NUT
€ 2.50
7
4521331300
ref: 7
CUSHION
€ 1.50
8
4523006B00
ref: 8
PLATE,SEAT GRIP BAND
€ 8.50
9
0932108009
ref: 9
CUSHION
€ 4.00
10
4525527A00
ref: 10
CUSHION
€ 0.00
11
4522013601
ref: 11
LOCK ASSY,SEAT STRIKER
€ 47.00
12
0211206305
ref: 12
02112-0630A
SCREW
€ 2.50
13
0831626065
ref: 13
08316-2006A
NUT
€ 2.00
14
4522006B00
ref: 14
BRACKET,SEAT SUPPORT RR
€ 72.50
15
0212206255
ref: 15
02122-0625A
SCREW
€ 2.00
16
0831626065
ref: 16
08316-2006A
NUT
€ 2.00
17-1
45550068508JV
ref: 17-1
45550-06851-8JV
BOX SET,SEAT TAIL
€ 323.00
17-2
45550068508JW
ref: 17-2
45550-06851-8JW
BOX SET,SEAT TAIL
€ 307.50
18-1
6865006B008KA
ref: 18-1
TAPE SET,SEAT TAIL BOX
€ 18.50
18-2
6865006B008KB
ref: 18-2
TAPE SET,SEAT TAIL BOX
€ 20.50
19-1
4622027A0058D
ref: 19-1
46220-27A01-58R
BACKREST,SEAT
€ 61.00
19-2
4622027A0058E
ref: 19-2
46220-27A01-58R
BACKREST,SEAT
€ 61.00
20
0932012031
ref: 20
CUSHION
€ 3.00
21
4518606B00
ref: 21
BOLT
€ 5.00
22
0916010079
ref: 22
WASHER(10.1X25X3.2)
€ 3.00
23
0938506001
ref: 23
CLIP
€ 11.00
23
0938506001
ref: 23
CLIP
€ 11.00
24-1
455500686213Z
ref: 24-1
45550-06881
BOX SET,SEAT TAIL (BLACK)
€ 385.00
24-2
455500686234R
ref: 24-2
45550-06881
BOX SET,SEAT TAIL
€ 385.00
25-1
4622027A0158R
ref: 25-1
BACKREST,SEAT
€ 61.00
25-2
4622027A0149T
ref: 25-2
46220-27A01-58R
BACKREST,SEAT
€ 61.00
26
0214206205
ref: 26
02142-0620A
SCREW, CENTER
€ 2.00
27
0916006039
ref: 27
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
28
4518606B00
ref: 28
BOLT
€ 5.00
29
0916110010
ref: 29
WASHER(10X25X3.2)
€ 9.00
30
0938506001
ref: 30
CLIP
€ 11.00
31
4621027A01
ref: 31
46210-27X00-019
HANDLE,PILLION RIDER
€ 99.50
32
4624027A00
ref: 32
PLATE,PILLION HANDLE,R
€ 10.00
33
4625027A00
ref: 33
PLATE COMP,PILLION HANDLE
€ 9.00
34
0712006168
ref: 34
07120-06167
BOLT
€ 2.50
35
0910608061
ref: 35
07120-0860B
BOLT
€ 4.50
36
0925006008
ref: 36
CAP(OD:10)
€ 3.00
37
0918008125
ref: 37
09180-08205
SPACER (8.6X13.8X21.5)
€ 6.50
38
9570027A00KEY
ref: 38
95700-27820
LOCK SET
€ 65.50
39
0712006205
ref: 39
07120-0620B
PLUG ,6X20
€ 3.50
40
4528527A00
ref: 40
BRACKET,SEAT LOCK
€ 3.50
41
0214206125
ref: 41
02142-0612A
SCREW 6X12
€ 2.00
41
0214206125
ref: 41
02142-0612A
SCREW 6X12
€ 2.00
