FRAME
GSXR1100 1987 (H) USA (E03)

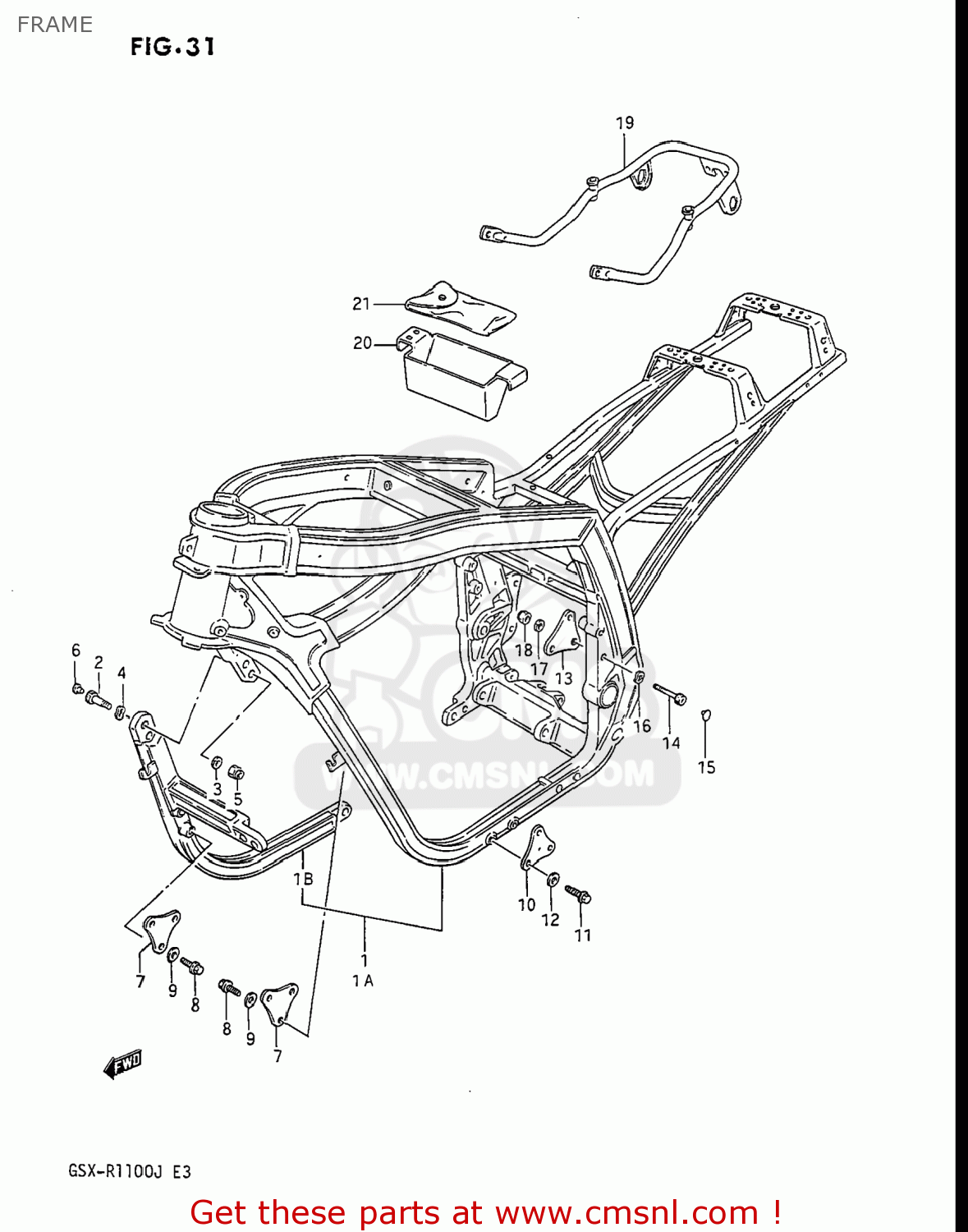

Frame diagram GSXR1100 1987 (H) USA (E03)
FRAME GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
4110006880
ref: 1A
FRAME SET
€ 3,517.00
1B
4114006B50
ref: 1B
TUBE COMP,DOWN,RIGHT
€ 360.00
1-1
4110006841
ref: 1-1
41100-06861
FRAME
€ 3,512.50
1-2
4110006861
ref: 1-2
FRAME SET
€ 3,512.50
2
0910610028
ref: 2
07130-10357
BOLT
€ 3.50
3
0916010013
ref: 3
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
4
0916410005
ref: 4
09164-10010
WASHER
€ 6.50
5
0915910027
ref: 5
NUT
€ 3.00
6
4357534500
ref: 6
CAP
€ 1.50
7
4191106B00
ref: 7
PLATE,ENGINE MOUNTING
€ 9.00
8
0151708258
ref: 8
01550-08257
BOLT
€ 2.50
9
0916008010
ref: 9
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
10
4192106B00
ref: 10
PLATE,ENGINE MOUNTING
€ 10.50
11
0711008408
ref: 11
07130-08407
BOLT
€ 3.50
12
0916008010
ref: 12
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
13
4193106B01
ref: 13
PLATE,ENGINE MOUNTING
€ 9.00
14
0711008458
ref: 14
07130-08457
BOLT, RH
€ 3.00
15
4157504A00
ref: 15
CAP,ENGINE MOUNTING
€ 2.00
16
0916408015
ref: 16
WASHER
€ 3.00
17
0832131087
ref: 17
08321-01087
WASHER,LOCK
€ 2.00
18
0831931087
ref: 18
NUT
€ 2.50
19-1
4398006B00
ref: 19-1
43980-06B10
GRIP COMP,REAR
€ 81.00
19-2
4398006B01
ref: 19-2
43980-06B10
GRIP COMP,REAR
€ 81.00
20
4743127A01
ref: 20
HOLDER,TOOL
€ 35.50
21
0980000345
ref: 21
09800-21011
TOOL ASSY
€ 50.00
