CRANKCASE
GSXR1100 1987 (H) USA (E03)

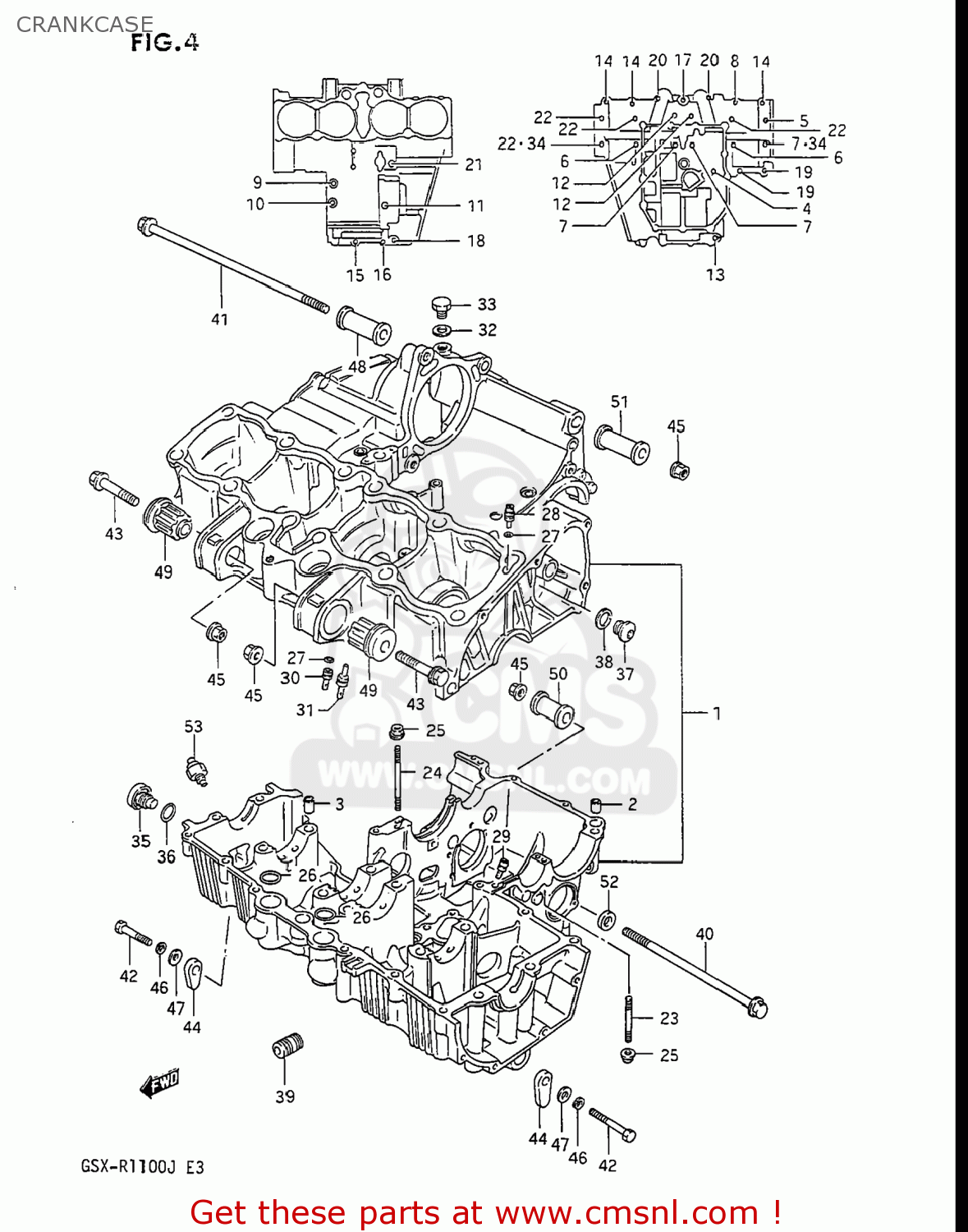

Crankcase diagram GSXR1100 1987 (H) USA (E03)
CRANKCASE GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130006870
ref: 1-1
11300-06878
CRANKCASE SET
€ 2,191.50
1-2
1130006872
ref: 1-2
11301-06810
CRANKCASE SET
€ 2,191.50
1-3
1130006876
ref: 1-3
11301-06812
CRANKCASE SET
€ 2,191.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910306067
ref: 4
BOLT(6X105)
€ 3.50
5
0910308097
ref: 5
BOLT(8X105)
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
€ 3.00
8
0151706354
ref: 8
01550-0635A
BOLT 6X35
€ 2.50
9
0711006405
ref: 9
07130-0640B
BOLT
€ 3.50
10
0711006505
ref: 10
07130-0650B
BOLT
€ 3.00
11
0711006655
ref: 11
07130-0665B
BOLT
€ 4.00
12
0711008555
ref: 12
07130-0855B
BOLT
€ 3.50
13
0151708605
ref: 13
01550-0860A
BOLT 8X60
€ 3.50
14
0151706354
ref: 14
01550-0635A
BOLT 6X35
€ 2.50
15
0151706404
ref: 15
01550-0640A
BOLT
€ 2.00
16
0151706408
ref: 16
01550-06407
BOLT
€ 2.50
17
0151706505
ref: 17
01550-0650A
BOLT 6X50
€ 2.00
18
0151706605
ref: 18
01550-0660A
BOLT ,6X60
€ 2.50
19
0151706558
ref: 19
01550-06557
BOLT
€ 2.50
20
0151706705
ref: 20
01550-0670B
BOLT
€ 2.50
21
0151706805
ref: 21
01550-06803
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
01421-0640A
STUD BOLT
€ 2.50
24
0142106608
ref: 24
01421-0660A
STUD BOLT
€ 2.50
25
0915906017
ref: 25
08319-31067
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949380007
ref: 30
JET,OIL
€ 14.00
31
0949380008
ref: 31
JET,OIL GALLERY
€ 8.50
32
0916812002
ref: 32
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
33
0924712103
ref: 33
PLUG(12X9)
€ 3.50
34
0916808021
ref: 34
GASKET(8.5X17X2.3) (NAS)
€ 3.00
35
0924816003
ref: 35
09248-16007
PLUG
€ 16.50
36
0928017002
ref: 36
O RING(D:2.4,ID:16.8)
€ 3.50
37
0924814004
ref: 37
09248-14010
PLUG
€ 5.00
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
€ 2.50
39
1659106B00
ref: 39
16591-06B01
UNION,OIL STAND
€ 6.00
40
0910310136
ref: 40
BOLT(10X180)
€ 11.50
41
0910310137
ref: 41
BOLT(10X255)
€ 10.00
42
0110710558
ref: 42
01500-1055A
BOLT 10X55
€ 3.50
43
0151710558
ref: 43
01550-10557
BOLT 10X55
€ 3.00
44
0915910020
ref: 44
NUT
€ 7.50
45
0915910058
ref: 45
09159-10115
NUT
€ 4.00
46
0832121107
ref: 46
08321-01107
WASHER,LOCK,10
€ 2.00
47
0832211107
ref: 47
08322-01107
WASHER
€ 2.50
48
1161306B00
ref: 48
SPACER,ENGINE MOUNT (L:
€ 17.00
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
€ 26.00
50
1161106B01
ref: 50
11610-20C00
SPACER,ENGINE MOUNT
€ 10.00
51
1161206B00
ref: 51
SPACER,ENGINE MOUNT (L:
€ 16.50
52
1161236A00
ref: 52
SPACER
€ 2.50
53
3782034200
ref: 53
37820-33D10
SWITCH ASSEMBLY
€ 29.00
